Slide Limit Switch

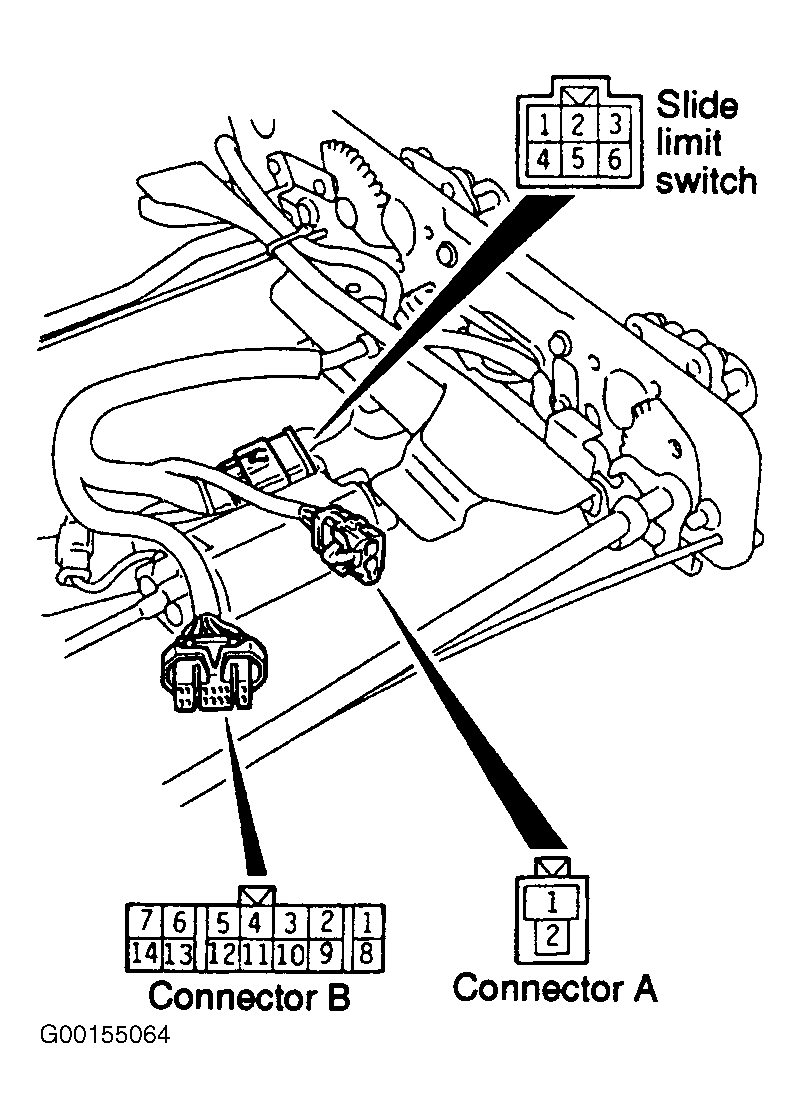

- Disconnect slide limit switch at the connector and connect an ohmmeter between the terminals. See Figure
.
- Operate slide limit switch to check for continuity between the terminals. See Figure
.
- If there is any malfunction, replace the power seat adjuster assembly.
