Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module (BCM) | Behind right kick panel |

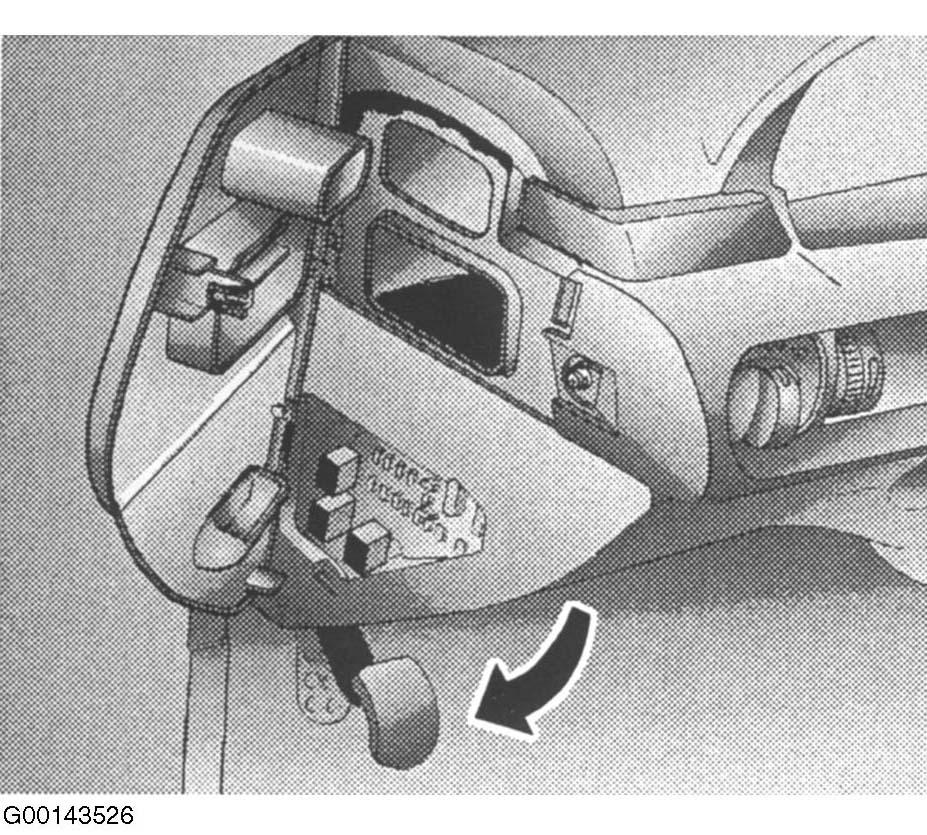

| Junction Block | Behind the end cover at the left side of the instrument panel. See Fig 1 . |

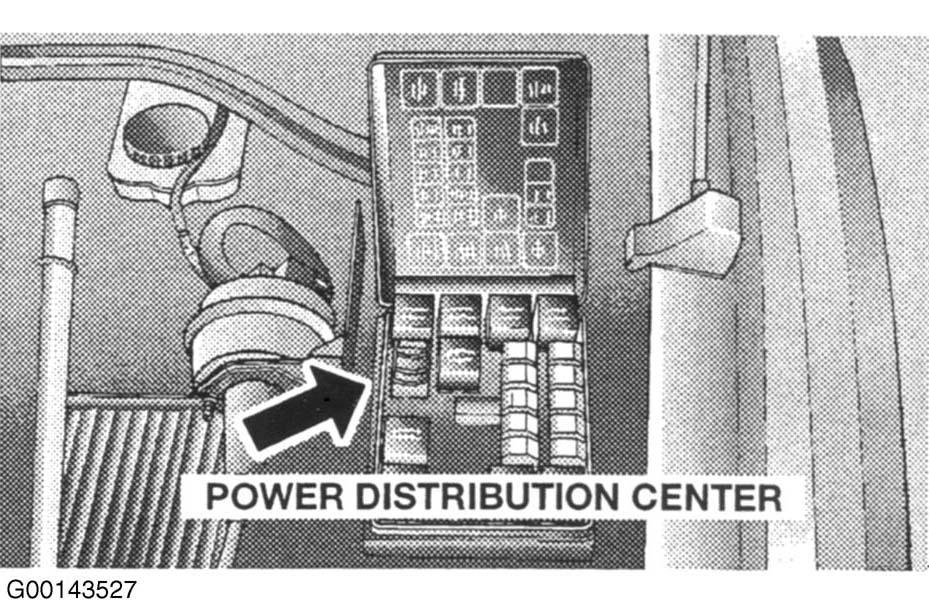

| Power Distribution Center (PDC) | In the engine compartment. See Fig 2 . |
| Power (Remote Amplifier) | Behind trim panel in left side of trunk |
| Rear Window Defogger Amplifier | In right rear quarter panel |
