Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

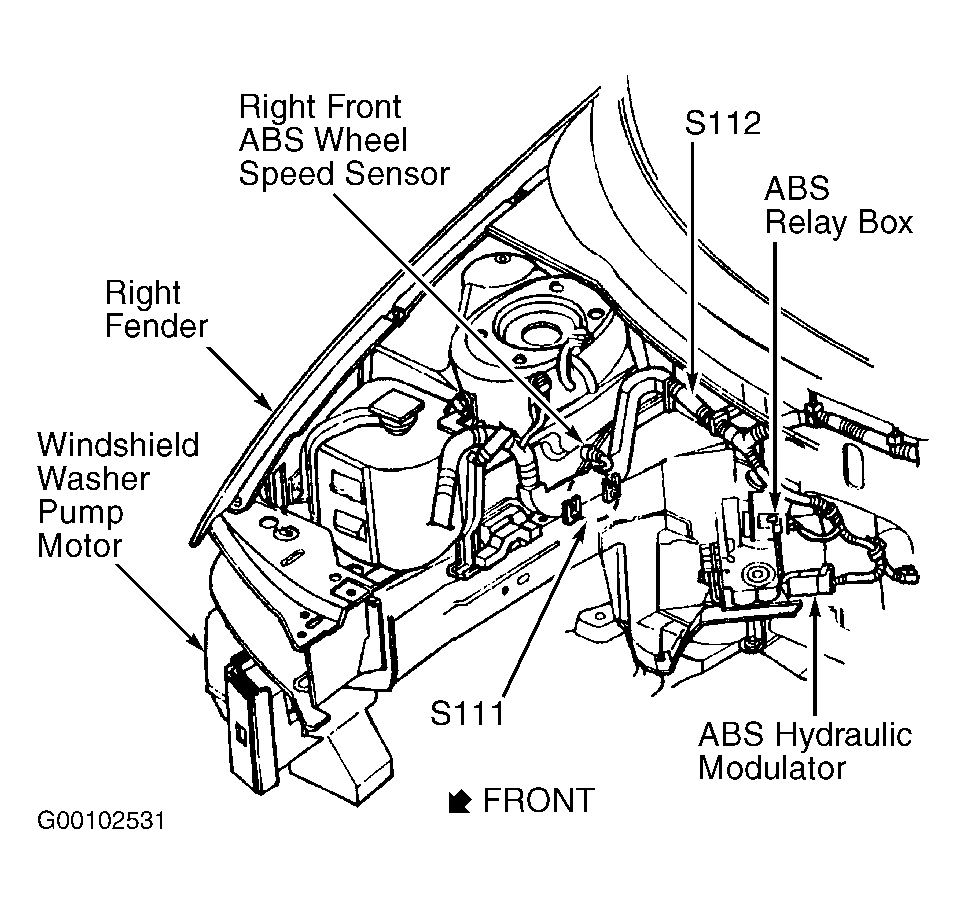

Fig 1: Right Side Of Engine Compartment

Fig 2: Left Side Of Engine Compartment

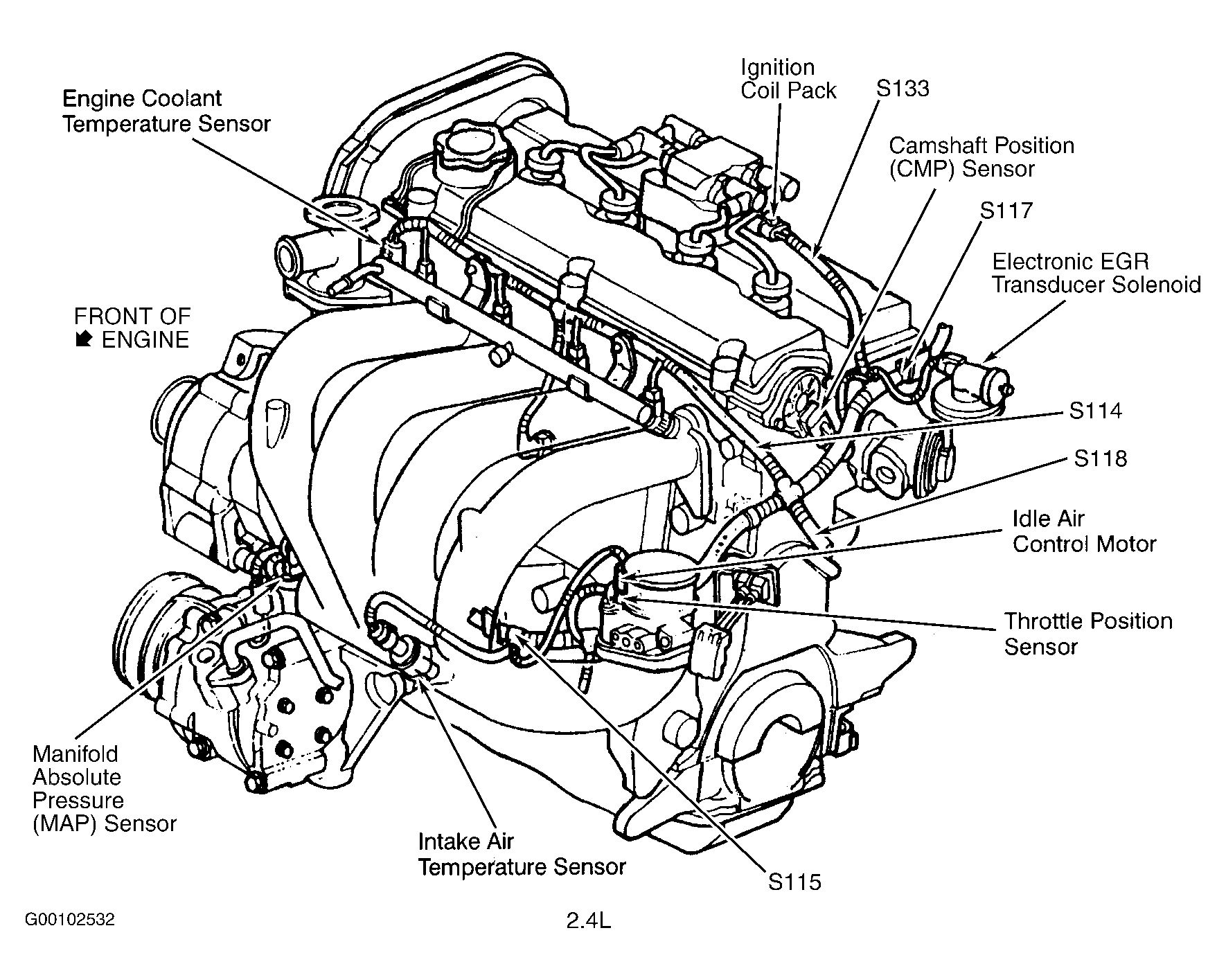

Fig 3: Engine (2.4L)

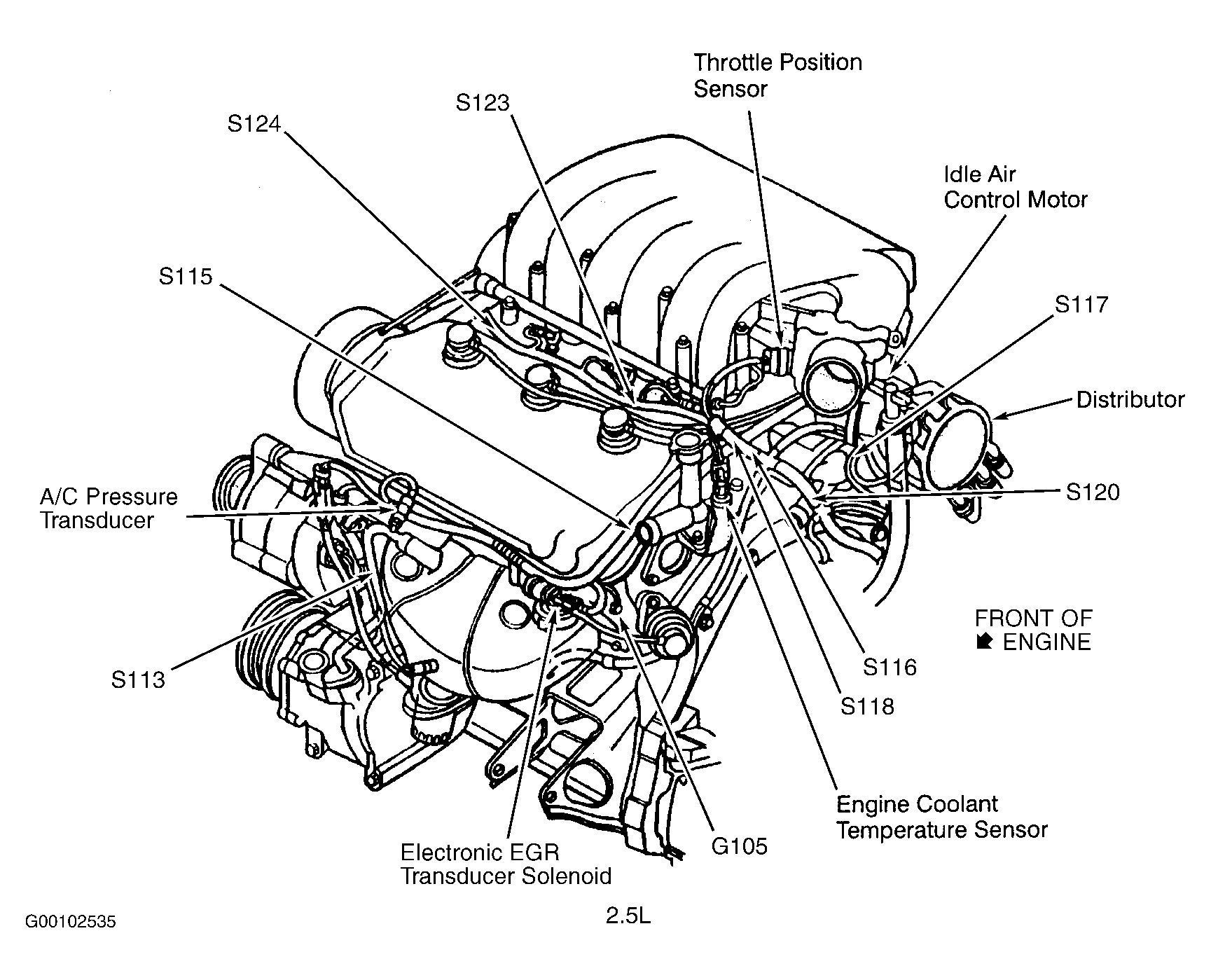

Fig 4: Engine (2.5L)

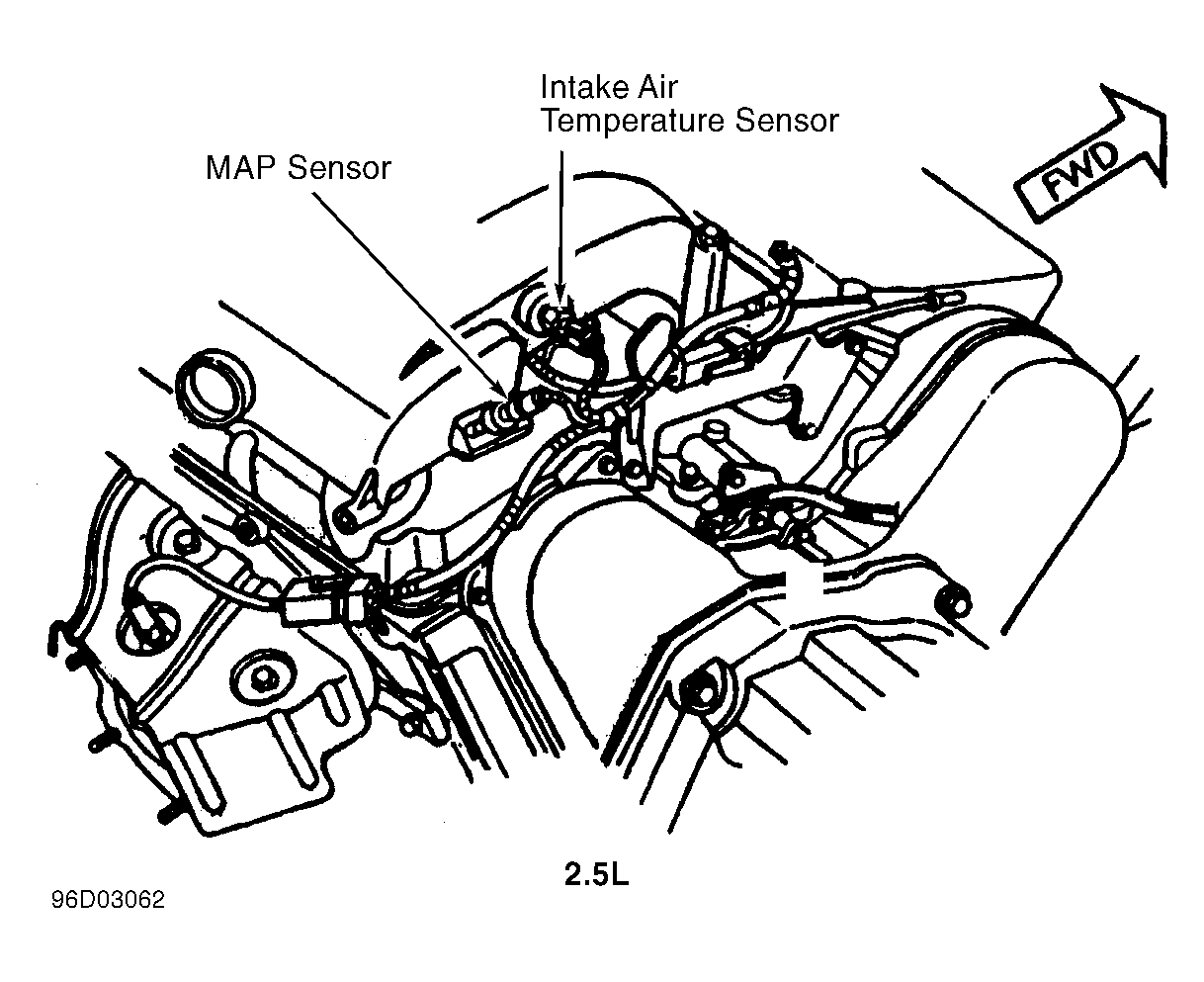

Fig 5: Engine (2.5L)

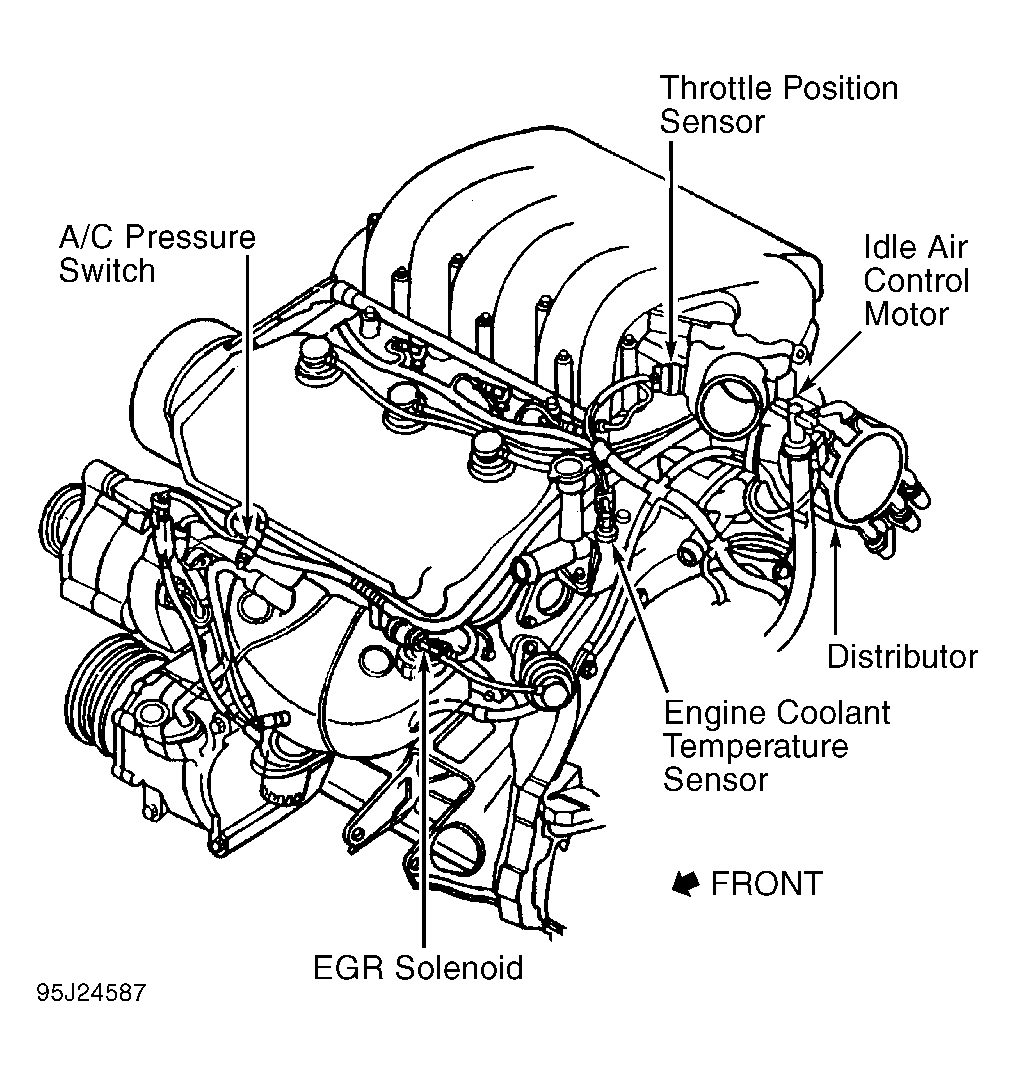

Fig 6: Front Of Engine (2.5L)

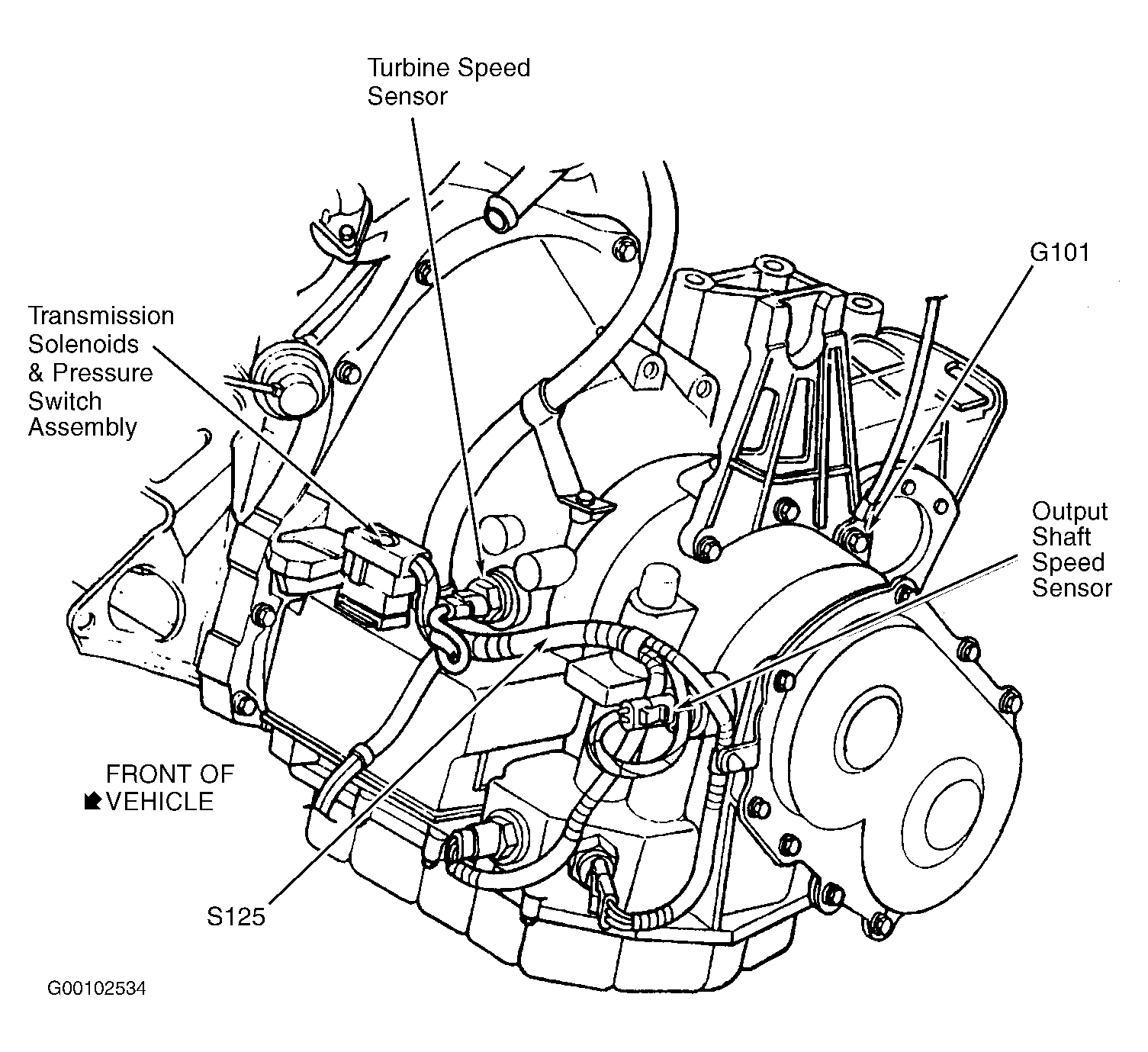

Fig 7: Left Side Of Transaxle
