Junction Block: Relays

The location and identification of junction block fuses and relays can be found on the inside of the instrument panel end cover.

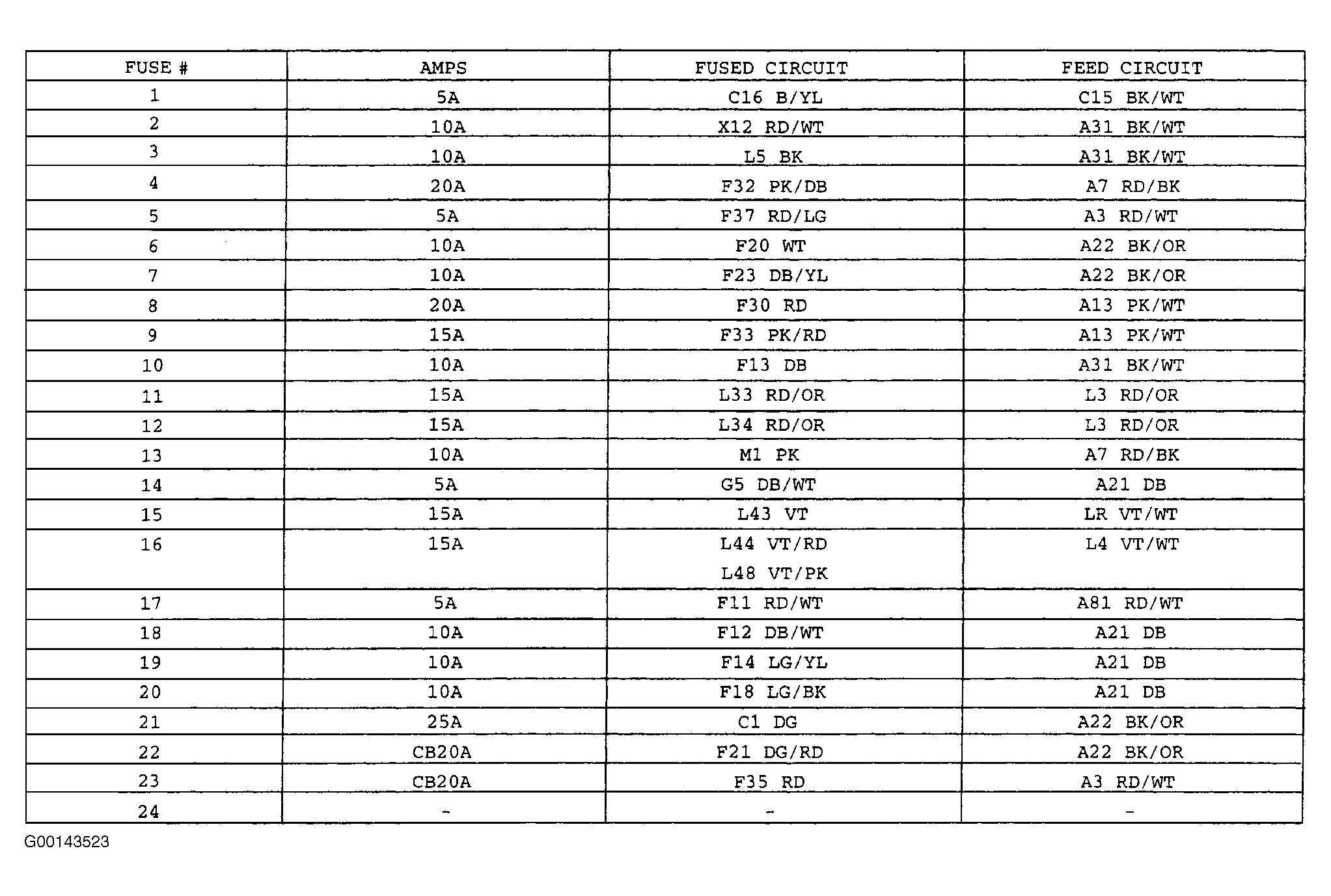

Fig 1: Identifying Junction Block Fuses & Circuits

Courtesy of CHRYSLER CORP.

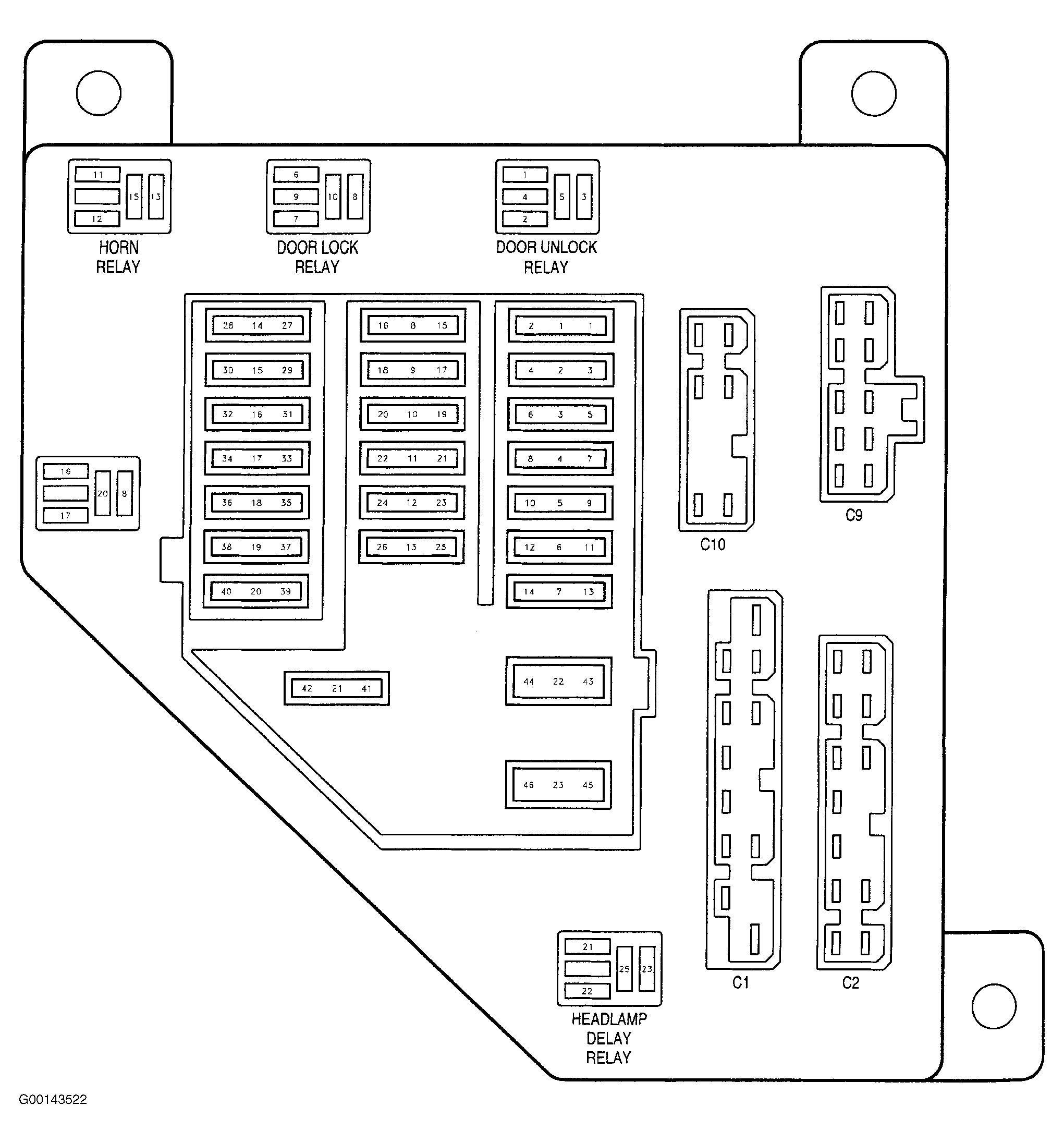

Fig 2: Identifying Junction Block Fuses & Circuit Breakers

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Junction Block Fuse, Relay & Connectors

Courtesy of CHRYSLER CORP.
