Removal & Installation

  1. Remove door trim panel. See DOOR TRIM PANEL  . Separate glass from regulator roller channel. See Fig 1 or Fig 2 . Disconnect power window motor connector.
  2. Loosen window regulator-to-inner door panel bolts. Separate bolt heads from key-hole slots in inner door panel. Remove window regulator through large hole in inner door panel. To install, reverse removal procedure. Adjust window alignment, if necessary. Refer to ADJUSTMENTS  .
Fig 1: Removing Front Window Regulator
G95D35454Courtesy of CHRYSLER CORP.

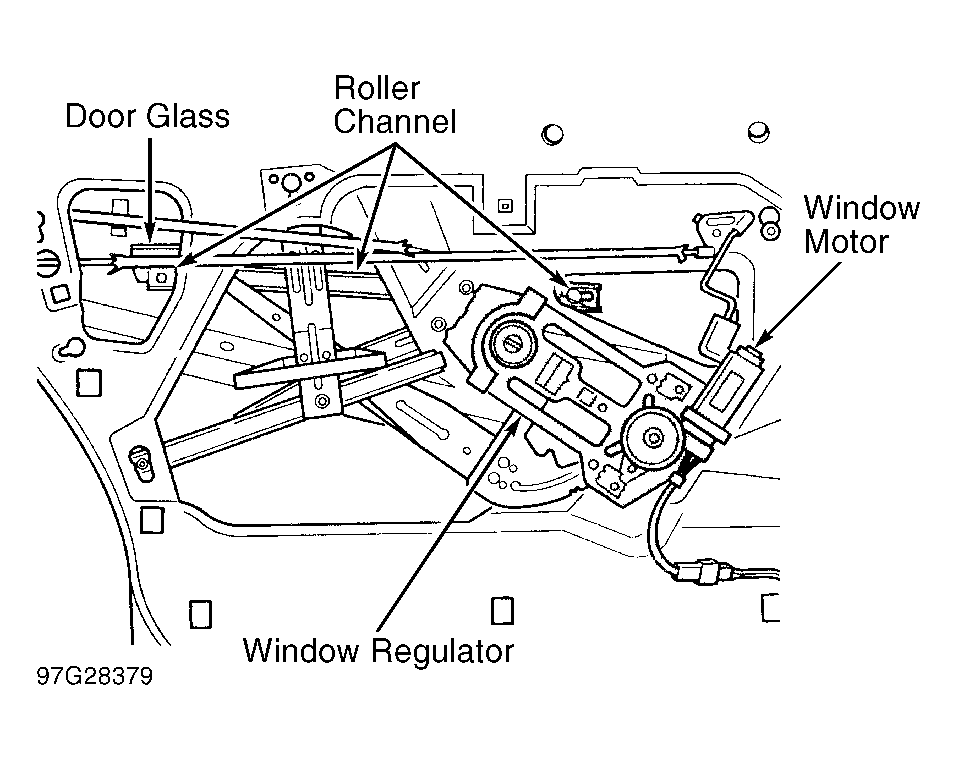

Fig 2: Removing Rear Window Regulator
G97G28379Courtesy of CHRYSLER CORP.
