Mode 2
Diagnostic mode 2 shows if seat/mirror motors and position sensors are connected properly. To activate, press and hold "S" and "2" buttons for 5 seconds. Mode 2 is exited after 5 seconds of switch inactivity or when RKE input to MSM module is grounded. The RKE input is grounded by shifting transmission out of Park. Mode 2 will:
- Adjust seat and mirror motors to midpoint.
- To test switch input and motor output, seat or mirror motors will respond to single axis switch requests.
- When switch is released, motors will automatically return to original position. If sensor for motor is out of range the motor will not return to original position. This test checks integrity of sensor and motor outputs. For circuit descriptions see appropriate CONNECTOR TERMINAL IDENTIFICATION table. See Fig 1 -Fig 3 .

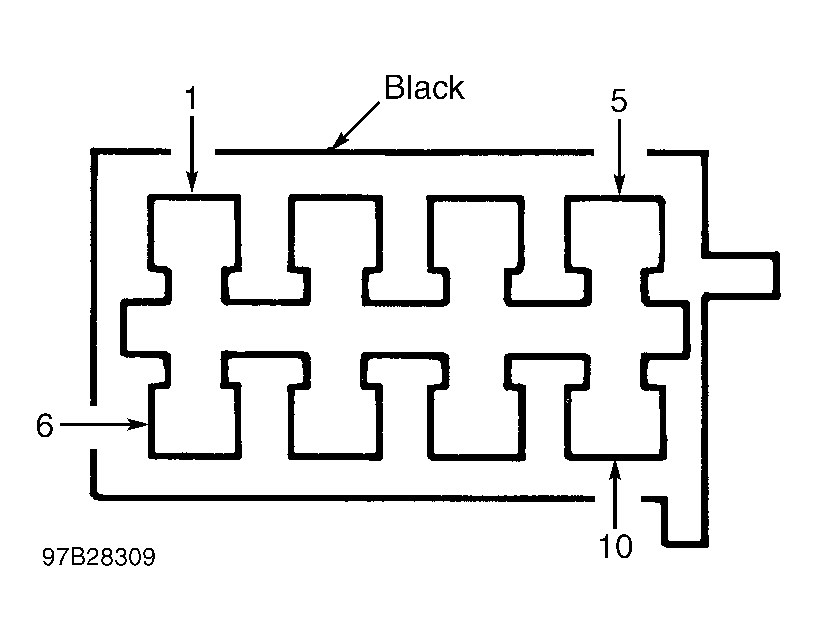

MSM MODULE 10-PIN CONNECTOR TERMINAL IDENTIFICATION
| Terminal No. | Wire Color | Description |
|---|---|---|
| 1 | Red/Lt. Blue | Seat B+ Horizontal Rear |
| 2 | Yellow/Dk. Blue | Seat B+ Horizontal Front |
| 3 | Yellow/White | Seat B+ Rear Riser Up |
| 4 | Gray/Lt. Blue | Recliner B+ Seat Back Front |
| 5 | Yellow/Lt. Green | Seat B+ Front Riser Up |
| 6 | Red/White | Seat B+ Rear Riser Down |
| 7 | Black | Module Ground |
| 8 | Red | Battery Feed To Module |
| 9 | Gray/White | Recliner B+ Seat Back Rear |
| 10 | Red/Lt. Green | Seat B+ Front Riser Down |
MSM MODULE 21-PIN CONNECTOR TERMINAL IDENTIFICATION
| Terminal No. | Wire Color | Description |
|---|---|---|
| 1 | Red/Lt. Green | Seat Horizontal Front Riser Down Switch Input |
| 2 | Red/White | Seat Rear Riser Down Switch Input |
| 3 | Red/Lt. Blue | Seat Horizontal Rear Switch Input |
| 4 | Gray/White | Recliner Rear Switch Input |
| 7 | Lt. Blue/Red | Seat Rear Position Sense (UP/Down) |
| 8 | Brown | Seat Front Position Sense (UP/Down) |
| 10 | Brown/Red | Seat & Recliner Position Sense Ground |
| 11 | Red | Seat & Recliner Switch PTC Resistive Feed |
| 12 | Yellow/Lt. Green | Seat Front Riser Up Switch Input |
| 13 | Yellow/White | Seat Rear Riser Up Switch Input |
| 14 | Yellow/Lt Blue | Seat Horizontal Front Switch Input |
| 15 | Gray/Lt. Blue | Recliner Front Switch Input |
| 17 | Lt. Blue | Recliner Position Sense (For/Aft) |
| 18 | Violet/Red | Seat Horizontal Position Sense (For/Aft) |
| 20 | Brown/Red | Seat & Recliner Position Sense + Feed |

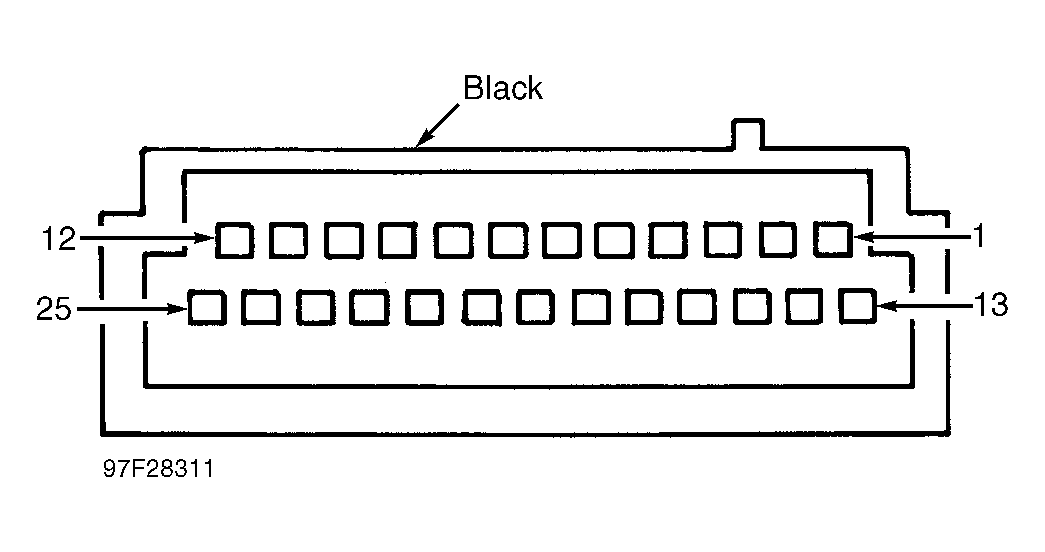

MSM MODULE 25-PIN CONNECTOR TERMINAL IDENTIFICATION
| Terminal No. | Wire Color | Description |
|---|---|---|
| 1 | White/Red | Left Mirror Rheostat Sense Ground |
| 2 | Yellow/Orange | Left Mirror Rheostat Sense Vertical |
| 3 | Dk. Blue/Yellow | Left Mirror Rheostat Sense Horizontal |
| 8 | Pink/Black | Memory Set Switch Input |
| 10 | Yellow/Pink | Left Common Mirror Output |
| 11 | Yellow | Left Vertical Mirror Output |
| 12 | Dk Blue/White | Left Horizontal Mirror Output |
| 13 | White/Black | Right Mirror Rheostat Sense Ground |
| 14 | Yellow/Red | Right Mirror Rheostat Sense Vertical |
| 15 | Dk. Green/Red | Right Mirror Rheostat Sense Horizontal |
| 16 | Pink | Battery Feed For Wake-Ups & Recalls |
| 19 | Lt Green/Red | RKE Data Link Input |
| 20 | Pink/Red | Memory Switch "1" Input |
| 21 | Pink/White | Memory Switch "2" Input |
| 23 | White | Right Common Mirror Output |
| 24 | Yellow/Black | Right Vertical Mirror Output |
| 25 | Dk Blue | Right Horizontal Mirror Output |
