Memory Selector Switch

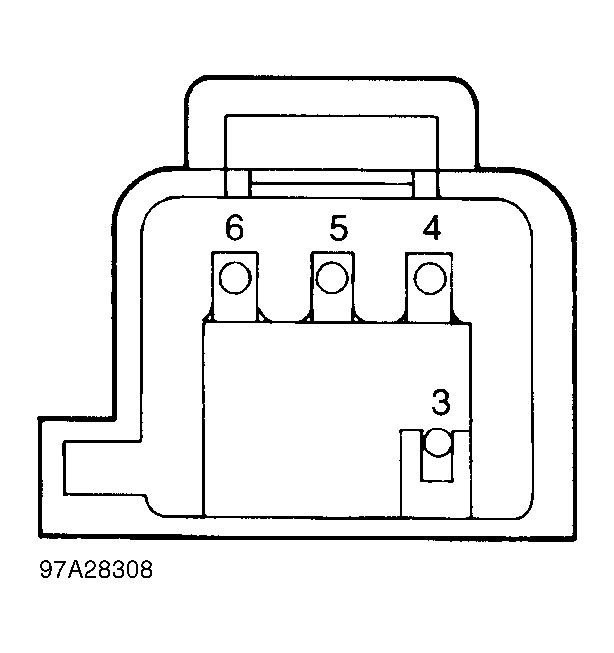

Remove memory selector switch assembly from driver door panel. See MEMORY SWITCHES under REMOVAL & INSTALLATION. Using ohmmeter, test continuity between appropriate switch terminals. See Fig 1 . If continuity is not as specified, replace memory selector switch assembly. See MEMORY SELECTOR SWITCH ASSEMBLY TEST table.
MEMORY SELECTOR SWITCH ASSEMBLY TEST
| Button Depressed (1) | Continuity Between Pins No. | ||
|---|---|---|---|
| "1" | 6 & 3 | ||
| "2" | 4 & 3 | ||
| "S" | 5 & 3 | ||
|
|||
