Inboard/Outboard Adjustment

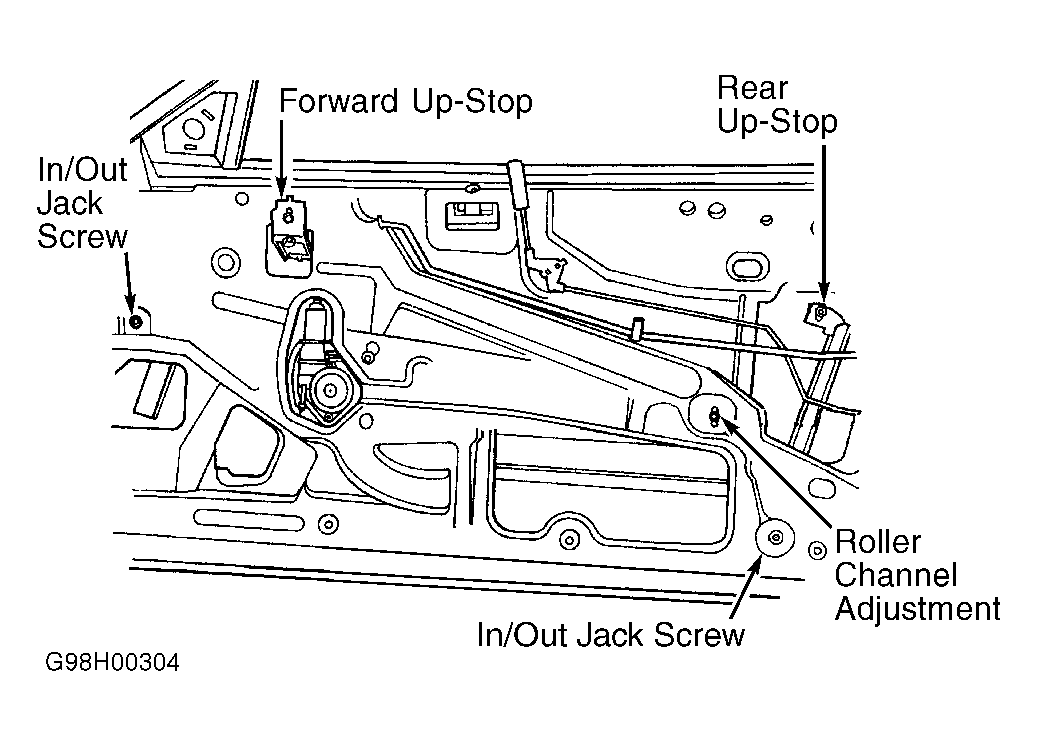

Remove door panel, if not already removed. See DOOR TRIM PANEL under REMOVAL & INSTALLATION. Loosen lower in/out jackscrew nuts. See Fig 1 . Remove weatherstrip only at area being adjusted and measured. Close door and raise window. Using an Allen wrench, rotate jackscrews until in/out position at top edge of window is at proper position. See Figure . Tighten all fasteners. Install door trim panel.
