Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

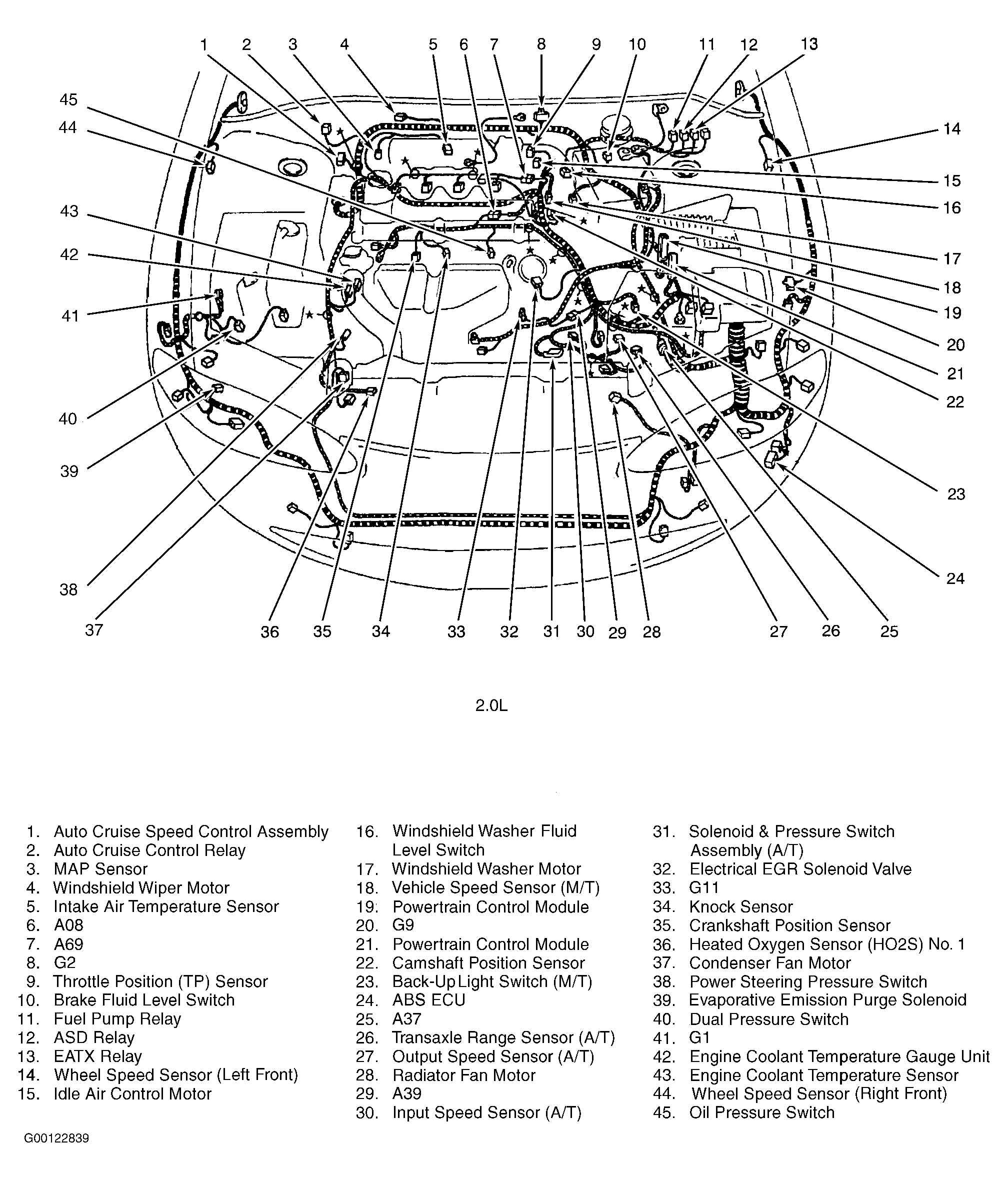

| ABS ECU (2.0L) | At left front corner of engine compartment. See Figure . |

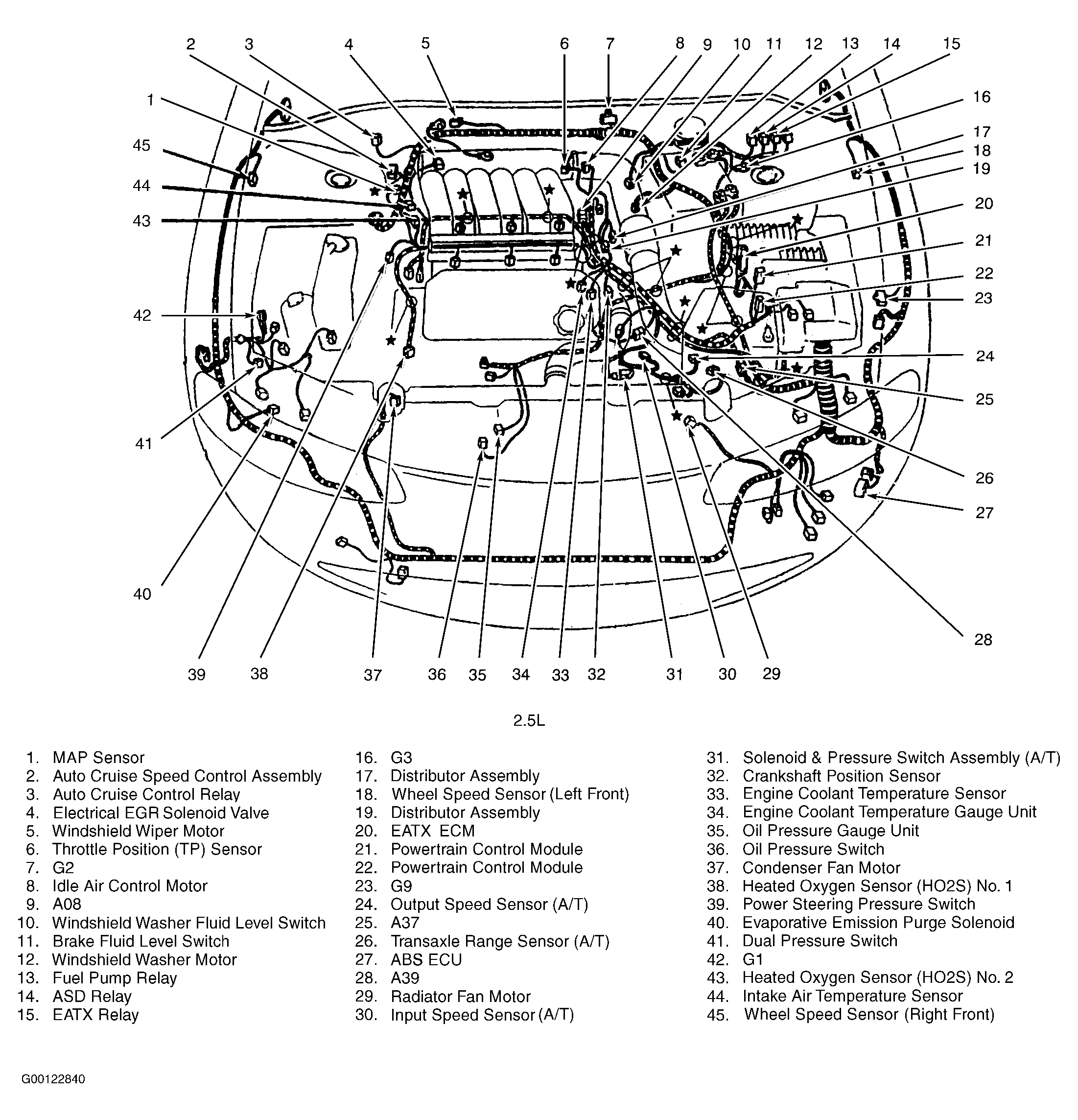

| ABS ECU (2.5L) | At left front corner of engine compartment. See Figure . |

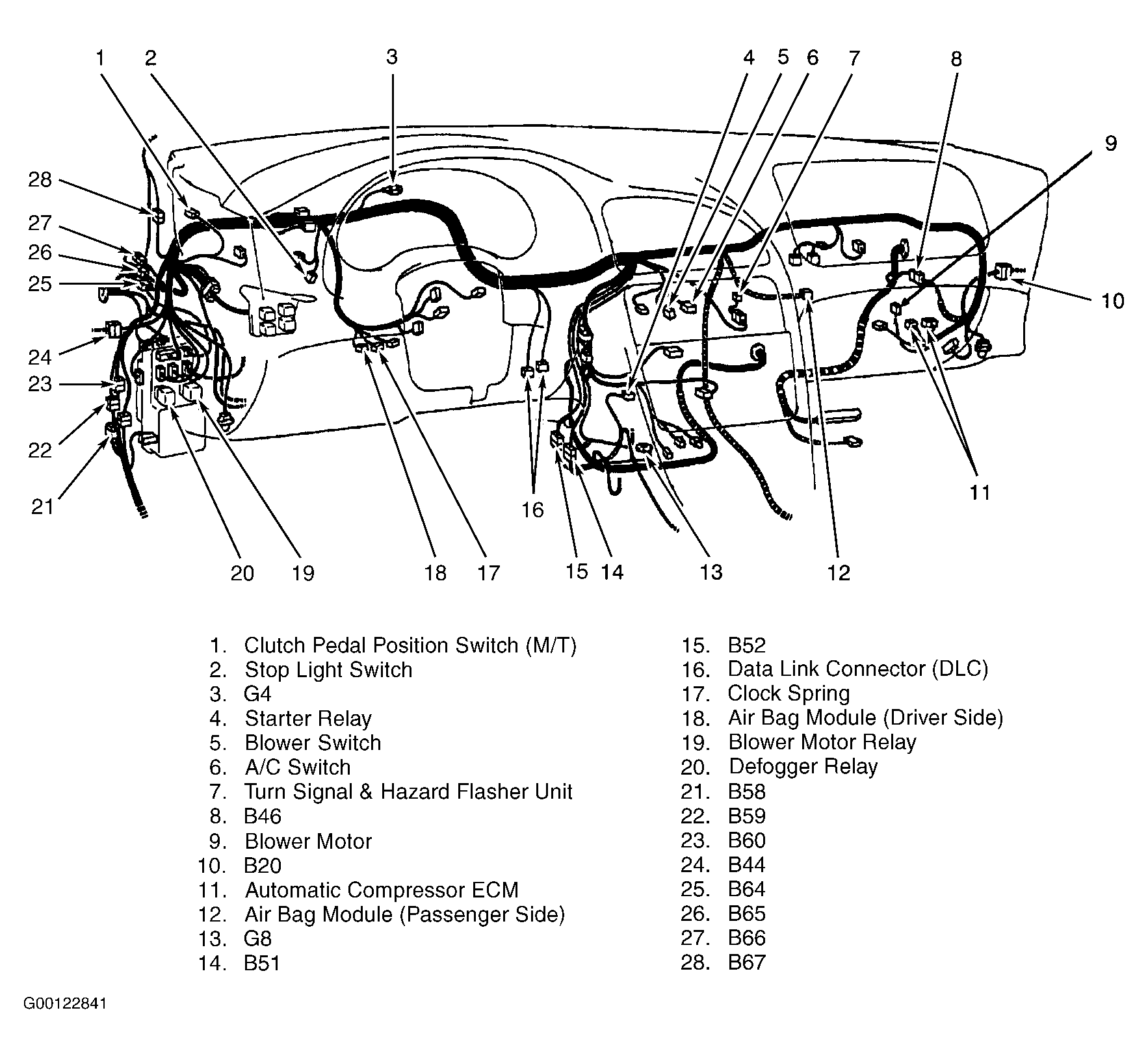

| Air Bag Module (Driver Side) | Center of steering wheel. See Figure . |
| Air Bag Module (Passenger Side) | Above glove compartment. See Figure . |
| Automatic Compressor ECM | Behind glove compartment, passenger side. See Figure . |
| DRL ECU | At left headlamp assembly. |
| EATX ECM (2.0L) | Under center console. |
| EATX ECM (2.5L) | Left side of engine compartment, in front of battery. See Figure . |
| ETACS ECU | On junction block, under left side of dash. |
| Illumination Module | Under center console, near floor. |
| Powertrain Control Module (2.0L) | Left side of engine compartment, in front of battery. See Figure . |
| Powertrain Control Module (2.5L) | Left side of engine compartment, in front of battery. See Figure . |
| Receiver | In left quarterpanel, in front of wheel housing. See Figure . |

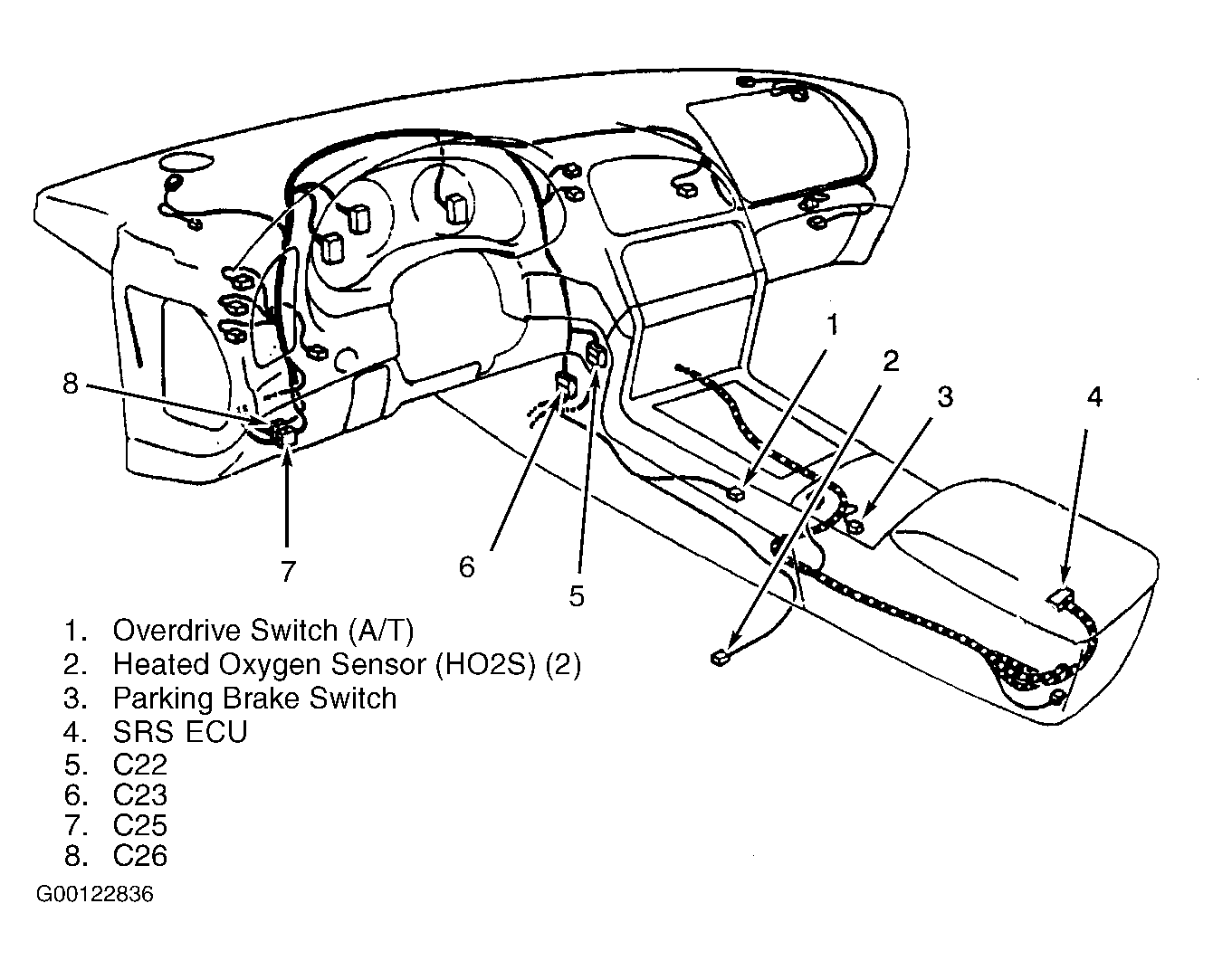

| SRS ECU | Under floor console, behind transmission selector. See Figure . |
| Sun Roof ECU | Above headliner, front part of roof. |
