Power Mirror Switch Test
- Remove power mirror switch. See POWER MIRROR SWITCH R & I under REMOVAL & INSTALLATION. Remove power mirror switch from its mounting position. Disconnect switch from wiring harness.

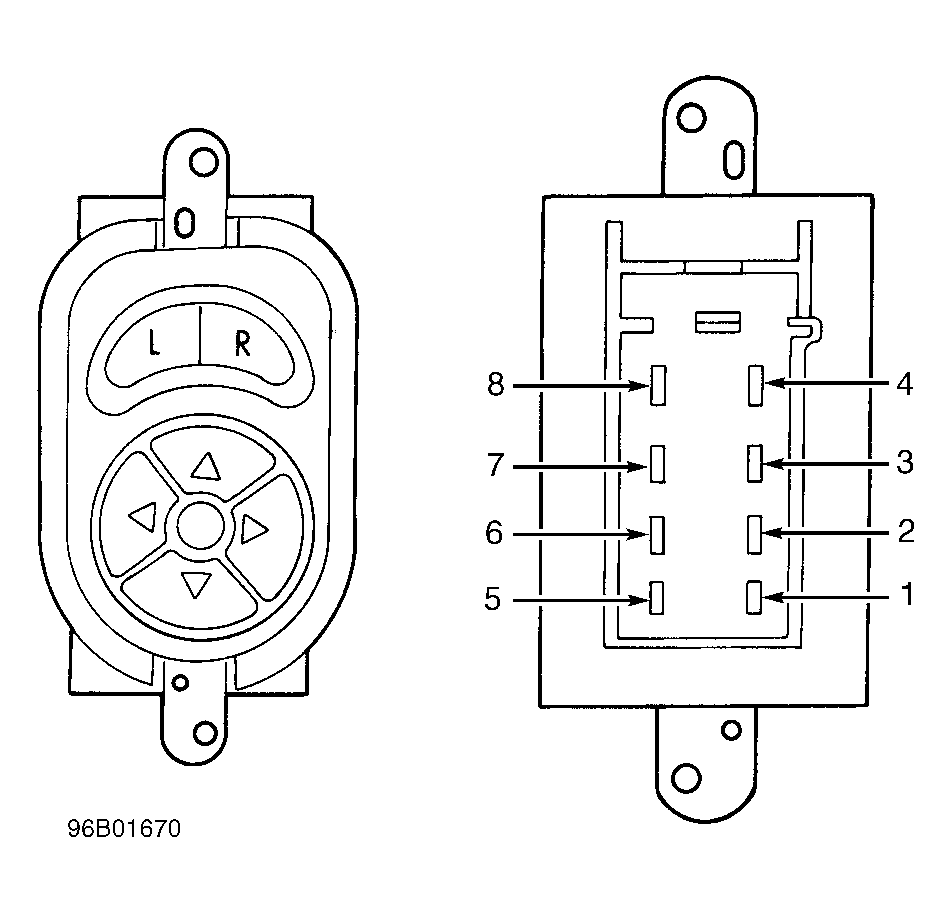

- Place mirror selector in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. Check for continuity between specified switch pins with mirror switch in position indicated. See Fig 1 . If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Mirror Angle | Continuity Between Pins No. |
|---|---|---|
| "L" (Left) | Up | 1 & 5; 2 & 8 |
| " | Down | 1 & 8; 2 & 5 |
| " | Left | 1 & 6; 2 & 7 |
| " | Right | 1 & 7; 2 & 6 |
| "R" (Right) | Up | 1 & 5; 2 & 4 |
| " | Down | 1 & 4; 2 & 5 |
| " | Left | 1 & 6; 2 & 3 |
| " | Right | 1 & 3; 2 & 6 |
