Sun Roof Drive Cable Timing

NOTE: If glass panel was not fully closed when motor was removed, sun roof glass panel must be timed prior to installing new motor. A gage comes with new motor.

1. Remove sun roof glass panel. See SUN ROOF GLASS PANEL  under REMOVAL & INSTALLATION.
2. Set gage in track, near rear of opening, between driver slide and bracket. See Fig 1 .
3. Move driver slide into alignment with gage. See Fig 1 .
4. Repeat procedure for other side. Install motor.

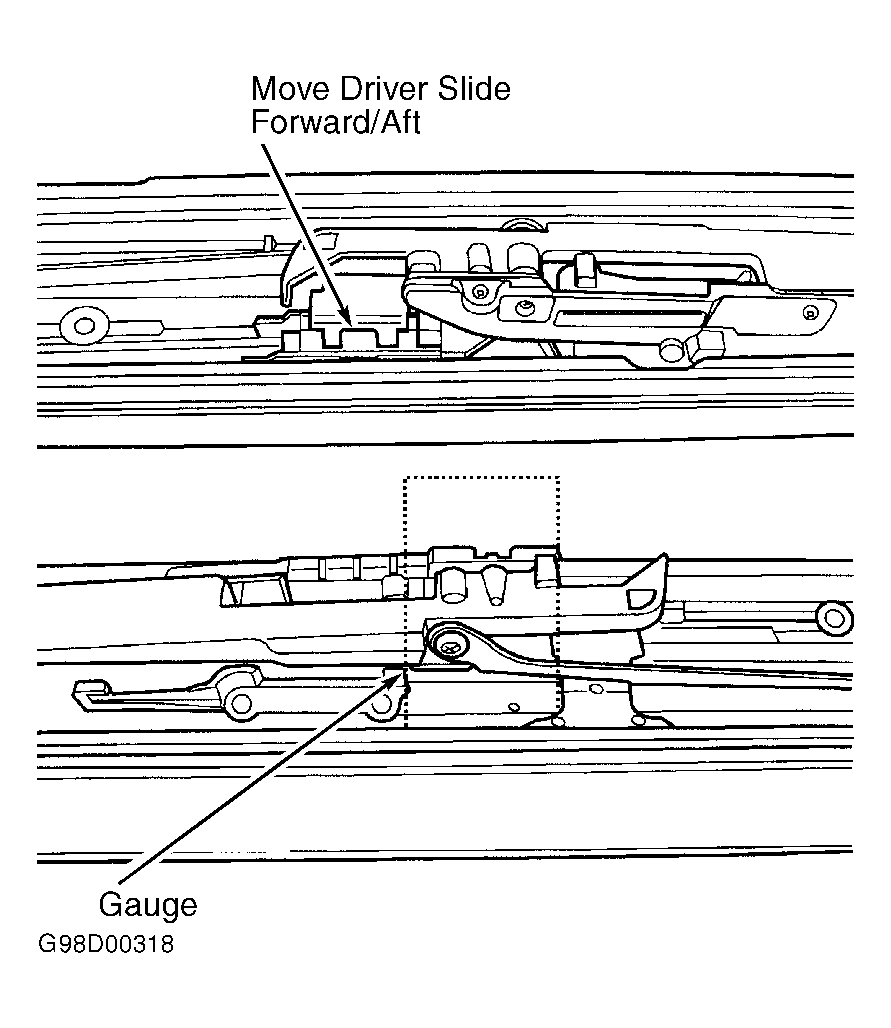

Fig 1: Timing Sun Roof Drive Cable

Courtesy of CHRYSLER CORP.
