Installation (All)
- To install, ensure fuel line and disconnect fitting are clean. Lubricate fuel line and disconnect fitting with small amount of engine oil. Install disconnect fitting on fuel line until click sound is heard.CAUTION: After installing fuel line, ensure fuel line is secured in place by pulling on fuel line.

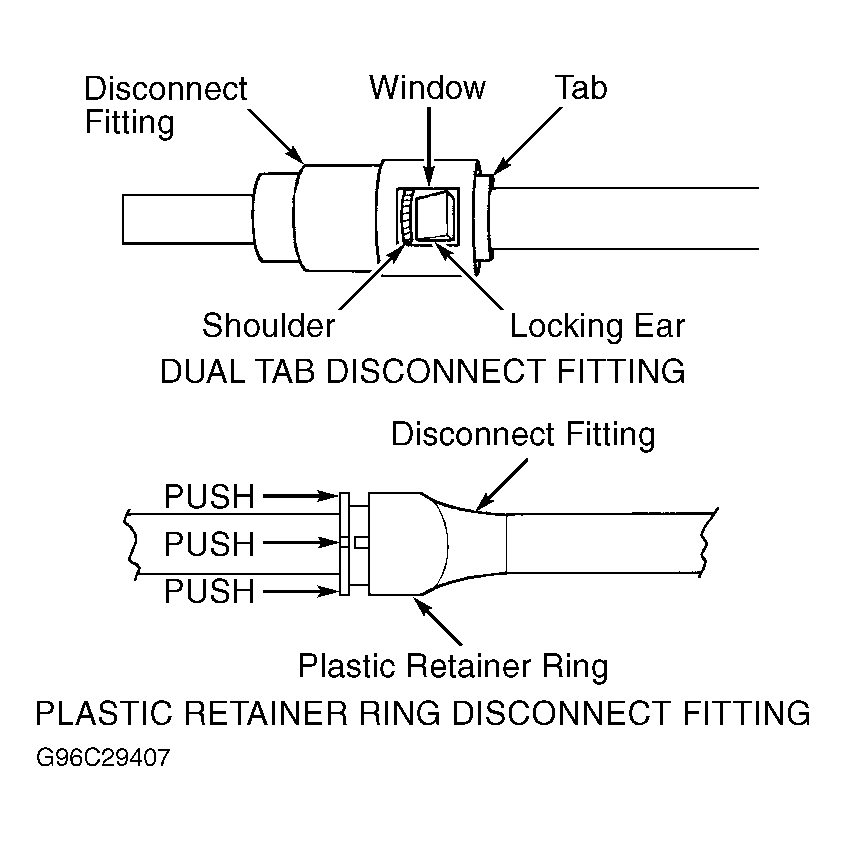

- Pull on fuel line and disconnect fitting to ensure components are properly locked together. See Fig 1 and Fig 2 . Reconnect negative battery cable.
- Check for fuel leaks by starting engine or by pressurizing fuel system. Fuel system may be pressurized by using scan tool manufacturer's instructions and scan tool connected to Data Link Connector (DLC) to perform ASD FUEL SYSTEM TEST. When performing ASD FUEL SYSTEM TEST, the ASD relay and fuel pump relay remain energized for 7 minutes unless test is stopped or ignition switch is turned to OFF position.
