Fluid Cooler: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Using a siphon pump, remove as much power steering fluid as possible from the power steering fluid reservoir.
Raise vehicle using a frame contact type hoist or supported using jack stands. See JACKING & HOISTING .
300M only - The front fascia will require removal to access the power steering cooler. See REMOVAL .
Remove the hose clamp from the lower hose at the power steering fluid cooler (Fig 1 ). Remove the lower hose from the power steering fluid cooler. Drain remaining power steering fluid from the hoses and the power steering fluid cooler.

Fig 1: Lower Hose At Power Steering Fluid Cooler
Courtesy of DAIMLERCHRYSLER CORP.
Remove the hose clamp and upper hose (Fig 2 ) from the power steering fluid cooler.

Fig 2: Upper Hose At Power Steering Fluid Cooler
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 6 clips (Fig 3 ) mounting the air dam to the radiator lower support.

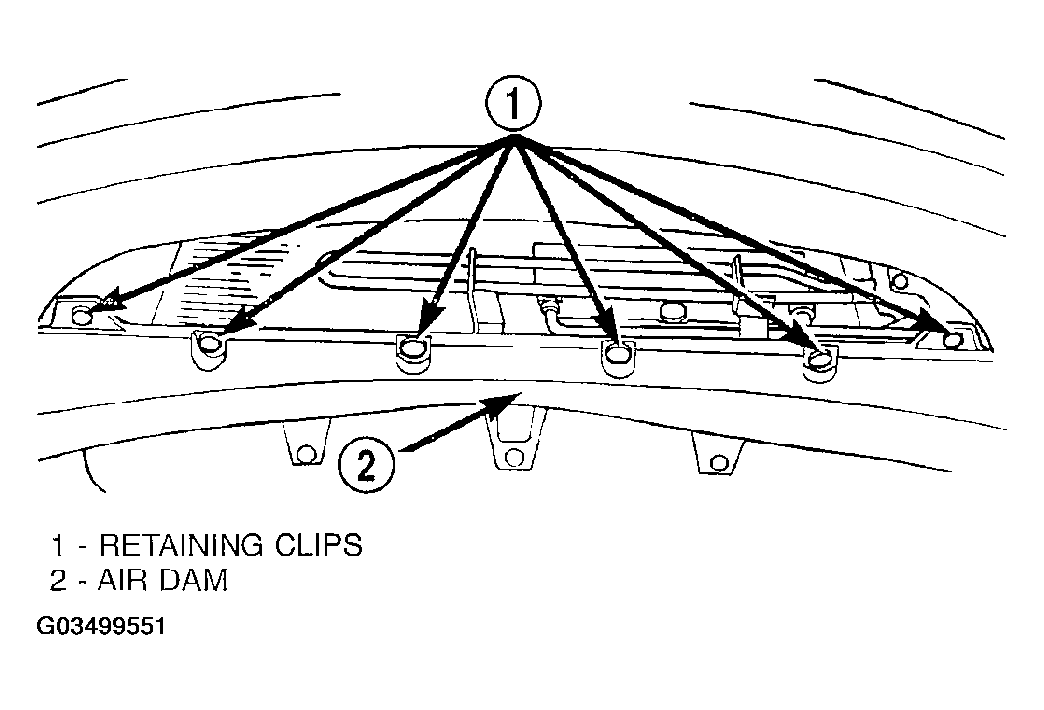

Fig 3: Air Dam Retaining Clips
Courtesy of DAIMLERCHRYSLER CORP.
Remove the 2 nuts (Fig 4 ) attaching the power steering fluid cooler to the radiator lower crossmember.

Fig 4: Cooler Attachment
Courtesy of DAIMLERCHRYSLER CORP.
Remove the power steering fluid cooler from the radiator lower crossmember.
