Check Strap: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise door glass.
  2. Remove door trim panel. (Refer to TRIM PANEL  )
  3. Remove watershield as necessary.
  4. Remove bolt and nut attaching check strap to door end and body.
  5. Remove check strap from vehicle (Fig 1 ).

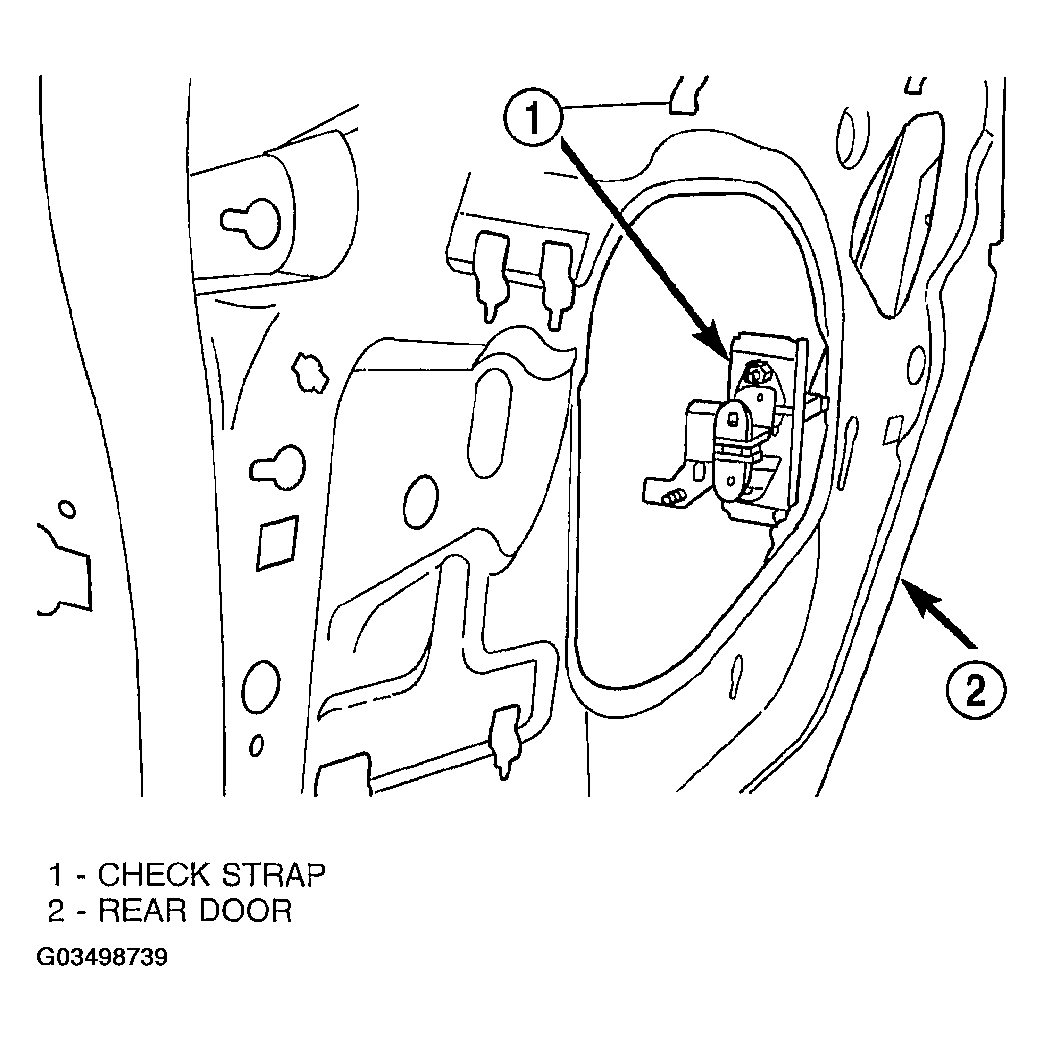

    Fig 1: Rear Door Check Strap
    G03498739Courtesy of DAIMLERCHRYSLER CORP.
