B-Pillar Lower Trim: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seat belt height adjuster knob.
  2. Remove upper B-pillar trim.
  3. Remove bolt attaching seat belt to floor below B-pillar (Fig 1 ).

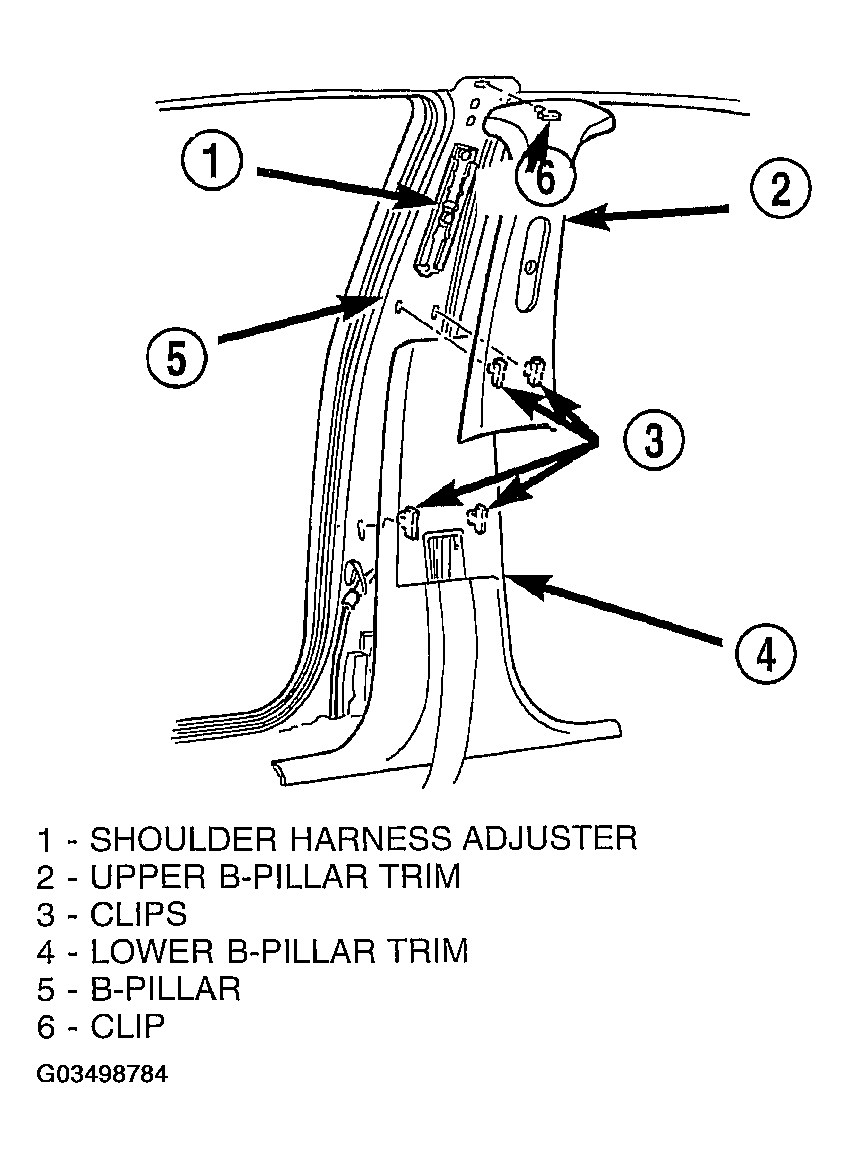

    Fig 1: Removing B-Pillar Lower And Upper Trim
    G03498784Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove access door from above seat belt slot on B-pillar trim.
  5. Disengage clips attaching lower trim to B-pillar.
  6. Slide seat belt through the B-pillar trim.
  7. Remove B-pillar trim from vehicle.
