Removal - Concord

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift knob.
Remove floor console shift bezel (Figure ).
Raise console armrest lid.
Remove screws at top and bottom of cup attaching assembly (Fig 1 ).

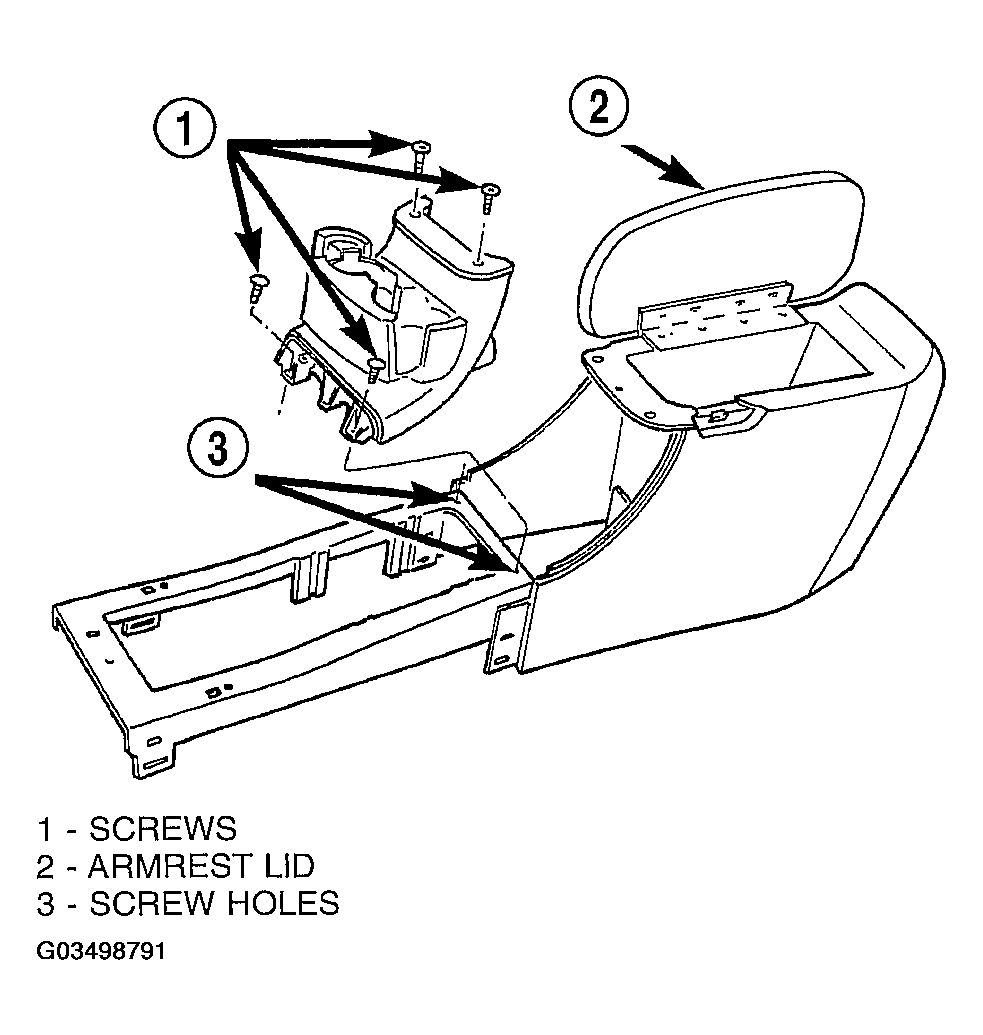

Fig 1: Removing Floor Console Cup Holder Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Lift up and forward to remove assembly.
