Upper Quarter Trim: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

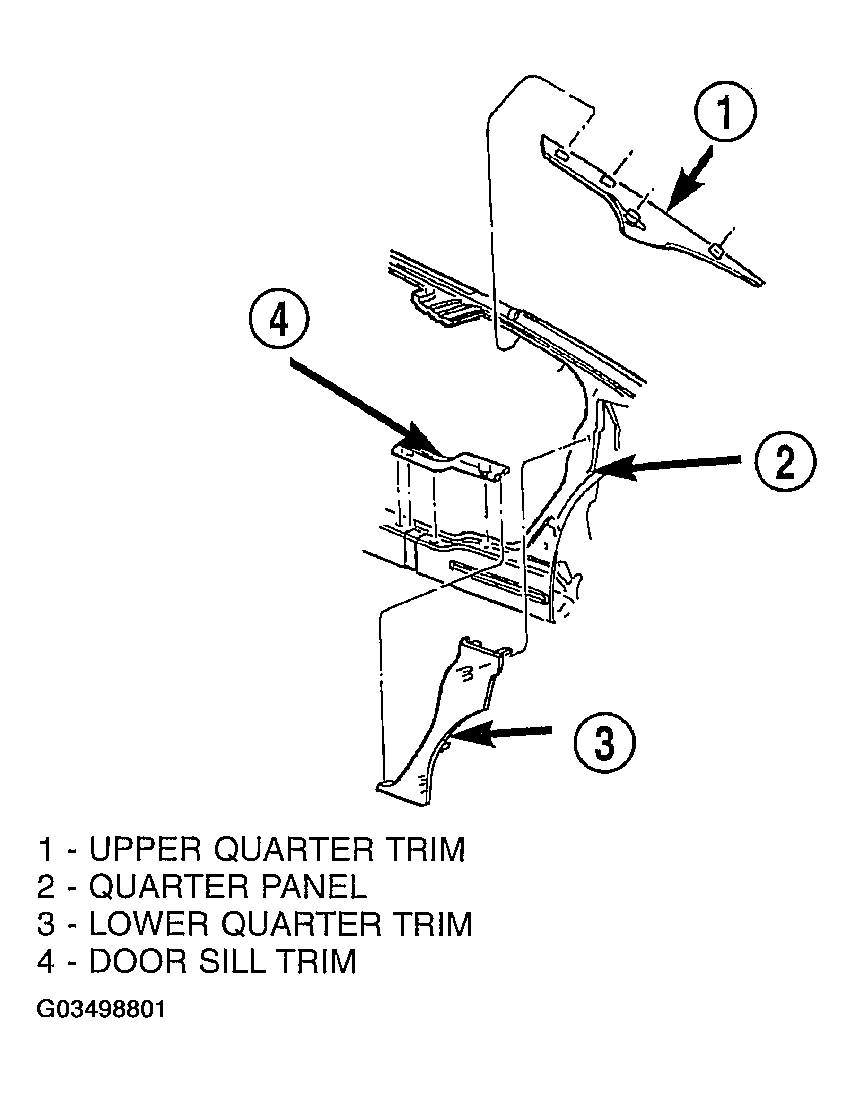

- Disengage clips attaching upper quarter trim to inner quarter panel (Figure
).NOTE: Start at top forward area of trim and pull inboard.
- Remove seat cushion.
- Remove lower seat belt anchor nut.
- Slide seat belt through trim panel.
- Remove upper quarter trim from vehicle.
