Removal - 50/50 Split
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Move the driver seat full forward and the passenger seat full rearward.

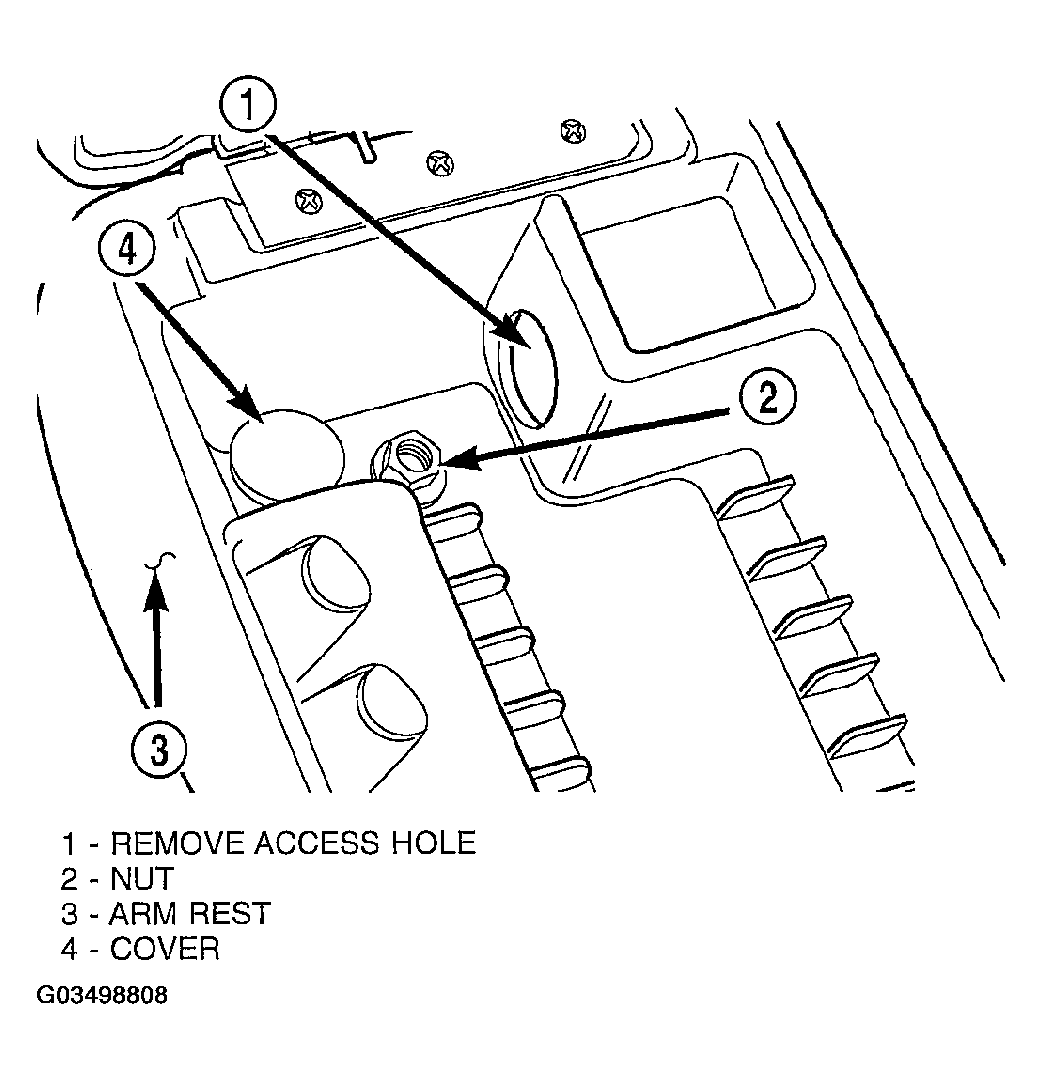

- Open arm rest lid (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove access retaining nut cover.
- Remove arm rest retaining nut.
- Slide arm rest off of bracket (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
