Front Seat Cushion: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DISCONNECT AND ISOLATE THE NEGATIVE BATTERY CABLE REMOTE TERMINAL BEFORE BEGINNING ANY FRONT SEAT REMOVAL OR INSTALLATION PROCEDURE. THIS WILL DISABLE THE AIRBAG SYSTEM. FAILURE TO DISCONNECT THE BATTERY COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
WARNING: ONCE THE NEGATIVE CABLE IS DISCONNECTED WAIT FOR 2 MINUTES BEFORE REMOVING ANY AIRBAG SYSTEM COMPONENTS.
  1. Remove track and recliner assembly (Refer, to SEAT TRACK & RECLINER ASSEMBLY  ).
  2. Remove front seat back (Refer to FRONT SEAT BACK  ).
  3. Disconnect seat cushion heater element connector, if equipped.
  4. Disconnect wire harness fasteners from cushion frame (Fig 1 ).
    Fig 1: Front Seat Cushion Wire Harness
    G03498828Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove seat cushion (Fig 2 ).

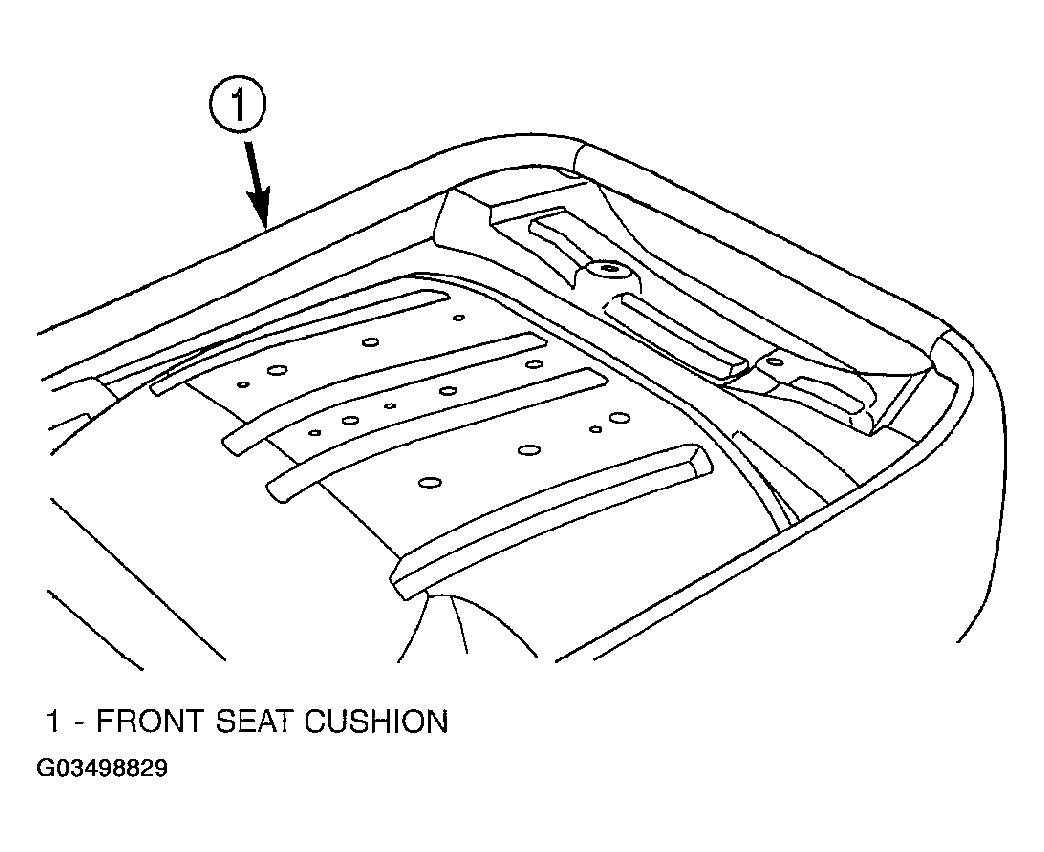

    Fig 2: Front Seat Cushion
    G03498829Courtesy of DAIMLERCHRYSLER CORP.
