Hose Clamps: Description
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

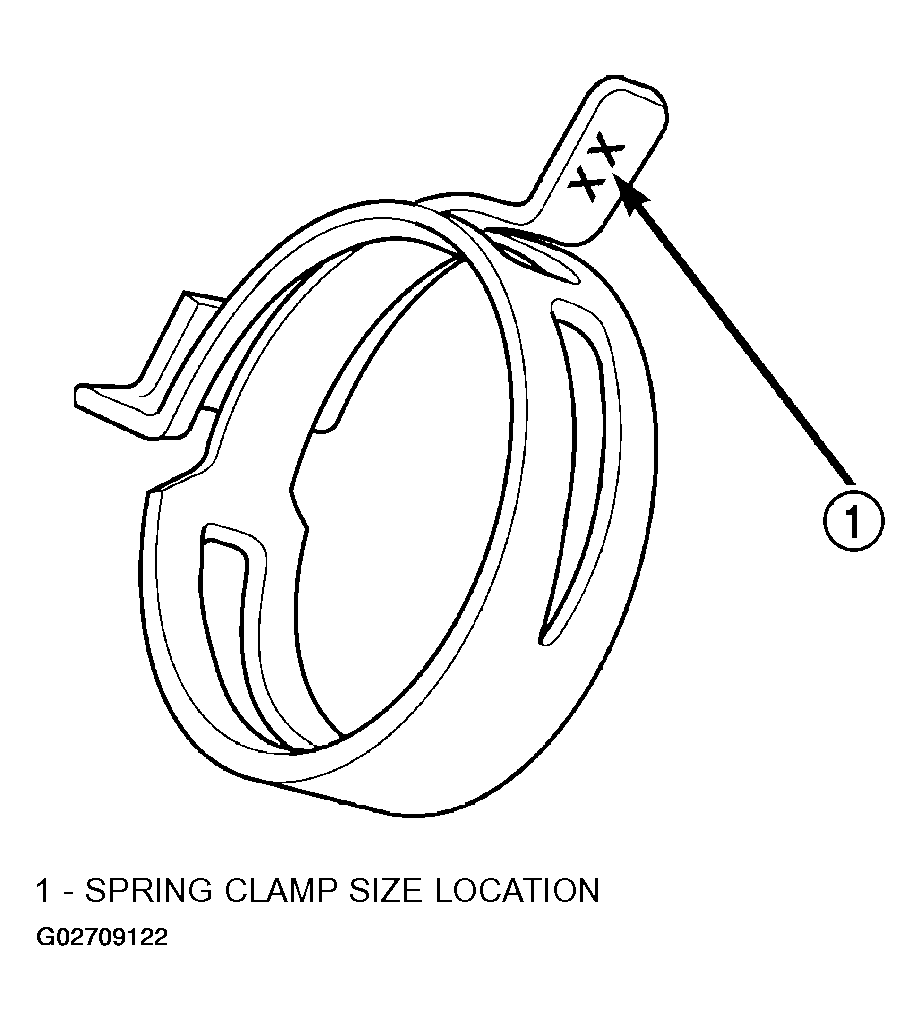

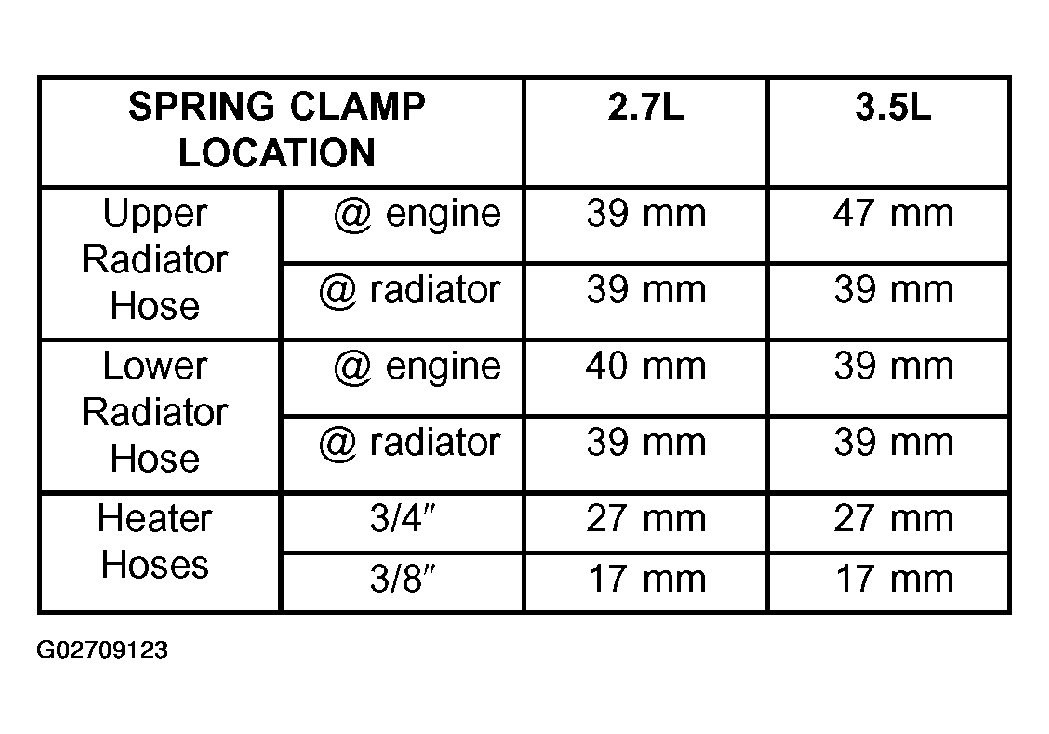

The cooling system utilizes both worm drive and spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original Mopar(R) equipment spring type clamp. To identify size of spring hose clamps, the size in millimeters has been stamped on each clamp (Fig 1 ). Refer to Fig 2 for proper size and location of hose clamps.
