Rear Shelf Trim Panel: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Remove seat cushion and back.
- Remove quarter trim lower and upper trim panels.
- Remove center seat belt anchor bolt.
- Remove push pin fasteners.

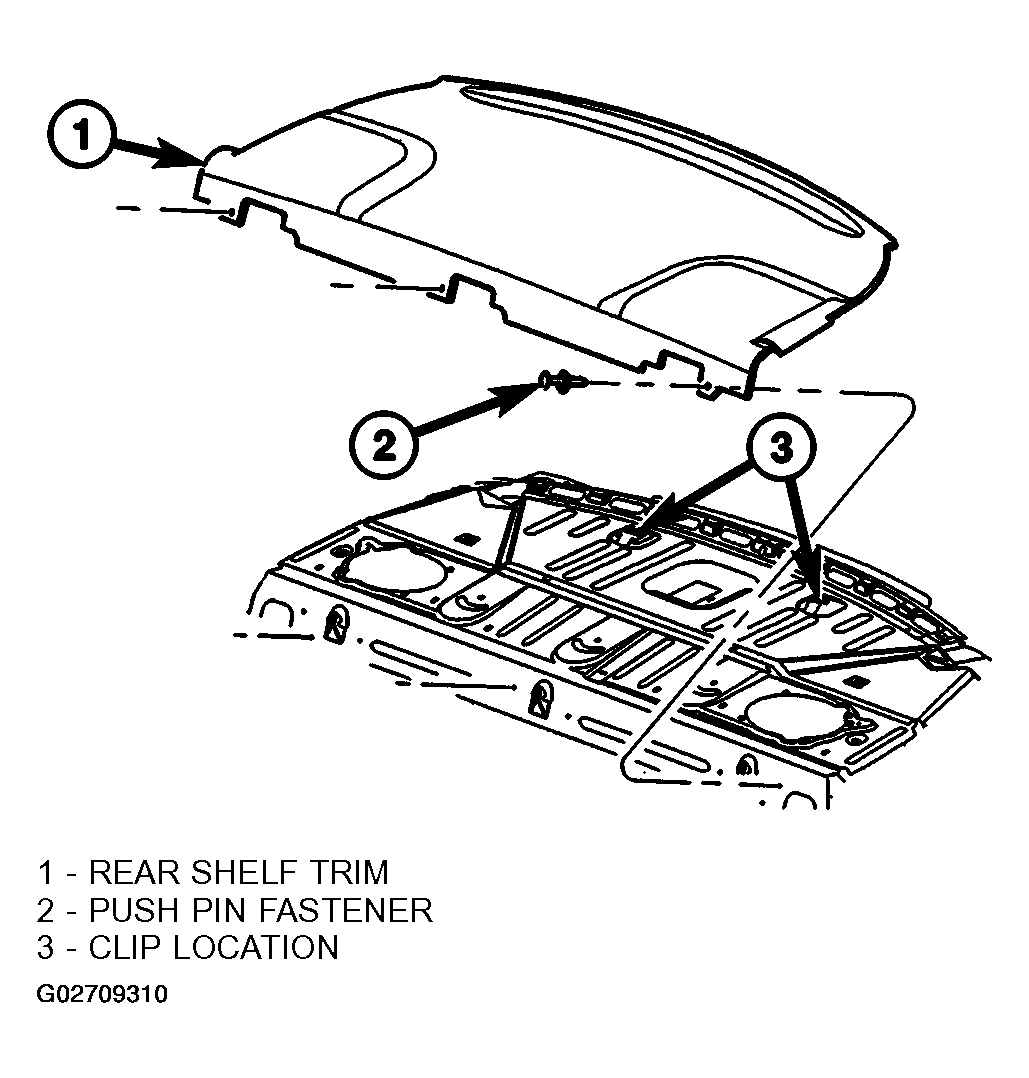

- Pull rear shelf trim panel away from rear glass to disengage clips (Fig 1 ).
- Disengage CHMSL wire connector, if equipped.
- Feed center seat belt and bezel through rear shelf trim panel
- Remove rear shelf trim panel from vehicle.
