A/C System SPECIFCATIONS Charts

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

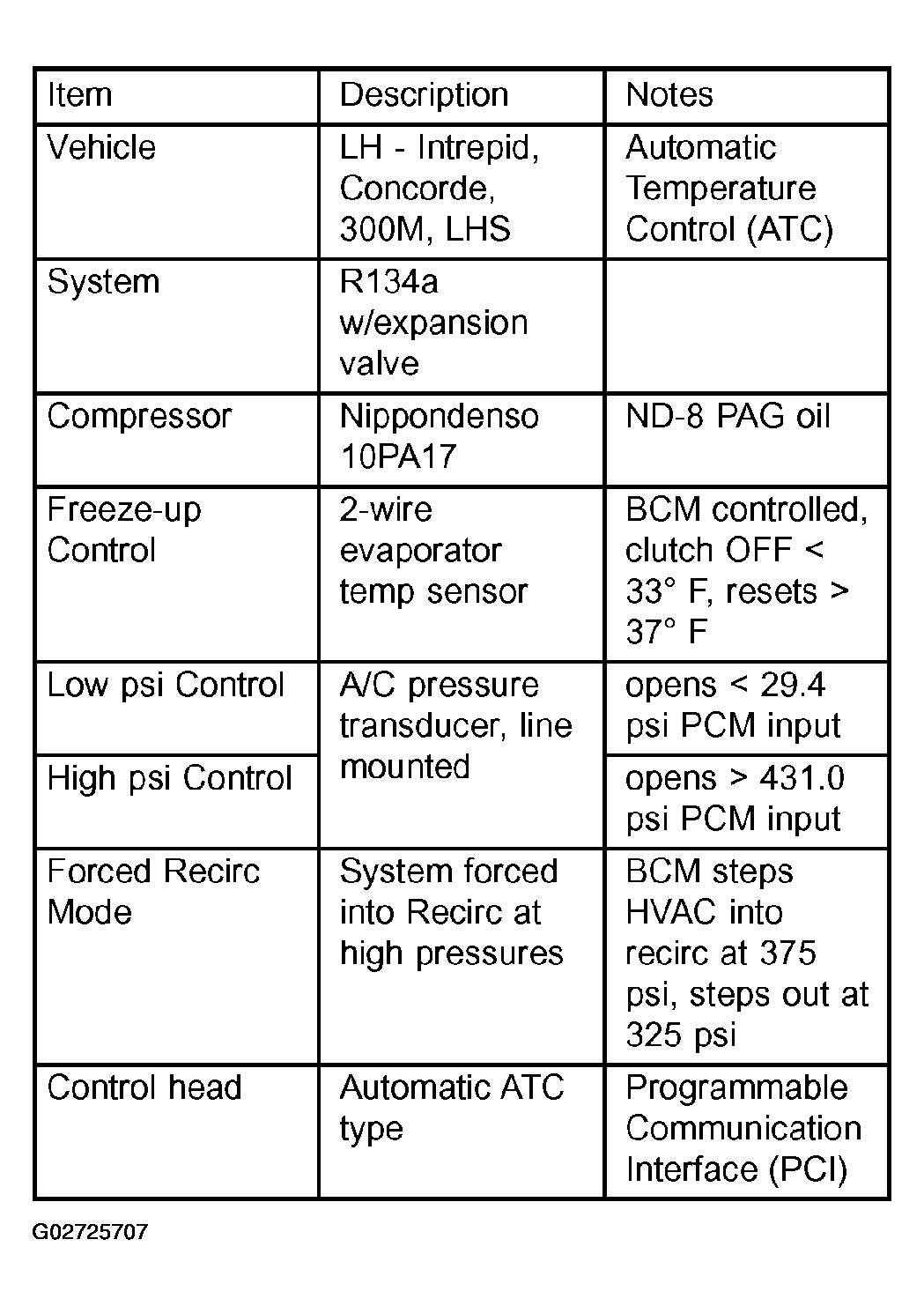

Fig 1: A/C Application Chart - ATC (1 Of 2)

G02725707

Courtesy of DAIMLERCHRYSLER CORP.

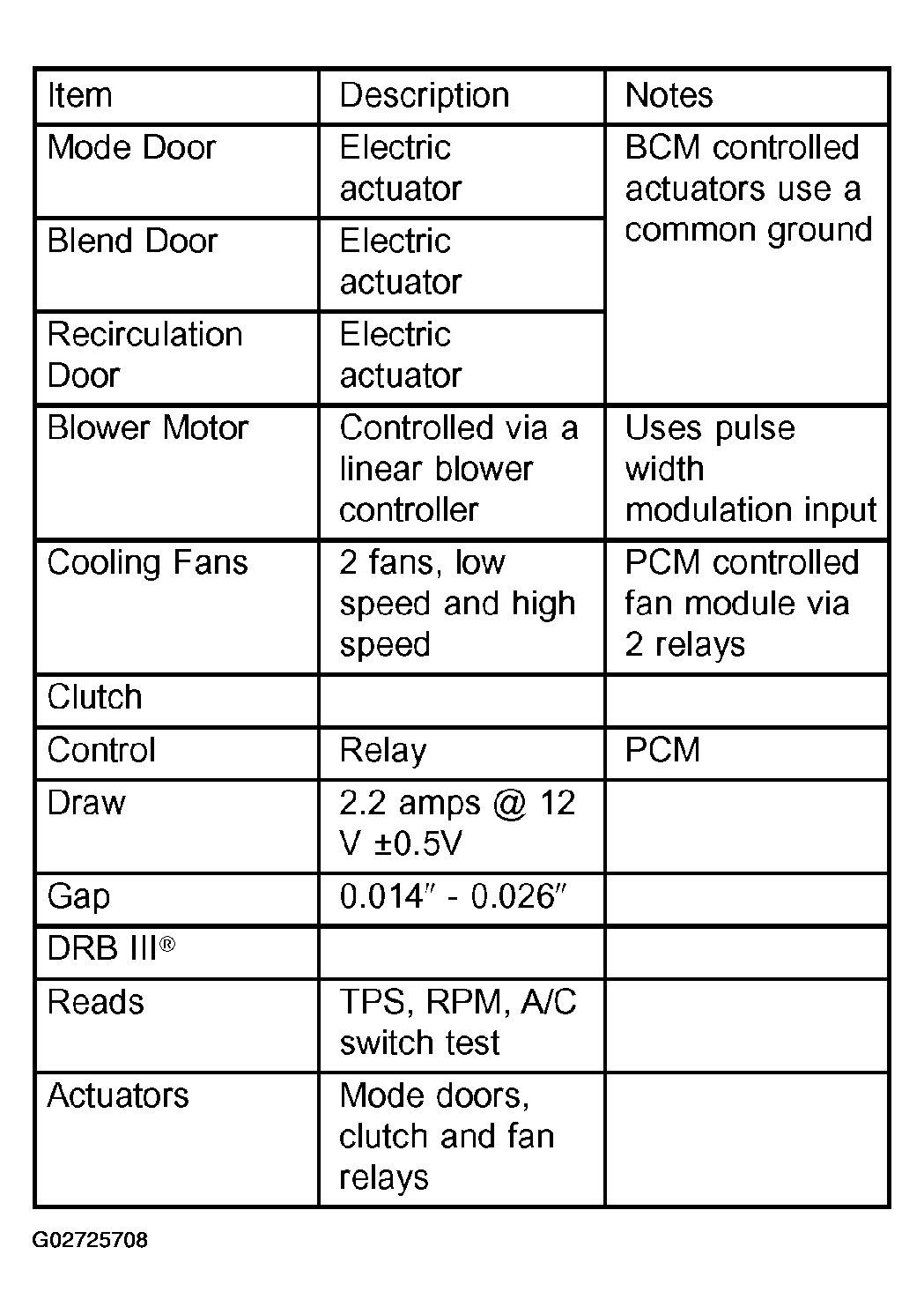

Fig 2: A/C Application Chart - ATC (2 Of 2)

G02725708

Courtesy of DAIMLERCHRYSLER CORP.

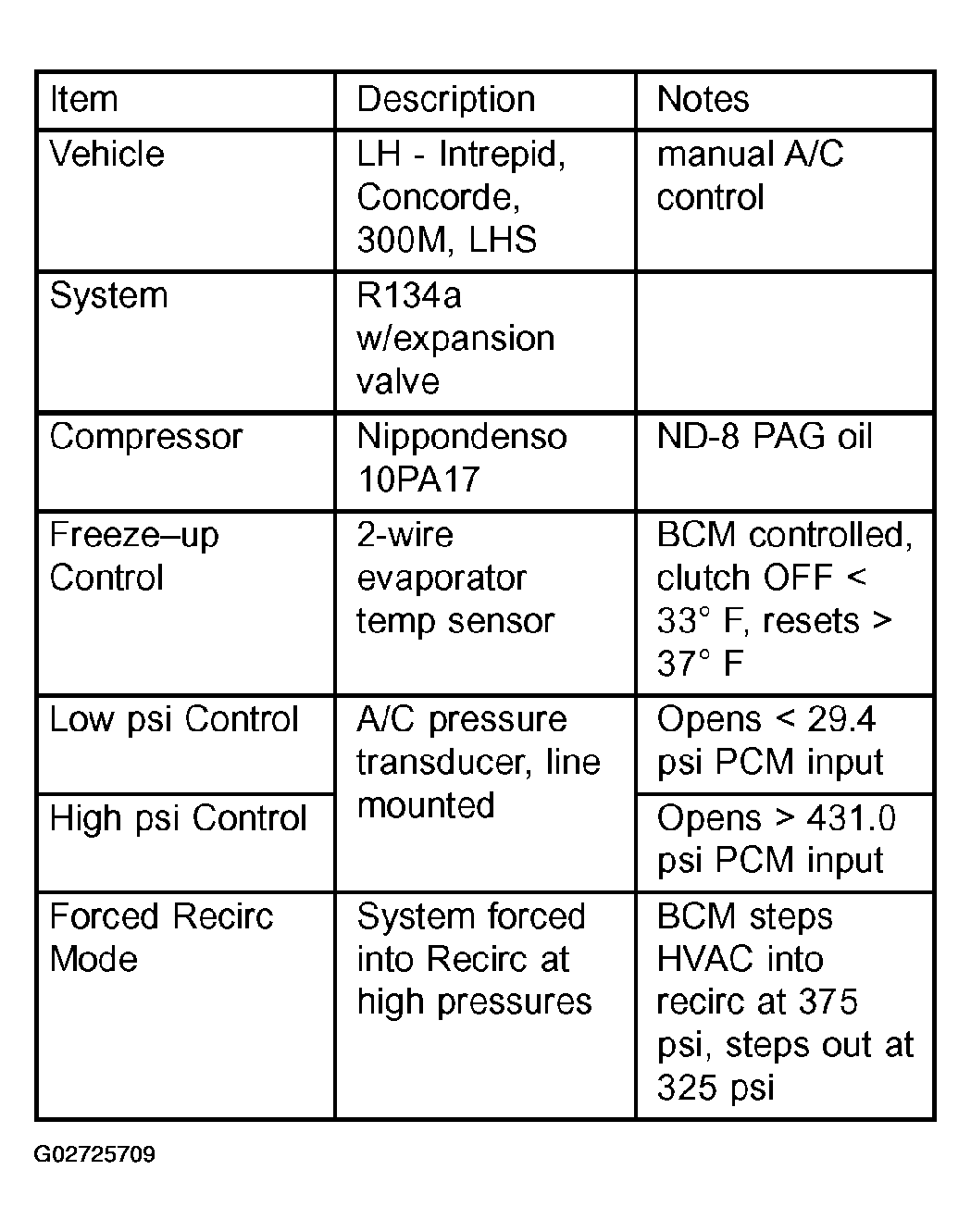

Fig 3: A/C Application Chart - MTC (1 Of 3)

G02725709

Courtesy of DAIMLERCHRYSLER CORP.

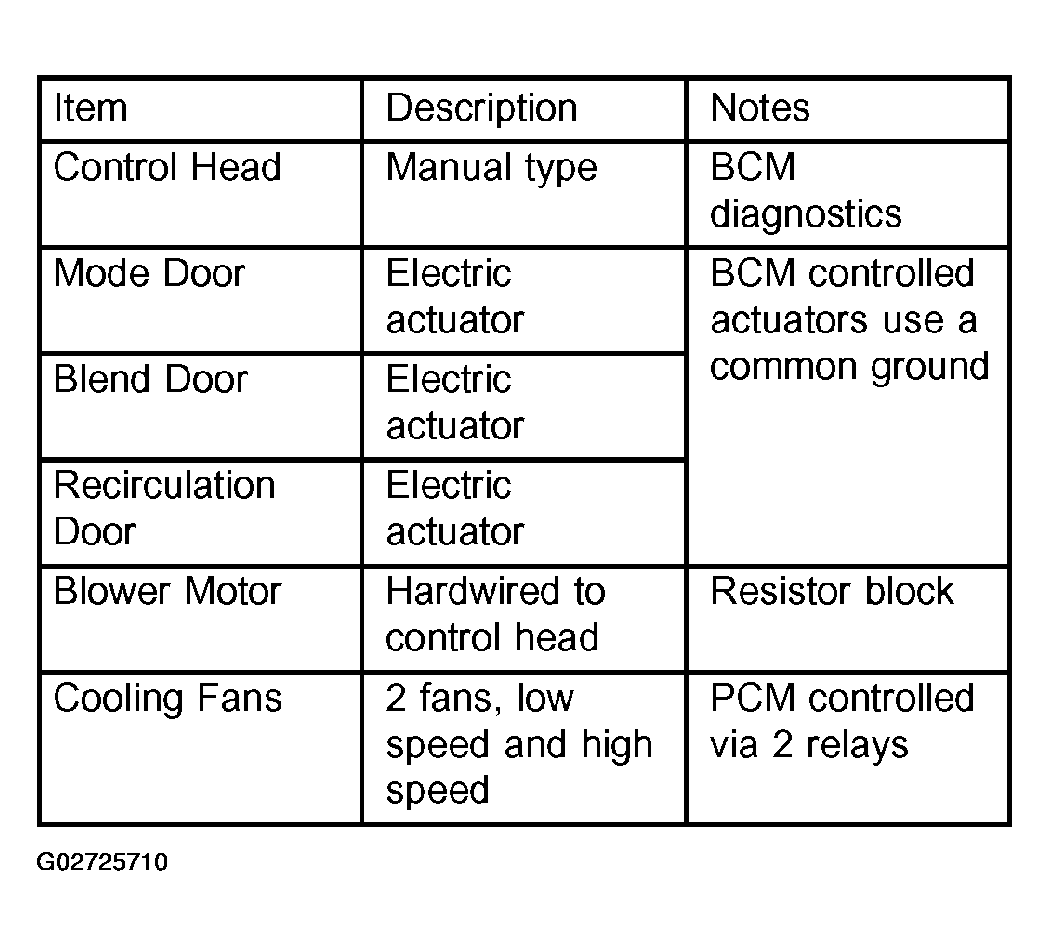

Fig 4: A/C Application Chart - MTC (2 Of 3)

G02725710

Courtesy of DAIMLERCHRYSLER CORP.

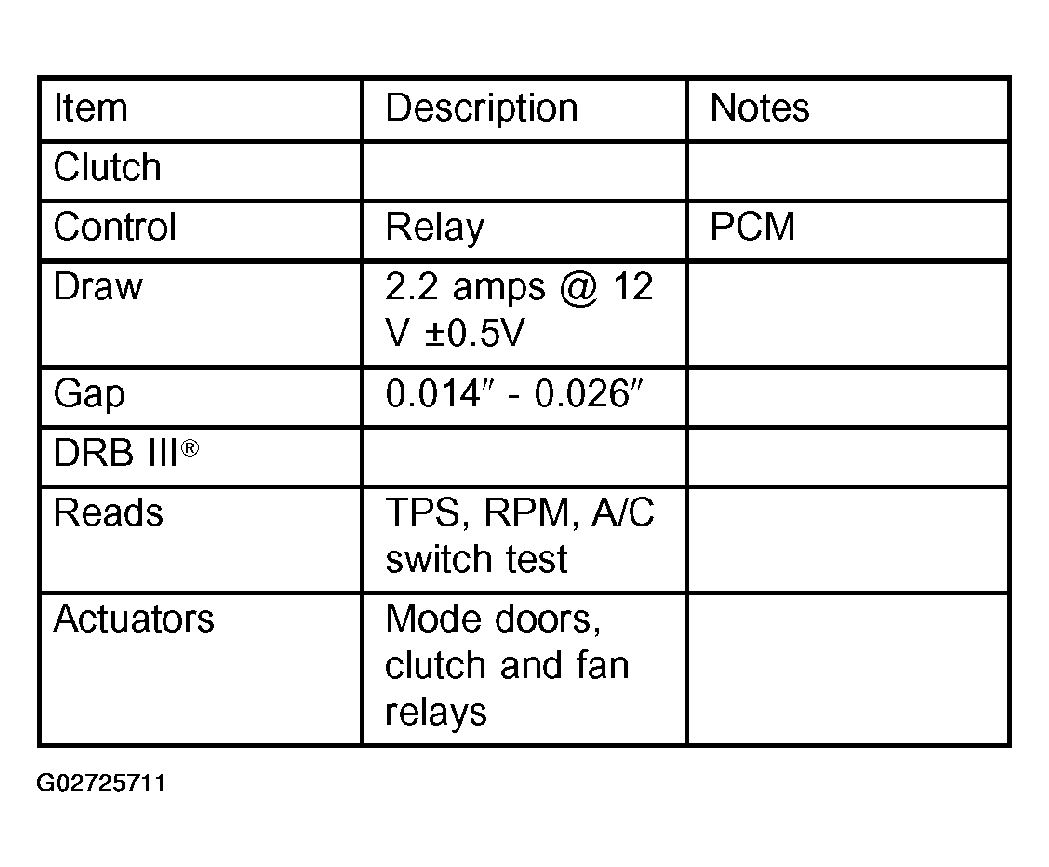

Fig 5: A/C Application Chart - MTC (3 Of 3)

G02725711

Courtesy of DAIMLERCHRYSLER CORP.
