In-Car Temperature Sensor

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the following air flow test to check the aspirator motor assembly:
    • Turn ignition to the ON position and push the off button to stop the ATC system airflow. This will make it easier to observe paper in next step.

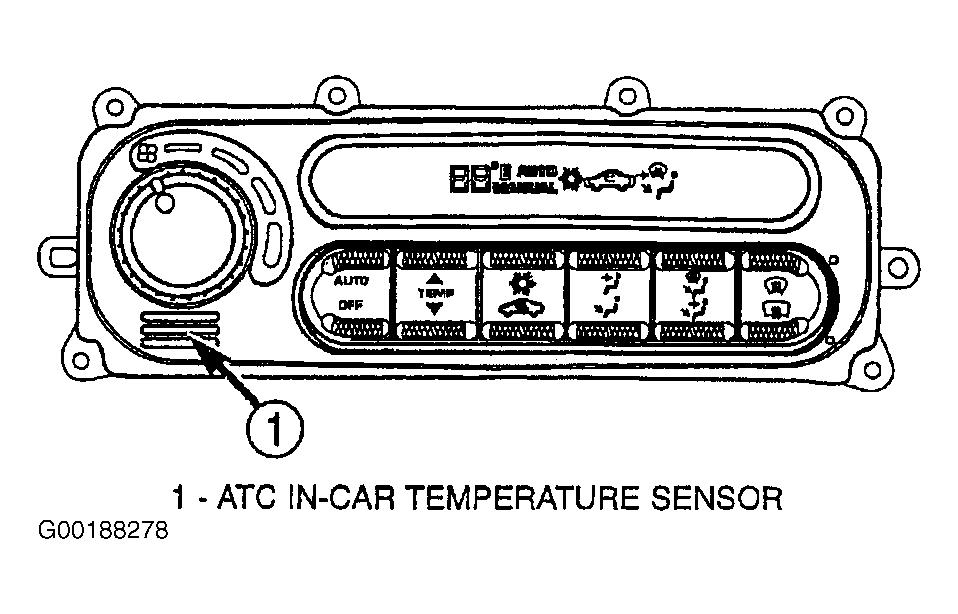

    • Place a small piece of newspaper in front of the aspirator motor opening on the ATC control. If the paper sticks to the opening, the in-car sensor aspirator motor is operating properly. The piece of paper should be only large enough to cover the grille opening. See Figure .
  2. Check is the electrical connection and connector are okay.
