A/C Discharge Line: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Open the hood and disconnect the negative battery cable remote terminal from the remote battery post. Recover the refrigerant from the system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.
Disconnect the A/C pressure transducer wire harness. See Fig 1 and Fig 2 . Remove the A/C pressure transducer. See A/C PRESSURE TRANSDUCER .
Disconnect the discharge line at the compressor using an M13 Hex wrench for 2.7L, and a 6 mm Allen wrench for 3.2L and 3.5L. Disconnect the discharge line at the A/C condenser using an M13 Hex wrench.

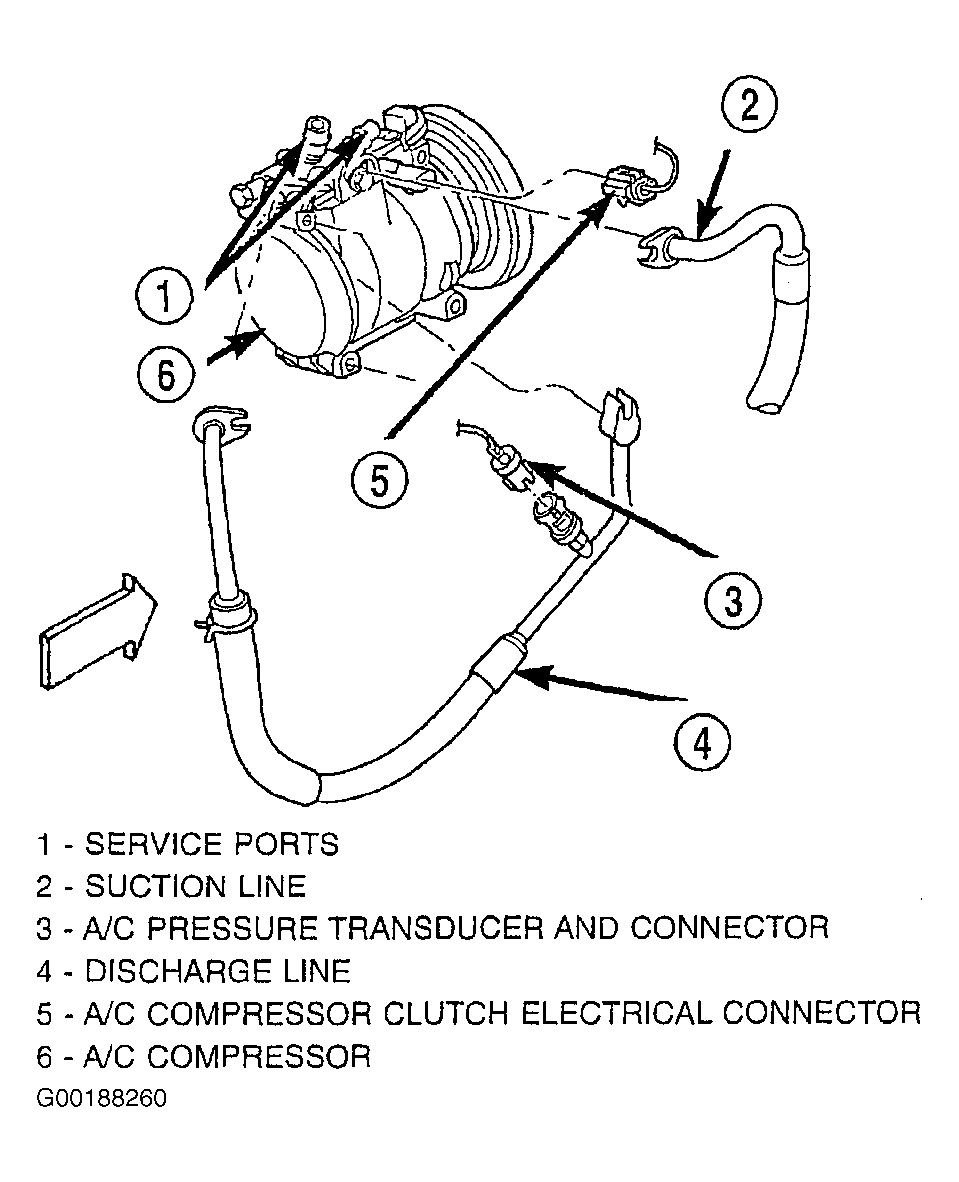

Fig 1: Removing Discharge Line (3.2L & 3.5L Engine)

Courtesy of CHRYSLER CORP.

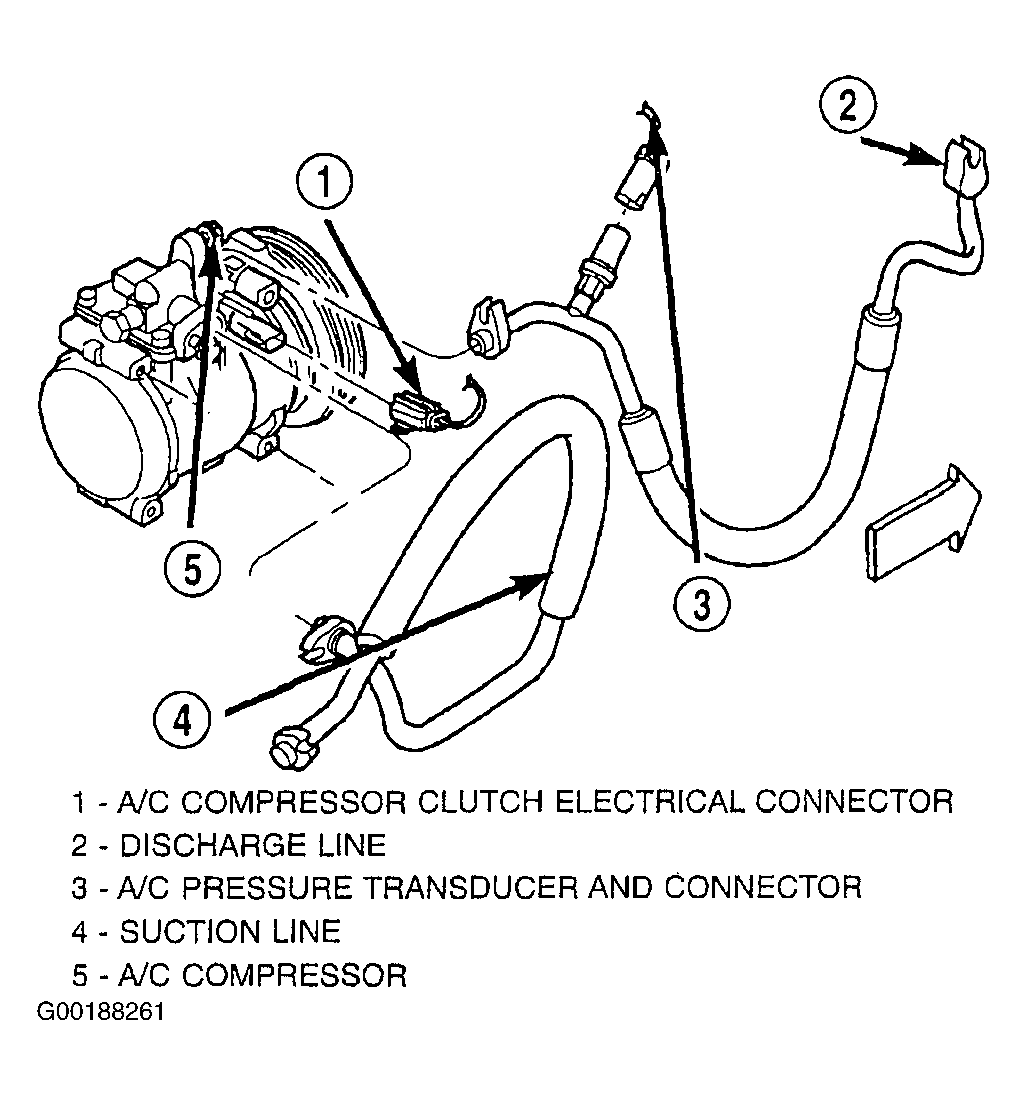

Fig 2: Removing Discharge Line (2.7L Engine)

Courtesy of CHRYSLER CORP.
