A/C Heater Control: Removal

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Open hood and disconnect the negative battery cable remote terminal from the remote battery post. Remove the ash receiver assembly, if necessary.
Remove the instrument panel center trim bezel and remove the two electrical connectors from the back of the control head and traction control switch (if equipped). See Fig 1 and Fig 2 . From the back of the center trim bezel, remove the six retaining screws from the a/c heater control head and remove from the bezel.

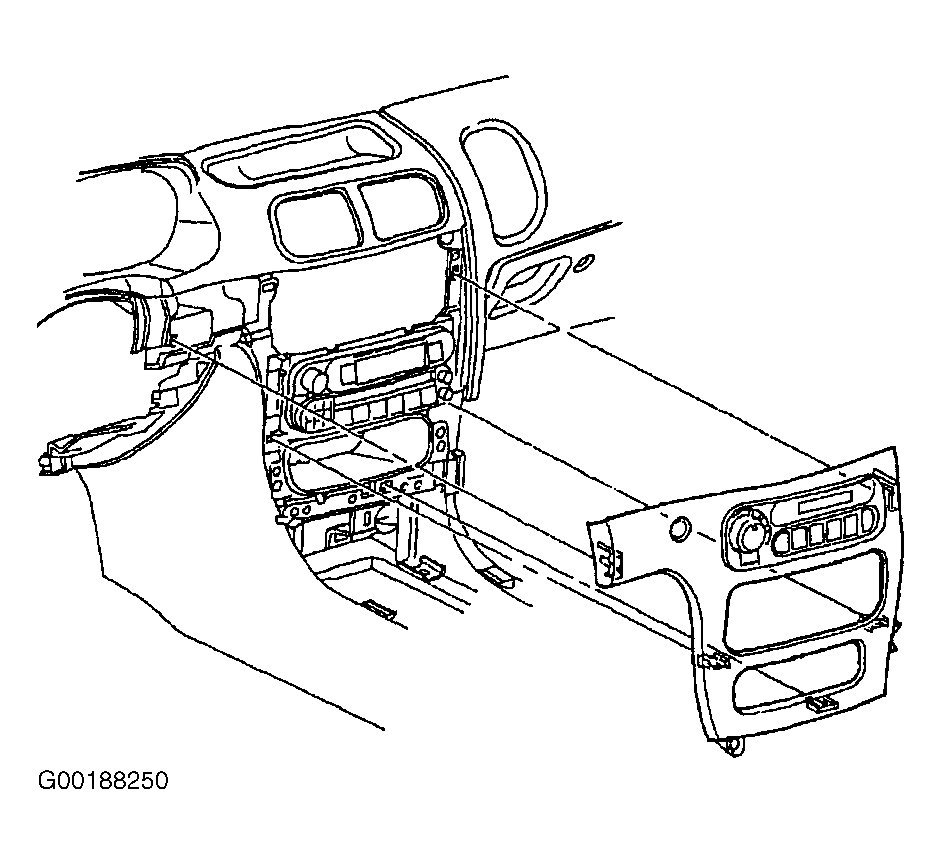

Fig 1: Removing Instrument Panel Center Trim Bezel

Courtesy of CHRYSLER CORP.

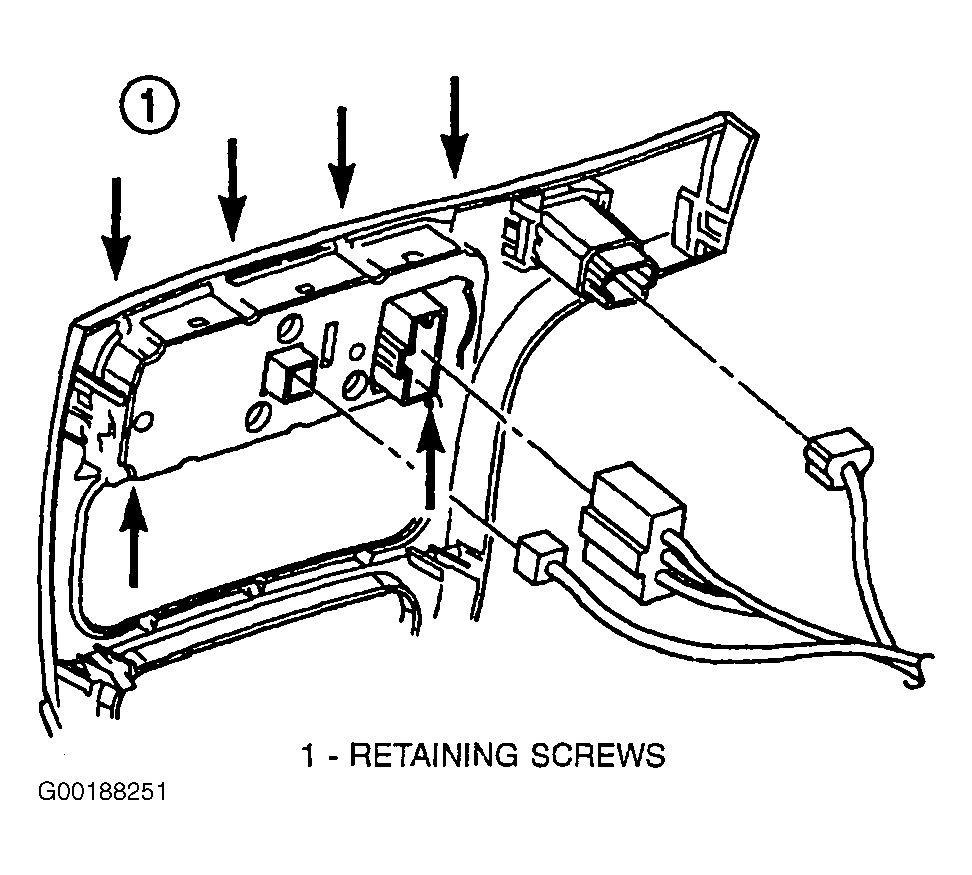

Fig 2: Removing Electrical Connectors From Control Head

Courtesy of CHRYSLER CORP.
