Cooling System

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

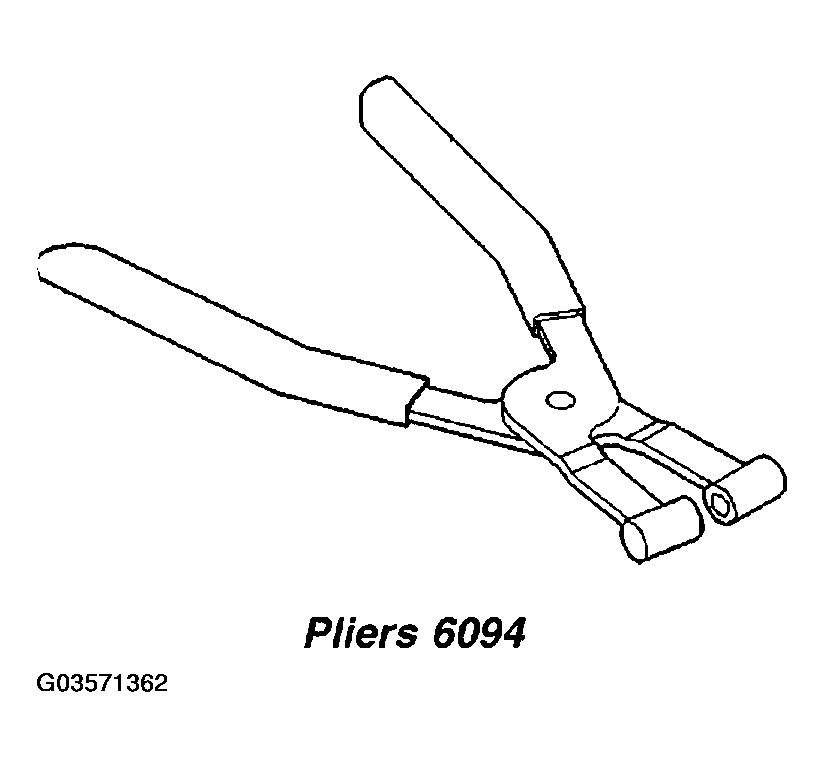

Fig 1: Identifying Pilers 6094

Courtesy of DAIMLERCHRYSLER CORP.

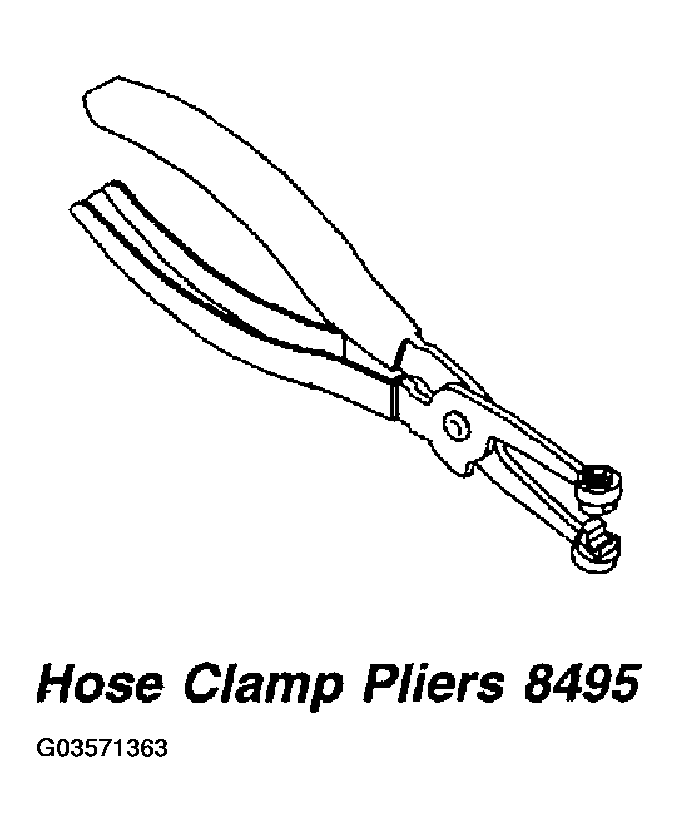

Fig 2: Identifying Hose Clamp Pilers 8495

Courtesy of DAIMLERCHRYSLER CORP.

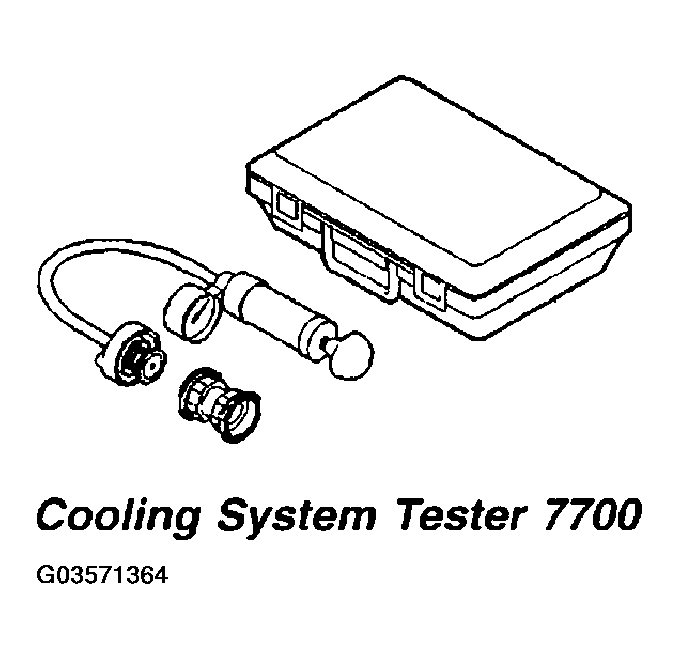

Fig 3: Identifying Cooling System Tester 7700

Courtesy of DAIMLERCHRYSLER CORP.

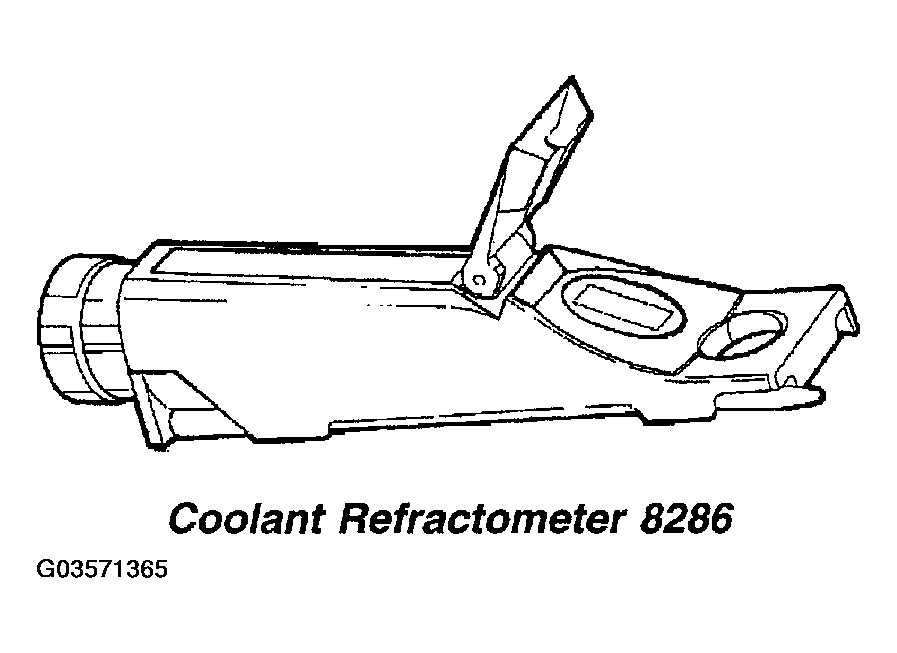

Fig 4: Identifying Coolant Refractometer 8286

Courtesy of DAIMLERCHRYSLER CORP.
