Component Locations
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

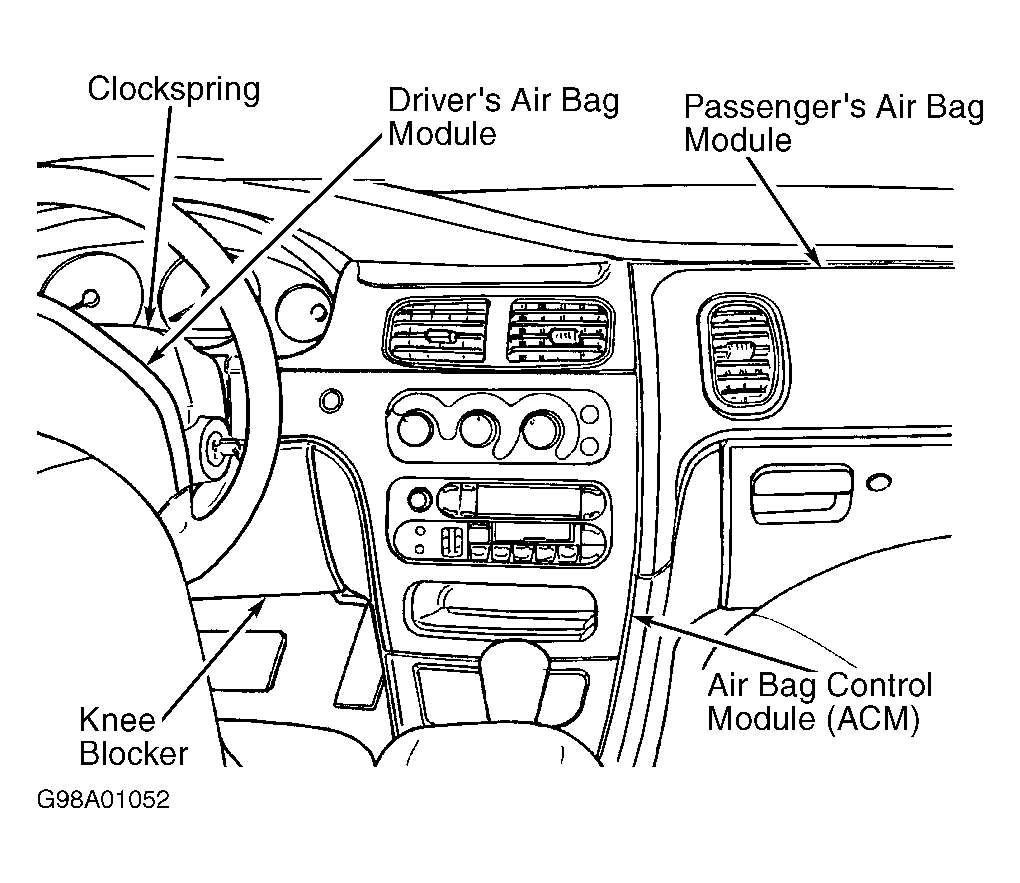

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, below steering wheel | ||
| Data link connector | Under left side of instrument panel, right of steering column | ||
| Driver-side air bag module | Front face of steering wheel | ||
| Occupant restraint controller | Transmission tunnel floor panel, under instrument panel | ||
| Passenger-side air bag module | Right side of instrument panel, under instrument panel top pad | ||
| Shorting bar | Internal to initiator"s (squib) connectors | ||
| Side air bag module | Outboard sides of front seat back frames beneath seat cover | ||

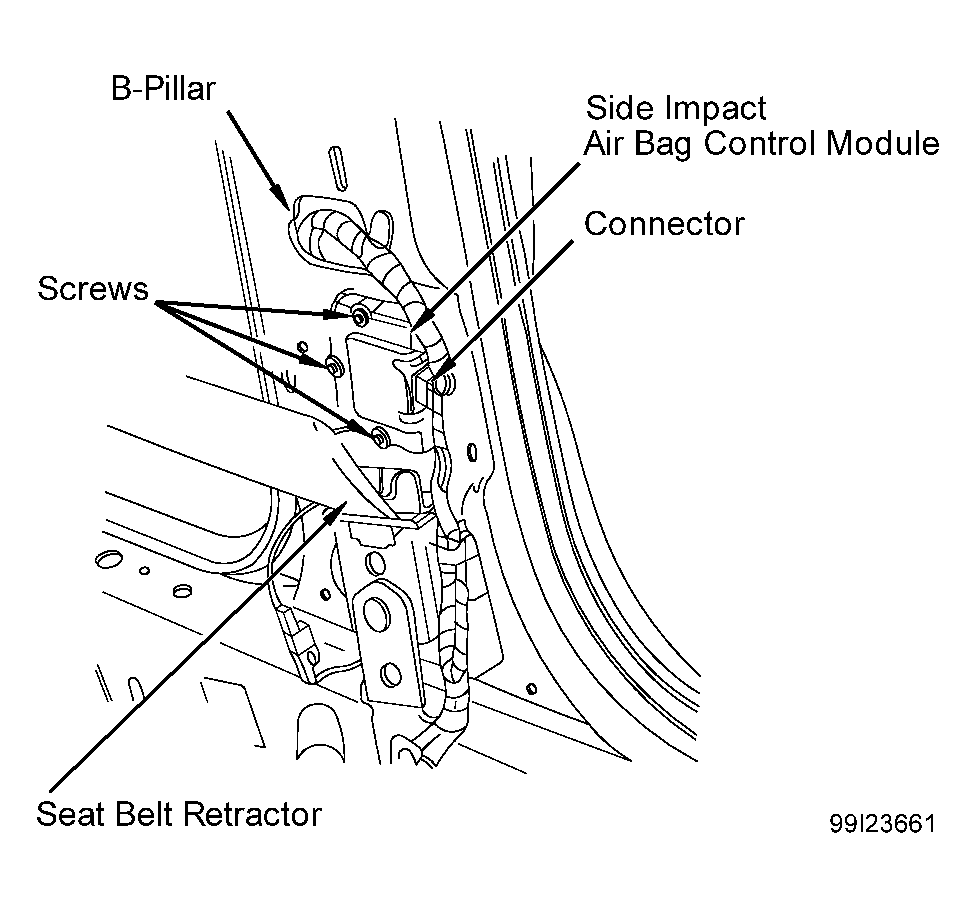

| Side impact air bag frames beneath seat cover | Inside of B-pillars, behind lower B-pillar trim panel | ||
|
|||
