Coolant Outlet Connector - 2.7L: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.

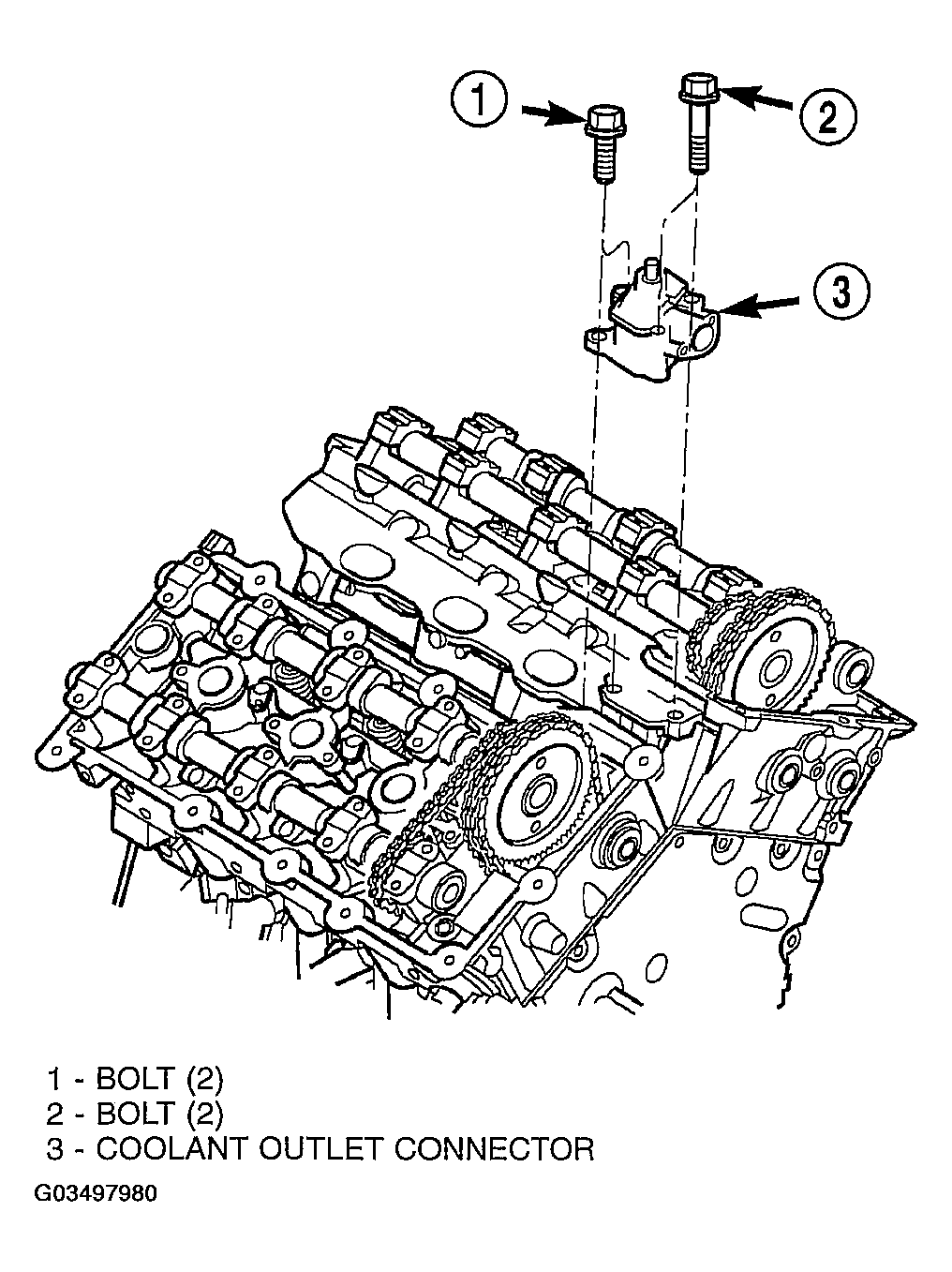

- Install outlet connector and tighten bolts to 12 N.m (105 in.lbs.) (Figure).
- Inspect and replace heater supply tube O-ring as necessary.
- Lubricate O-ring and insert heater tube assembly into outlet connector. Tighten screws to 3 N.m (30 in.lbs.).
- Install upper intake manifold (Refer to INTAKE MANIFOLD -- UPPER ).
- Fill cooling system (Refer to STANDARD PROCEDURE ).
