Hose Clamps: Description
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

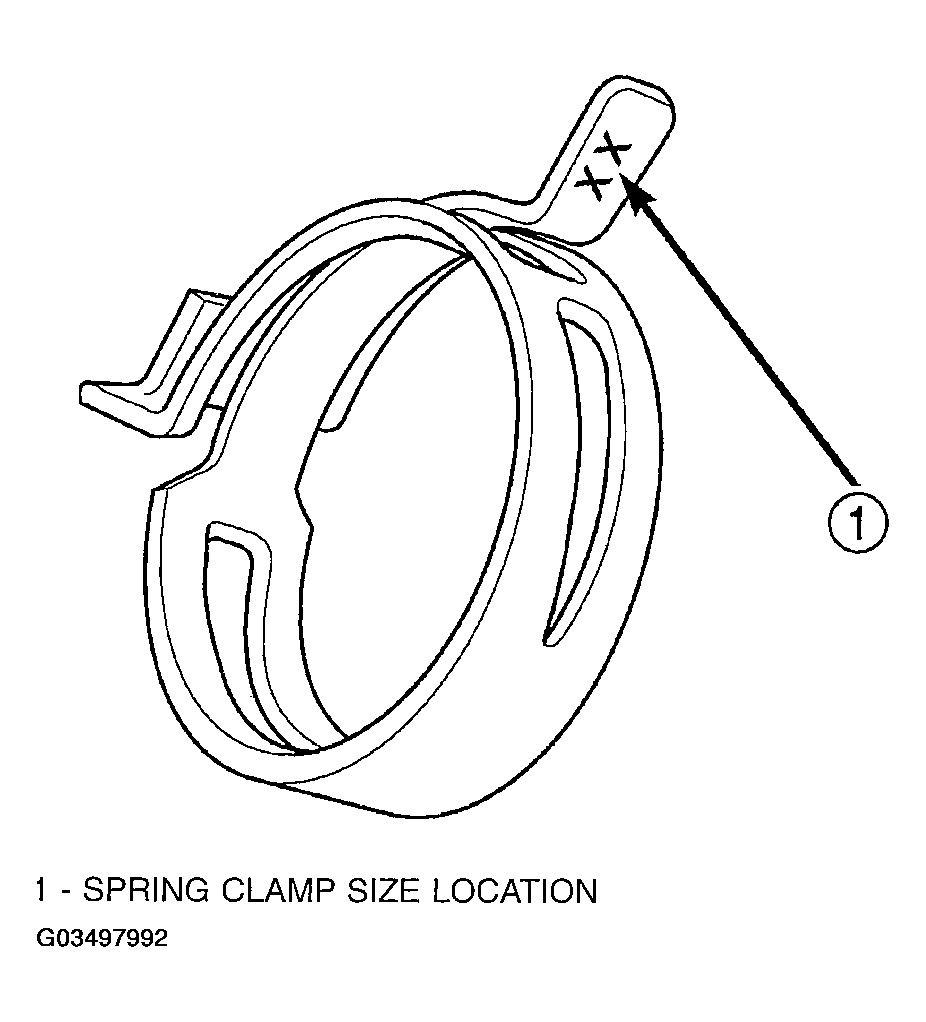

The cooling system utilizes both worm drive and spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original Mopar® equipment spring type clamp. To identify size of spring hose clamps, the size in millimeters has been stamped on each clamp (Fig 1). Refer to HOSE CLAMP USAGE CHART for proper size and location of hose clamps.
HOSE CLAMP USAGE CHART
| SPRING CLAMP LOCATION | 2.7L | 3.5L | |
|---|---|---|---|
| Upper Radiator Hose | @ engine | 39 mm | 47 mm |
| @ radiator | 39 mm | 39 mm | |
| Lower Radiator Hose | @ engine | 40 mm | 39 mm |
| @ radiator | 39 mm | 39 mm | |
| Heater Hoses | 3/4" | 27 mm | 27 mm |
| 3/8" | 17 mm | 17 mm | |
