Water Pump - 2.7L: Description
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

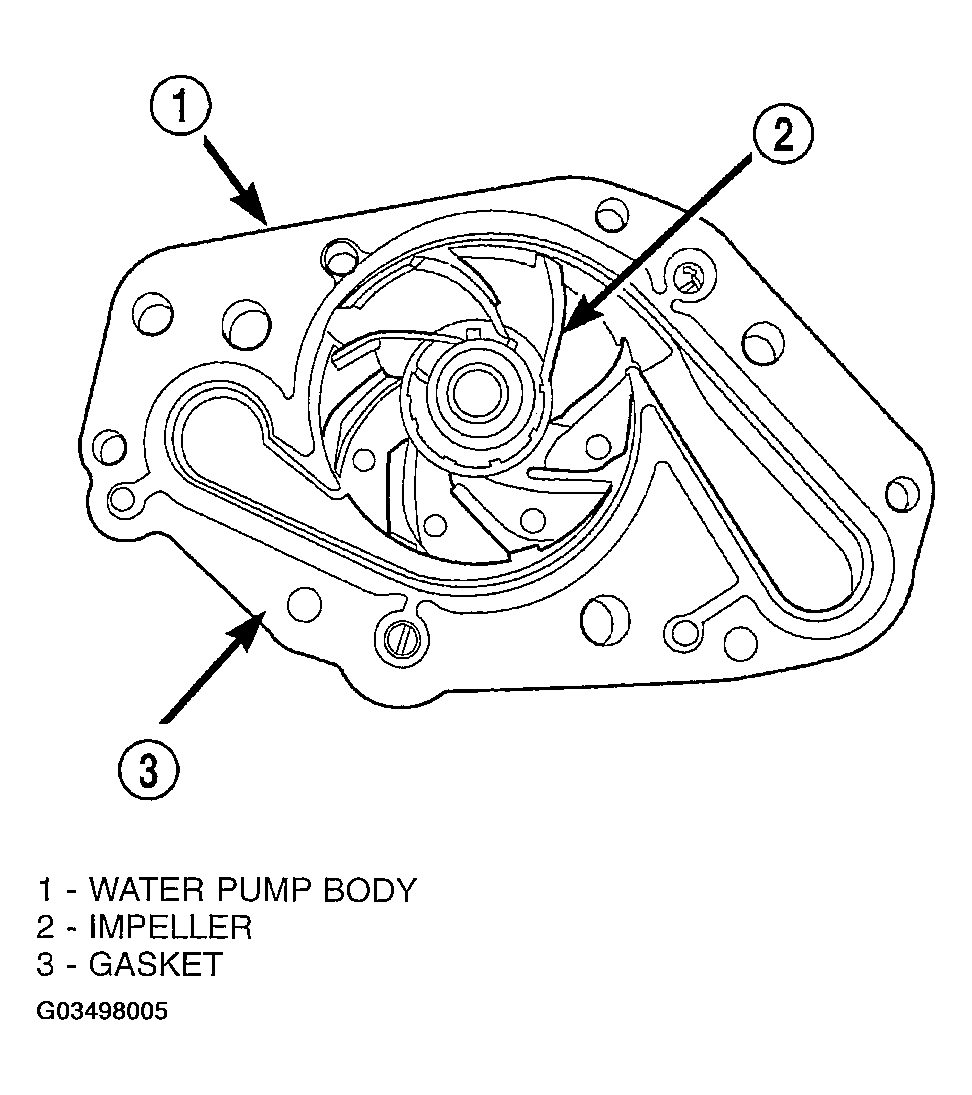

The 2.7L pump has a die cast aluminum housing and a plastic swept vane impeller. It bolts directly to the cylinder block, behind the timing chain cover (Fig 1). The water pump is driven by the back side of the engine primary timing chain.
