Midline/Infinity I System
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove right under panel silencer/duct.

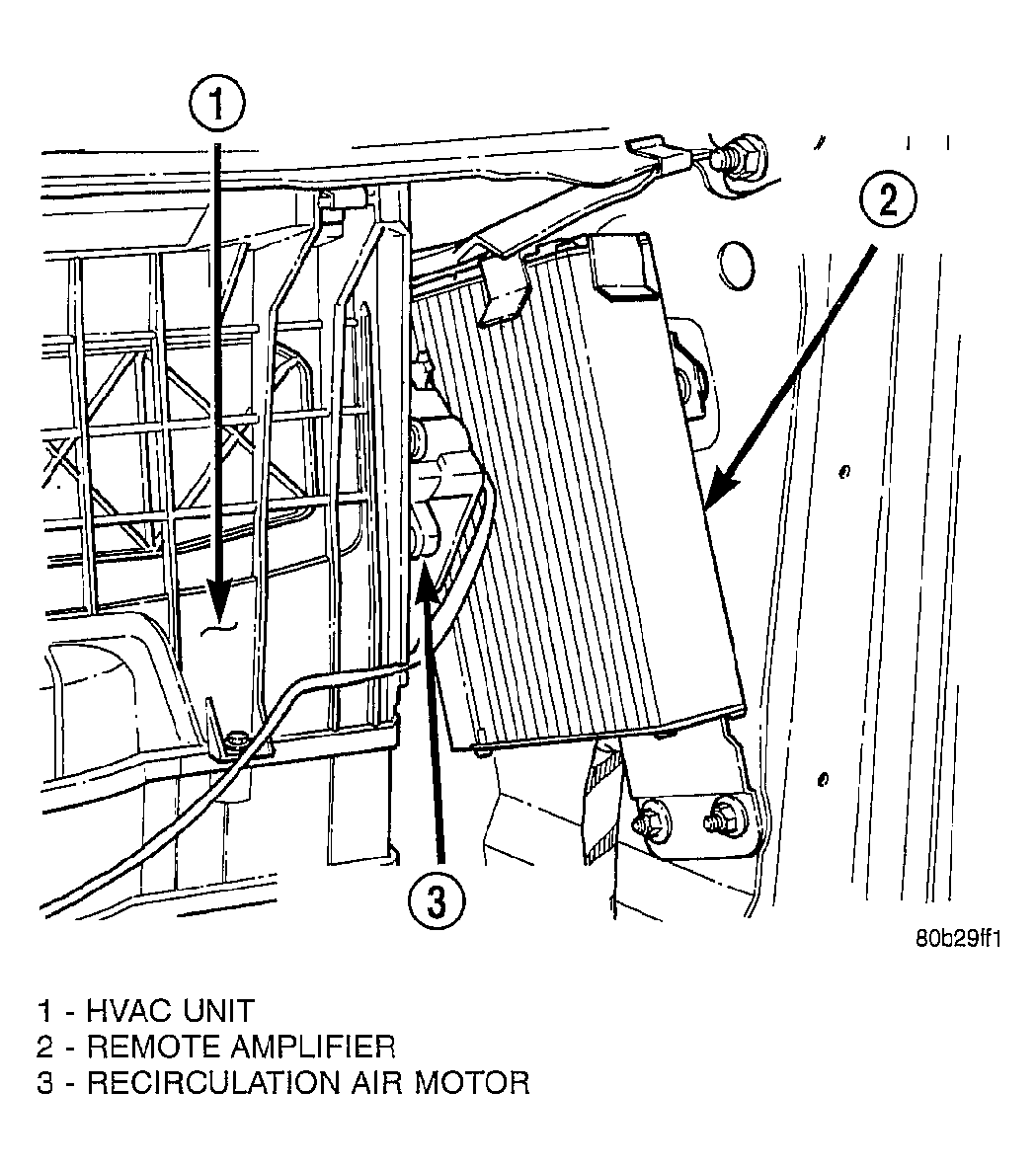

- Remove mounting fastener to remote amplifier (Fig 1).
- Pull amplifier inboard and then pull downward to remove from upper retaining clips.
- Disconnect two wiring connectors.
- Remove remote amplifier from vehicle.
