Center High Mounted Stop Lamp Unit: Removal: Intrepid

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Remove decklid cover.

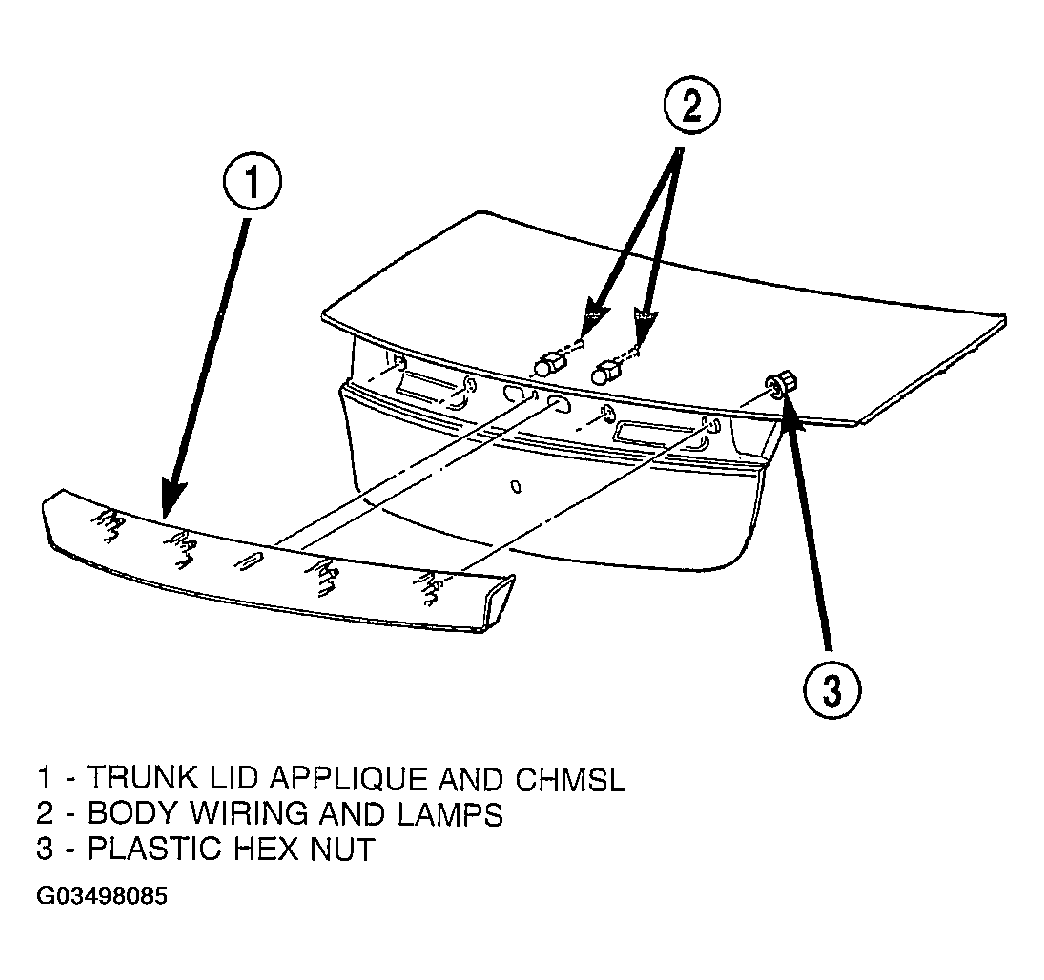

  3. Disconnect CHMSL wire connector from body harness (Figure).
  4. Remove fasteners attaching CHMSL and applique to the decklid.
  5. Remove CHMSL from decklid.
