Front Position Lamp - Export: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp module from the vehicle (Refer to HEADLAMP UNIT ).
Twist and remove the front position lamp socket from the headlamp module.
Pull the front position lamp bulb straight from its socket (Fig 1).

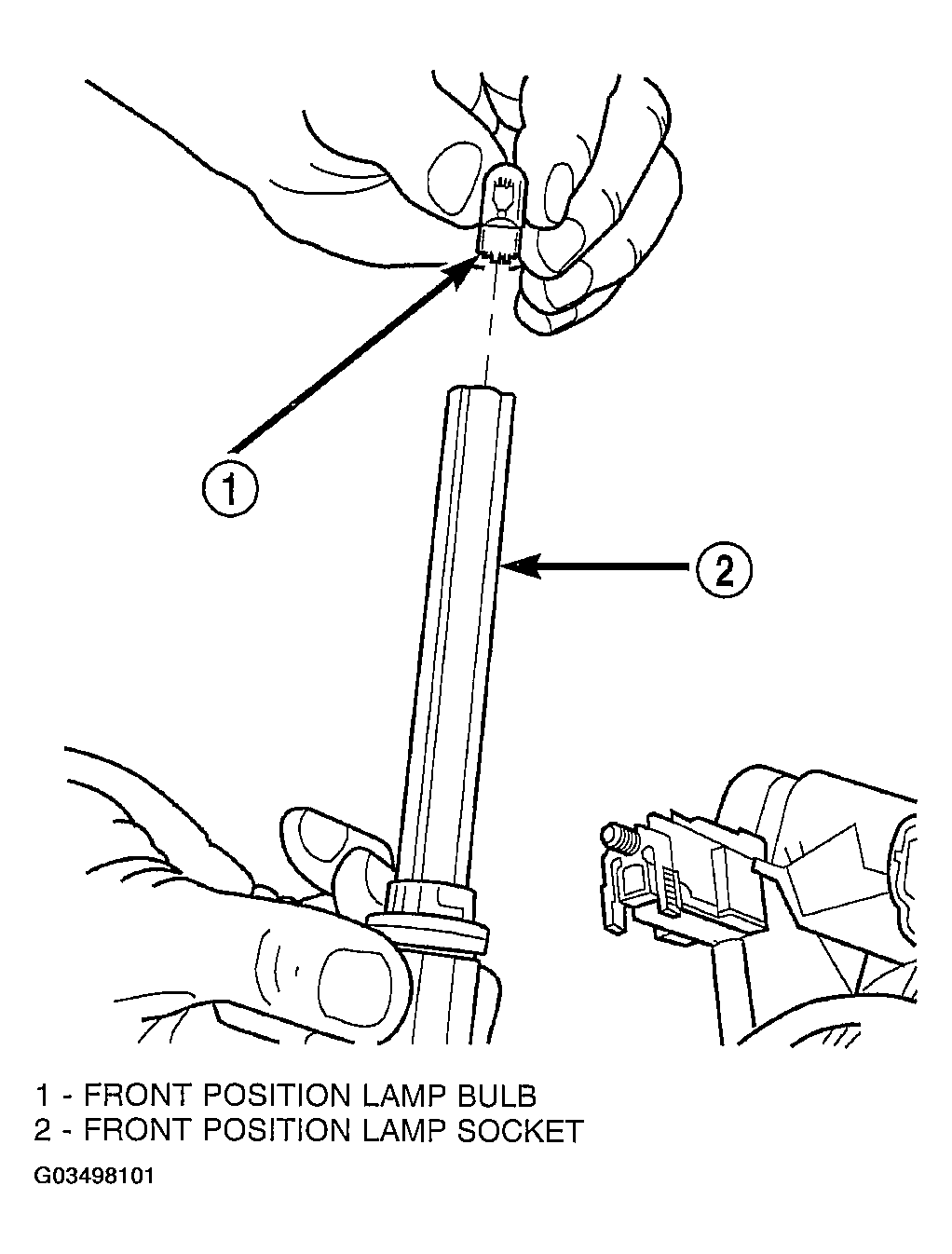

Fig 1: Front Position Lamp Bulb
Courtesy of DAIMLERCHRYSLER CORP.
