Multi-Function Switch: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

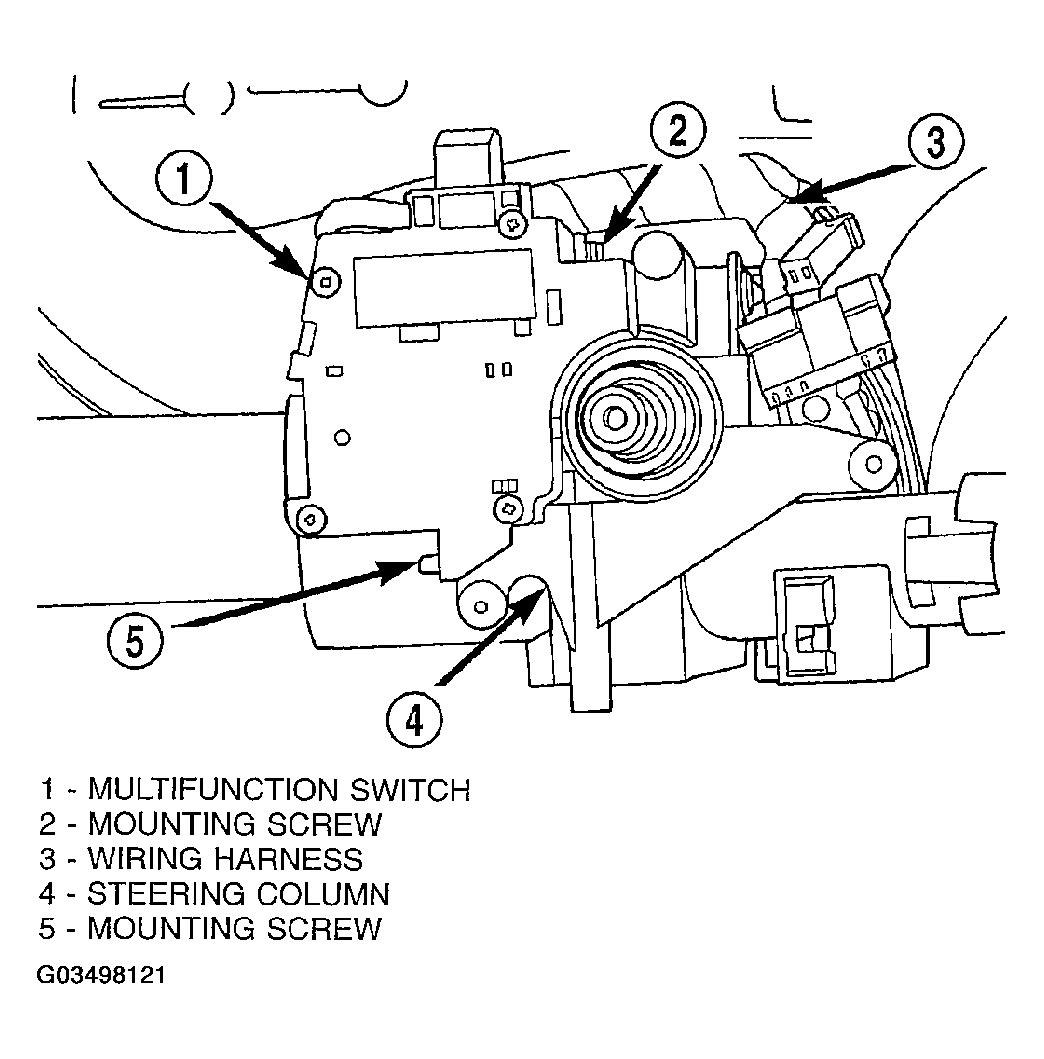

- Install the multi-function switch connectors and mounting screws (Fig 1).
- Tighten multi-function switch retaining screws to 17 in.lbs. (2 N.m) torque.
- Install both upper and lower steering column shrouds. Refer to INSTRUMENT PANEL .
- Install the tilt lever.
- Connect the negative battery cable remote terminal to the remote battery post.
