Side Repeater Lamp Unit - Export: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Install the side repeater lamp socket into the lamp unit.

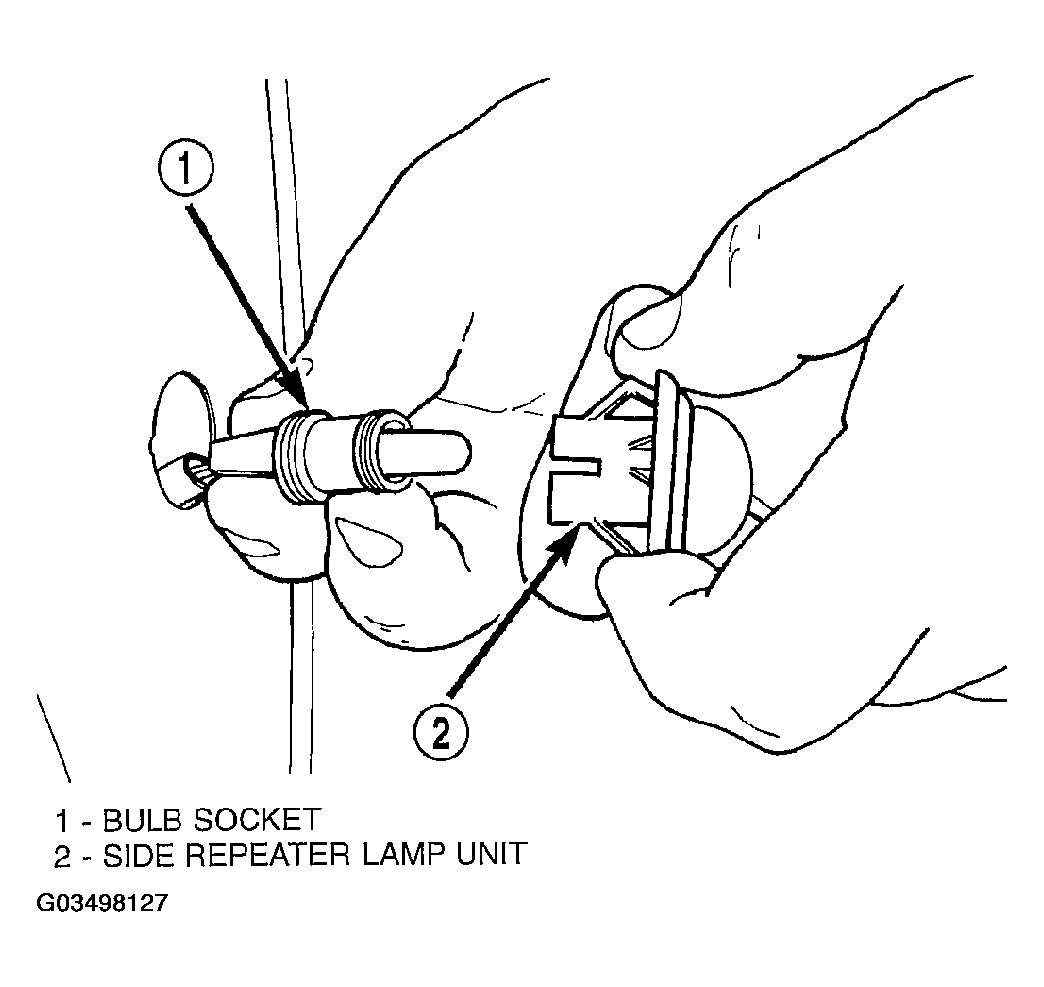

- Install the side repeater lamp in the front fender (Figure). Be certain lamp is secure within the fender.
- Install the front wheelhouse liner.
- Verify lamp operation.
