Tail Lamp Unit: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Release decklid latch and open decklid.
Remove fasteners attaching trunk lining to lower rear trunk panel.
Move the trunk lining to access the tail lamp unit fasteners.
Remove nuts attaching tail lamp unit to lower trunk and quarter panel (Fig 1), (Fig 2) and (Figure).
Remove tail lamp unit from vehicle.
Disconnect tail lamp unit wire connector from body wire harness.

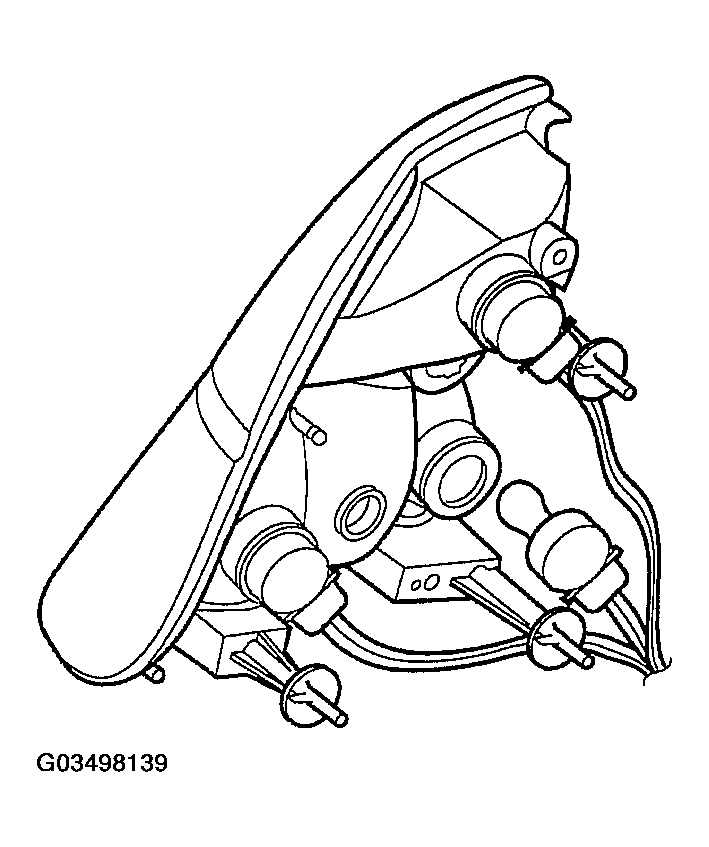

Fig 1: Tail Lamp - Concorde
Courtesy of DAIMLERCHRYSLER CORP.

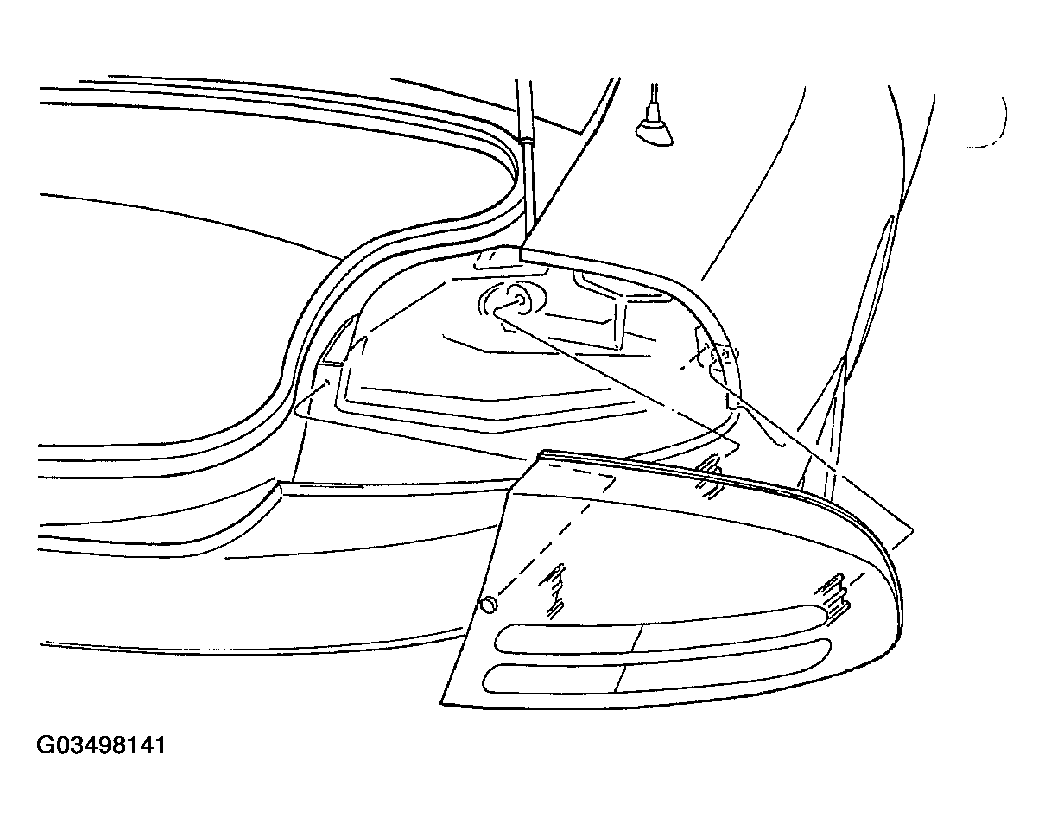

Fig 2: Tail Lamp - Intrepid
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Front Parking, Side Marker/Turn Signal Lamp Unit Underhood Lamp - Police
Courtesy of DAIMLERCHRYSLER CORP.
