Spindle Assembly: Installation

See TORQUE SPECIFICATIONS  .

1. To install, reverse removal procedure, tightening nuts and bolts to specification. DO NOT tighten control arm-to-spindle attaching bolt and trailing arm-to-spindle bracket attaching bolt to full specification until vehicle is lowered to ground.
2. When installing wheel mounting stud nuts, tighten in proper sequence until all nuts are tightened to half specification. Then repeat tightening sequence to full specified torque.

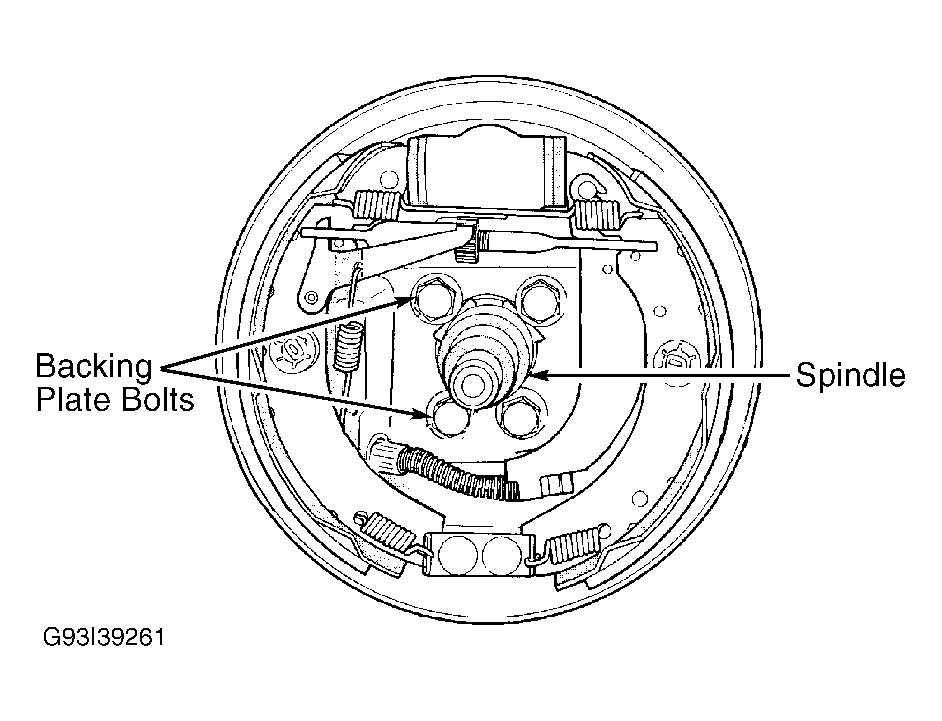

Fig 1: View Of Rear Drum Brake Assembly

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Speed Sensor Routing Tube (ABS-Equipped Models)

Courtesy of CHRYSLER CORP.
