Service Publication Updates - December, 2000 (26-012-00)

Publication date: 2000-12-01
Reference number: 26-012-00

SERVICE PUBLICATION UPDATES - DECEMBER, 2000

SERVICE PUBLICATION UPDATES - DECEMBER, 2000

TECHNICAL SERVICE BULLETIN

Reference Number(s): 26-012-00, Date of Issue:  December, 2000
CHRYSLER: 1999-2001 Sebring Convertible; 1999-2001 Concorde/LHS/300M; 1999-2000 Town & Country/Voyager; 1999-2000 Cirrus; 1996-1997 Town & Country
DODGE: 2000-2001 Ram Truck; 1999-2001 Intrepid; 1999-2000 Caravan; 1999-2000 Stratus; 2000 Neon; 1996-1997 Caravan
JEEP: 1999-2000 Grand Cherokee
PLYMOUTH: 2000 Neon; 1997-1999 Prowler; 1996-1997 Voyager
GROUP: Misc

SUBJECT

Service Publication Updates

THIS TECHNICAL SERVICE BULLETIN CONTAINS BOTH UPDATED SERVICE AND/OR DIAGNOSTIC MANUAL PAGES AND UPDATE PAGES REQUIRING HAND WRITTEN CHANGES TO EXISTING PAGES. THE UPDATES ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN AND ARE DESCRIBED BELOW. THE HAND WRITTEN UPDATES ARE SHOWN ON SEPARATE PAGES INDICATING WHICH CHANGES ARE REQUIRED AND WHERE ON THE ORIGINAL PAGES THE CHANGE NEEDS TO BE MADE. PLEASE EITHER INSERT THE SELF-ADHESIVE PAGES OR HAND WRITE THE NECESSARY CHANGES ONTO THE PAGES IN THE APPROPRIATE MANUAL.

2001 Ram Truck Service Manual - Publication Number 81-370-1008

  1. PAGES
    8W-20-2, 8W-20-3, 8W-30-13, 8W-30-38, 8W-31-2

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

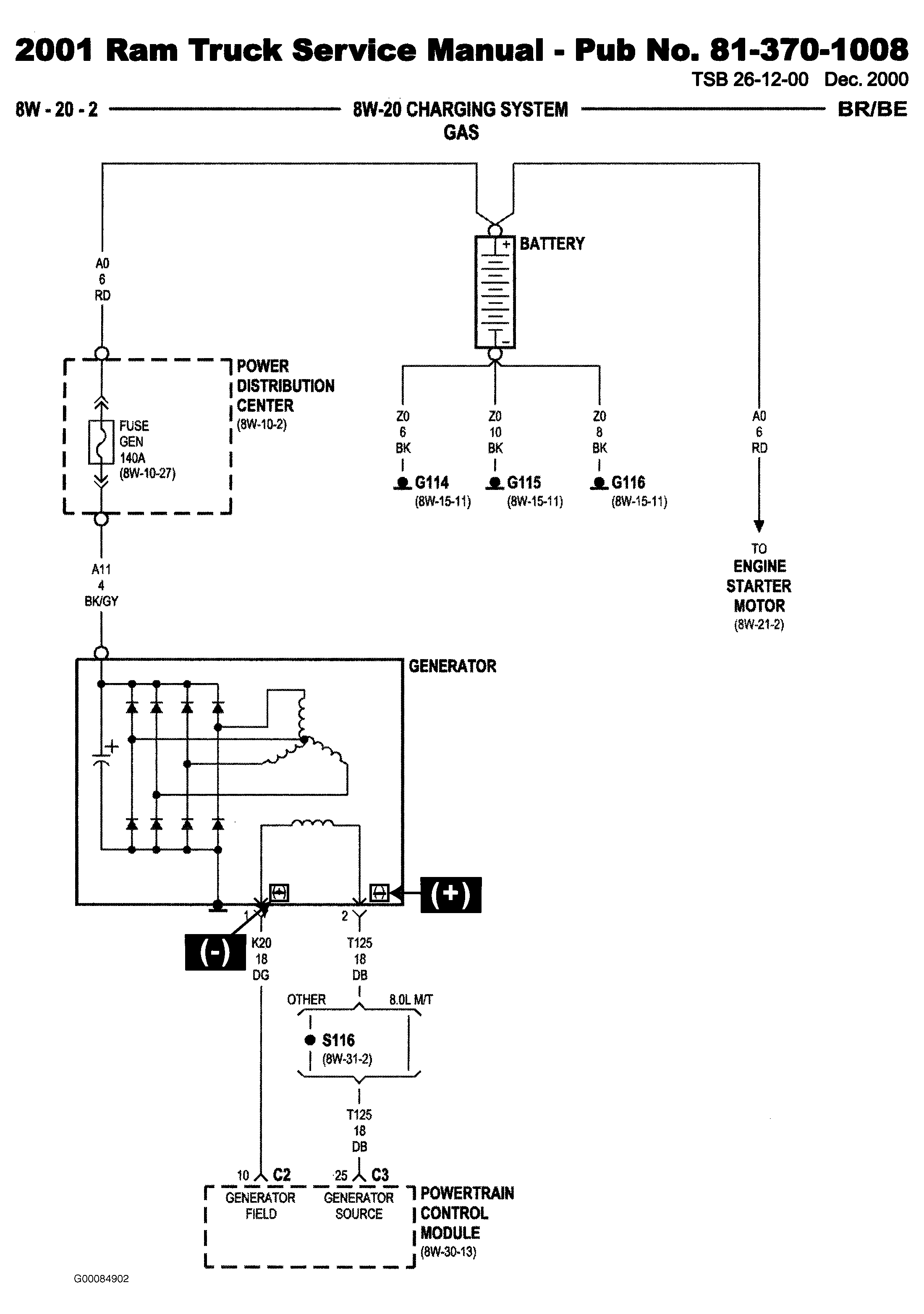

    Fig 1: 2001 BR/BE Service Manual Revision - Page 8W-20-2
    G00084902

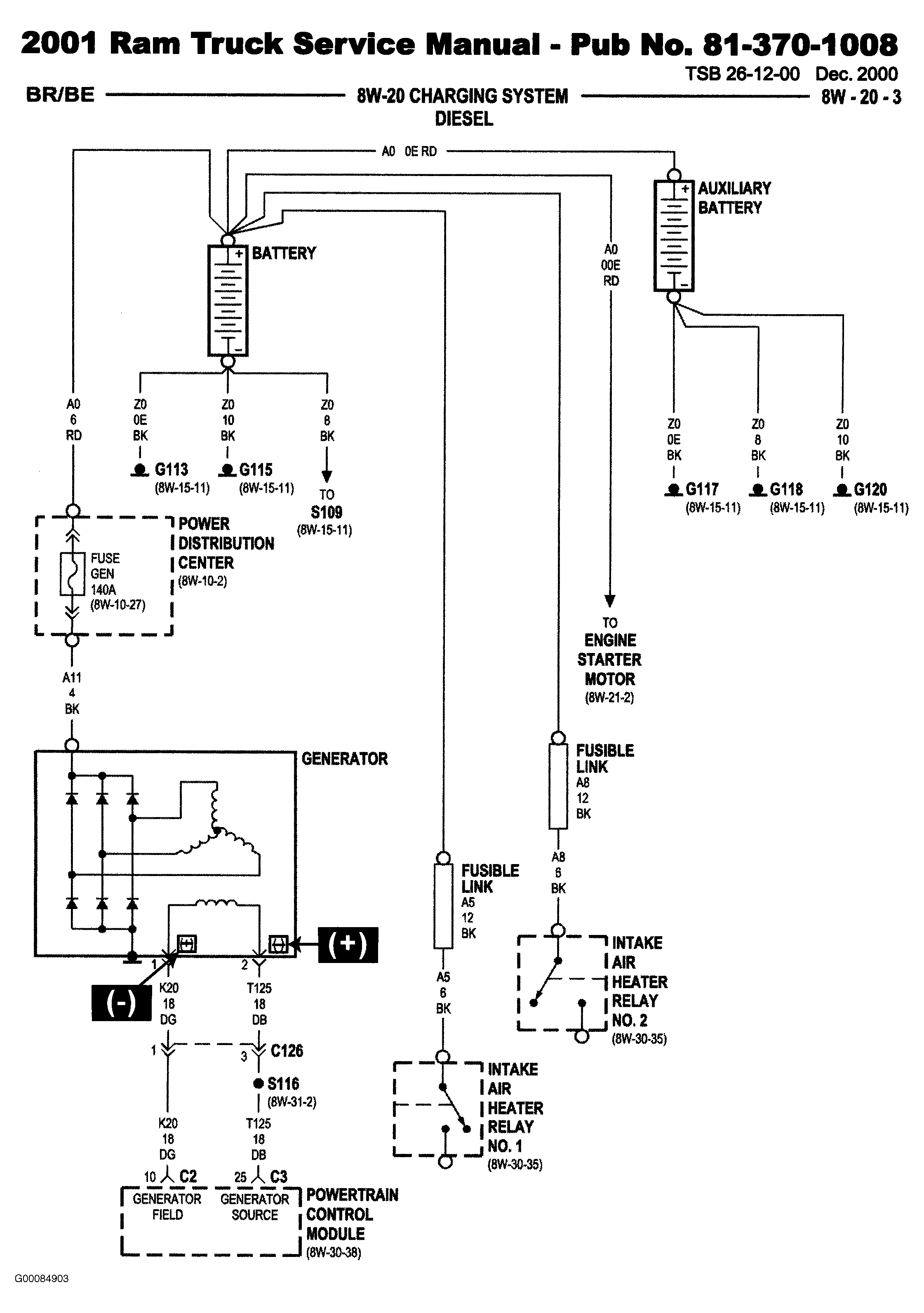

    Fig 2: 2001 BR/BE Service Manual Revision - Page 8W-20-3
    G00084903

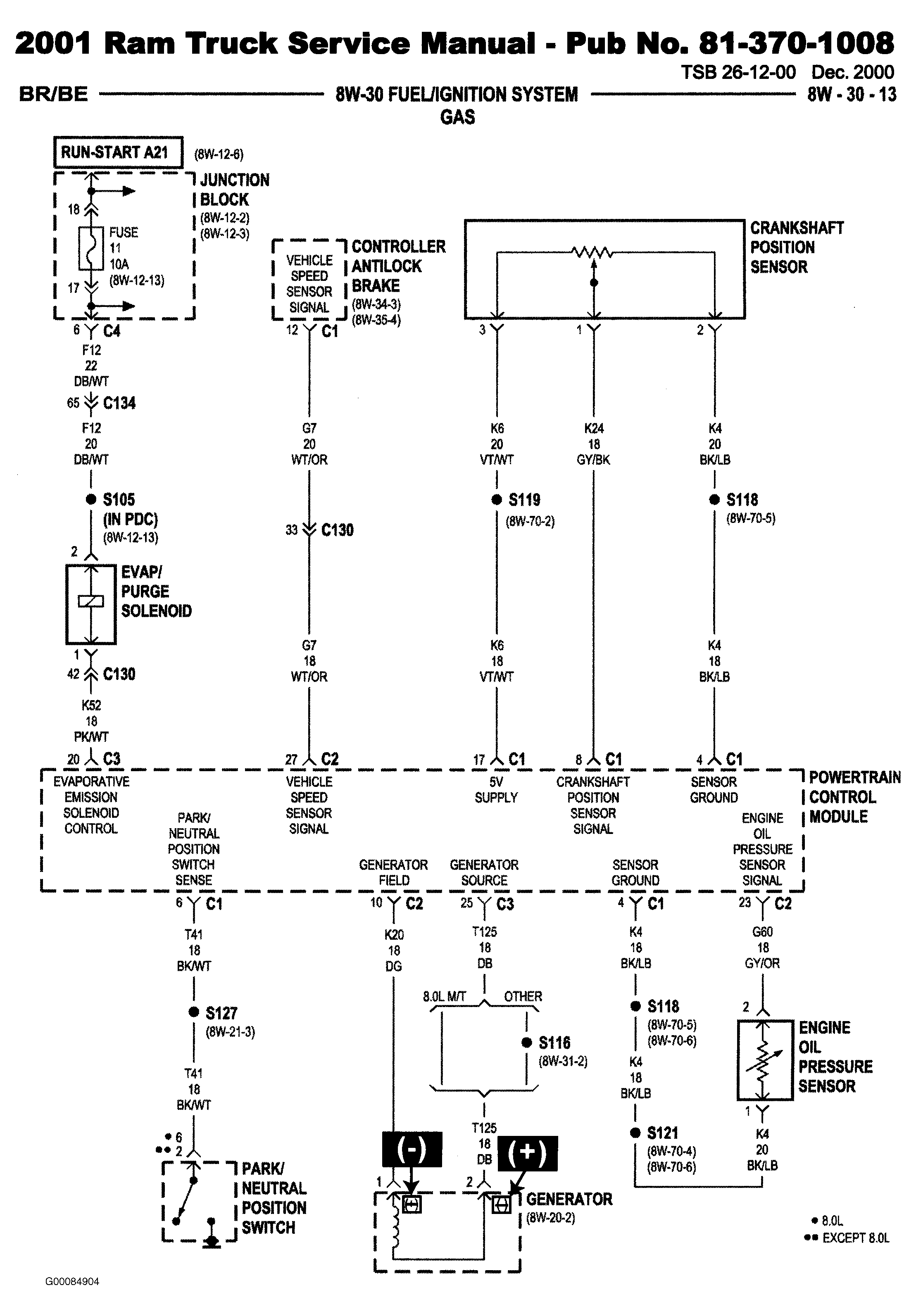

    Fig 3: 2001 BR/BE Service Manual Revision - Page 8W-30-13
    G00084904

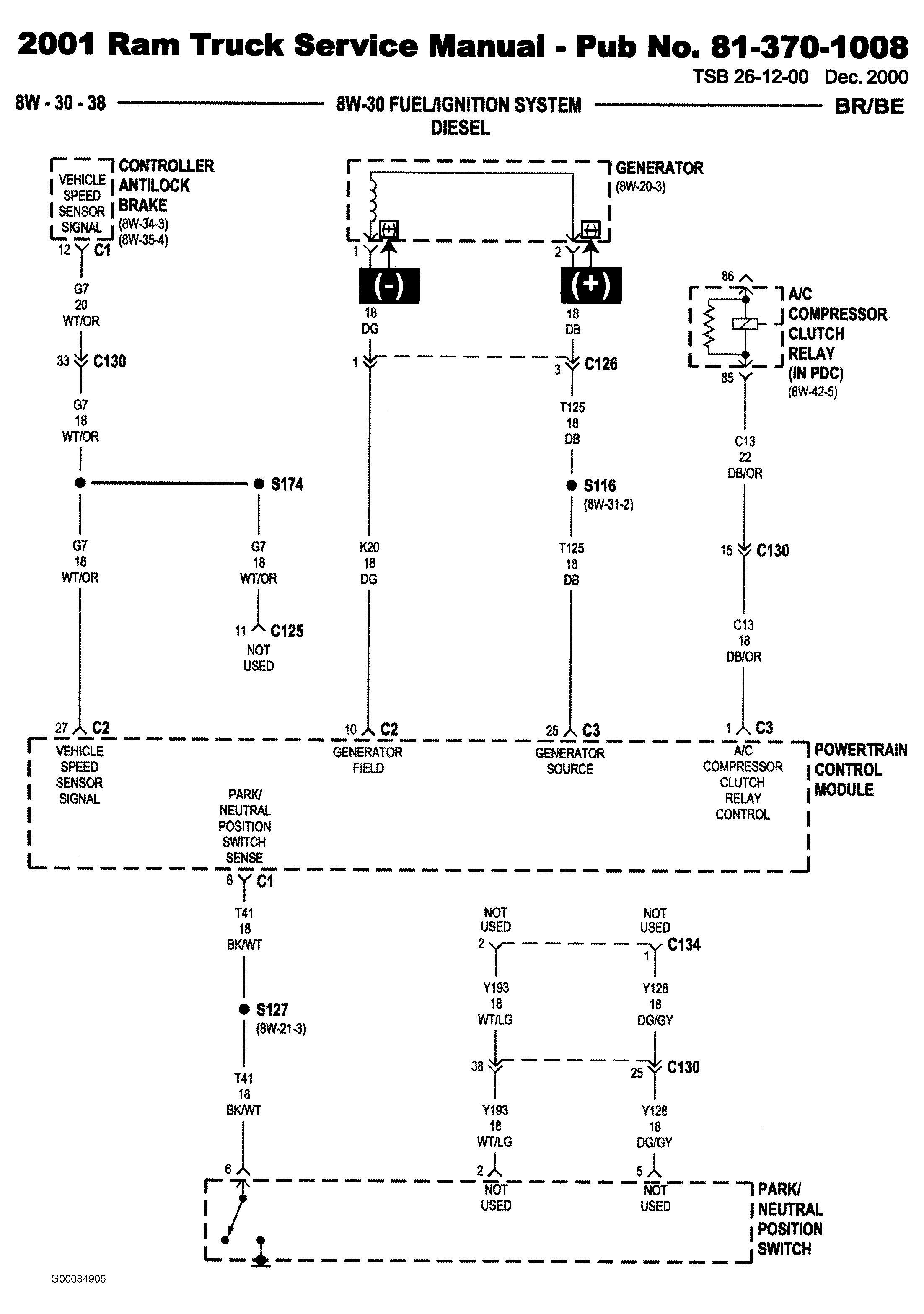

    Fig 4: 2001 BR/BE Service Manual Revision - Page 8W-30-38
    G00084905

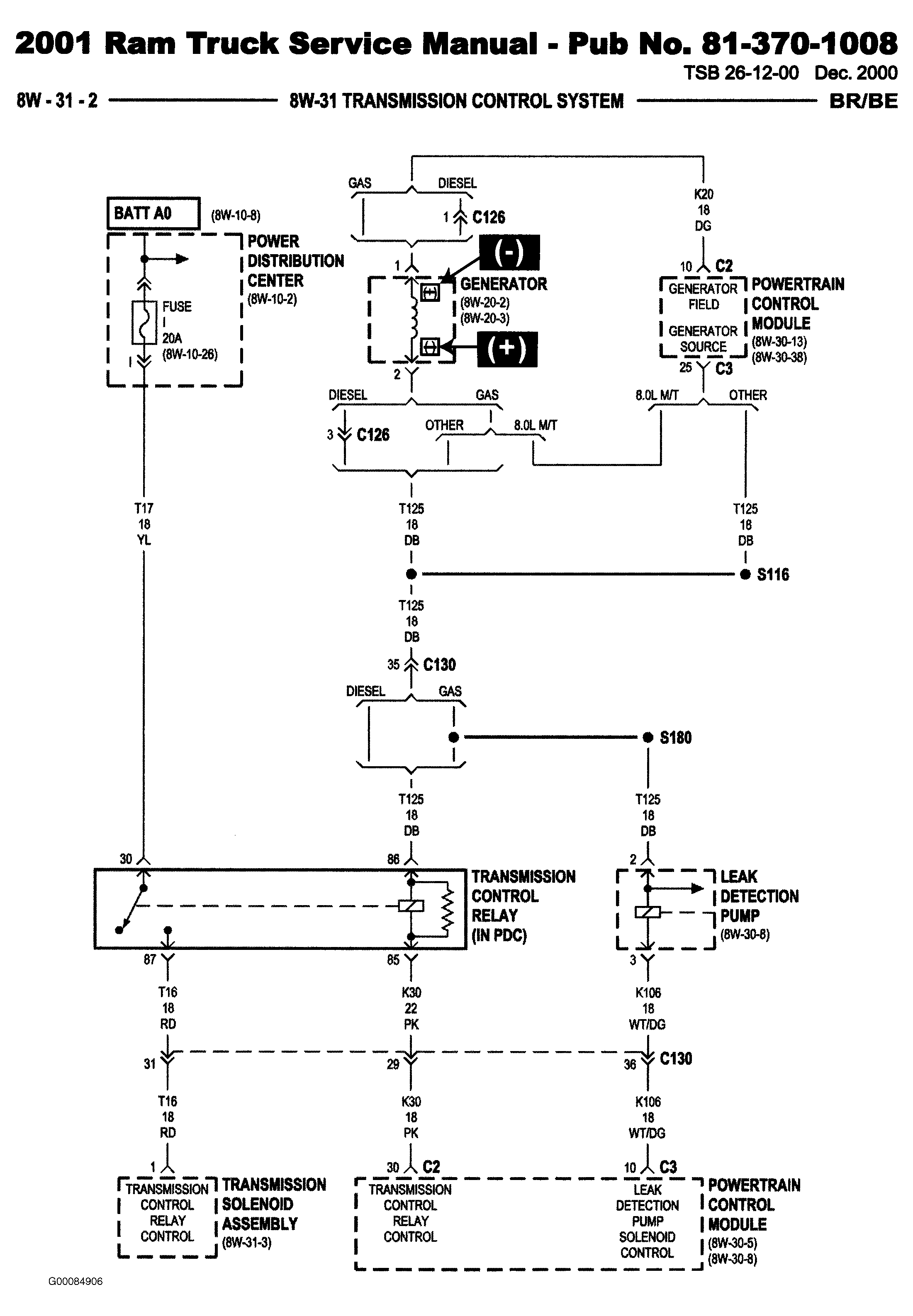

    Fig 5: 2001 BR/BE Service Manual Revision - Page 8W-31-2
    G00084906

2001 Sebring Convertible Service Manual - Publication Number 81-270-1021

  1. PAGES
    80-1, 80-10

  2. DESCRIPTION OF UPDATE
    Updates to the side impact air bag section.

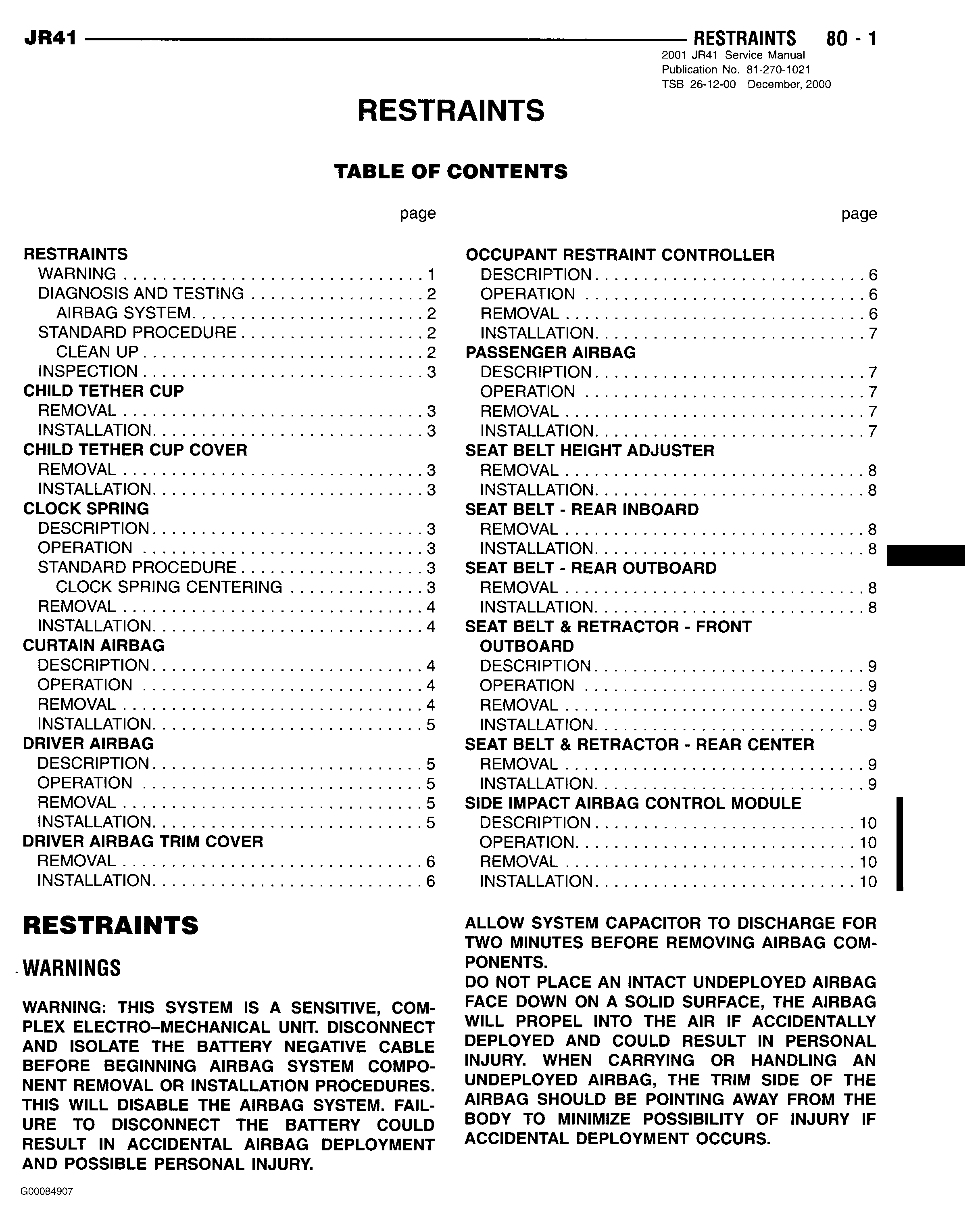

    Fig 6: 2001 JR41 Service Manual Revision - Page 80-1
    G00084907

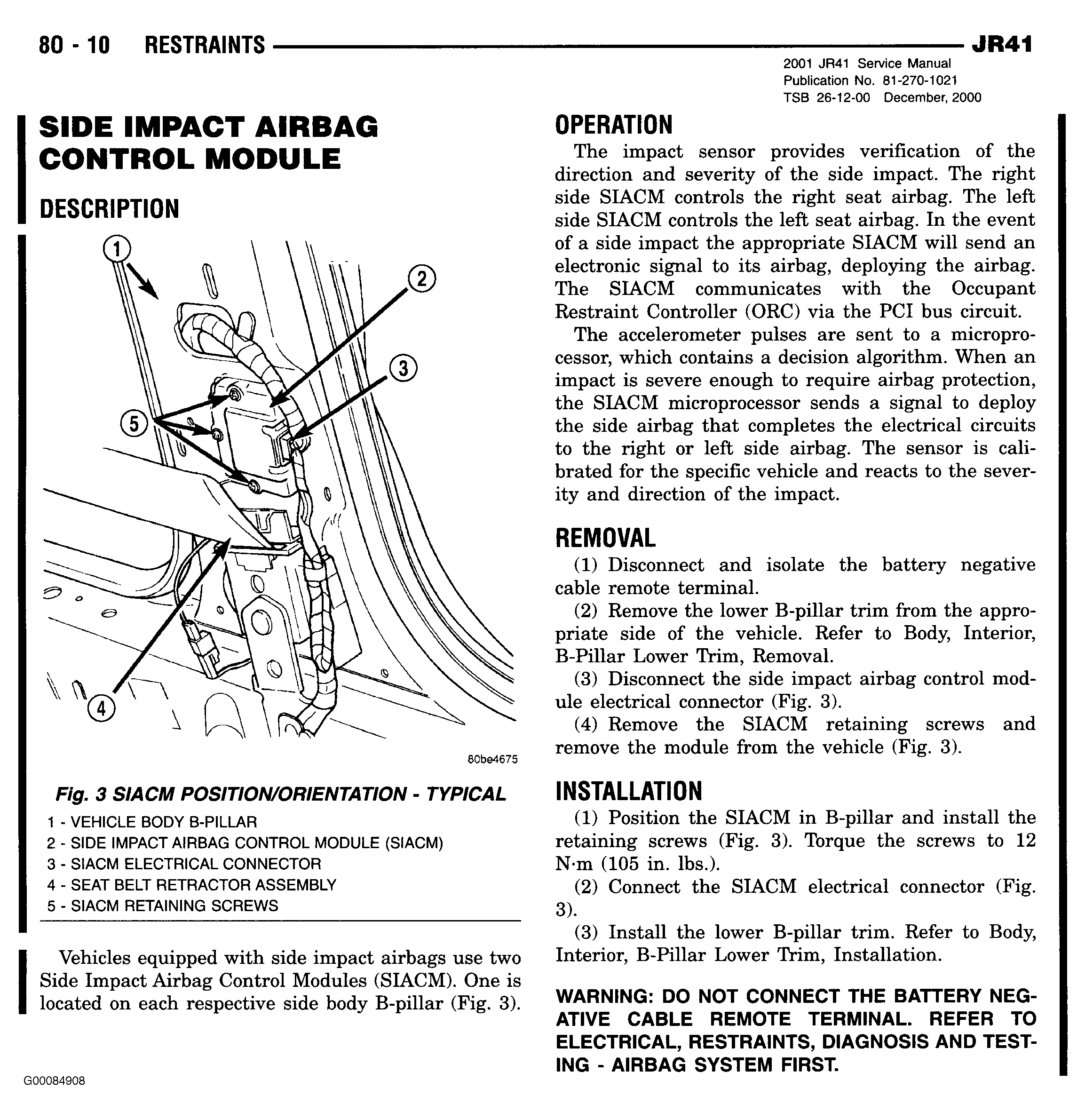

    Fig 7: 2001 JR41 Service Manual Revision - Page 80-10
    G00084908

2001 LHS/300M/Concorde/Intrepid Service Manual - Publication Number 81 -270-1040

  1. PAGES
    8W-53-2

  2. DESCRIPTION OF UPDATE
    Updates to the Wiring section.

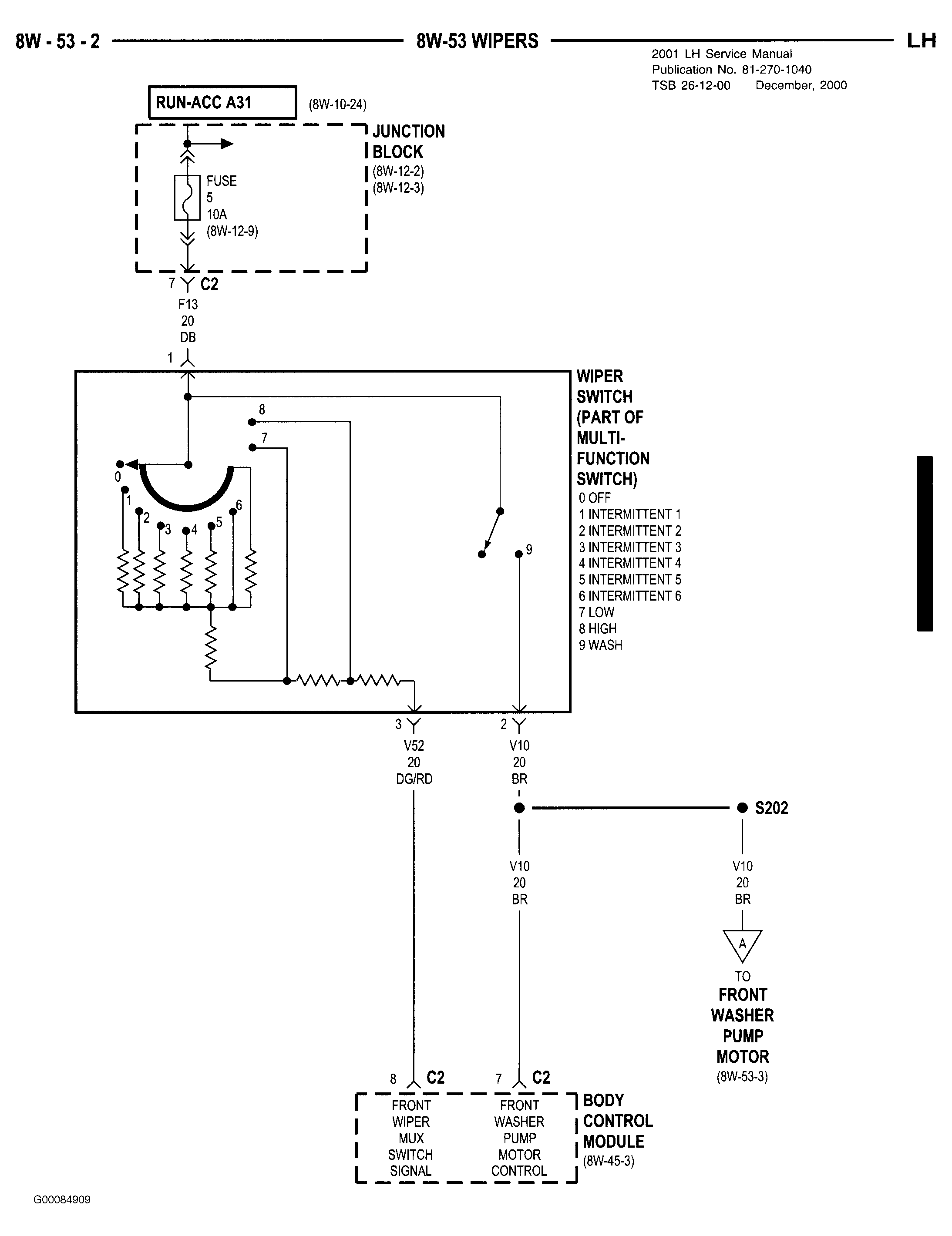

    Fig 8: 2001 LH Service Manual Revision - Page 8W-53-2
    G00084909

2000 Caravan/Voyager Service Manual - Publication Number 81-370-0005

  1. PAGES
    8L-1

  2. DESCRIPTION OF UPDATE
    Updates to the automatic headlamp system operation.

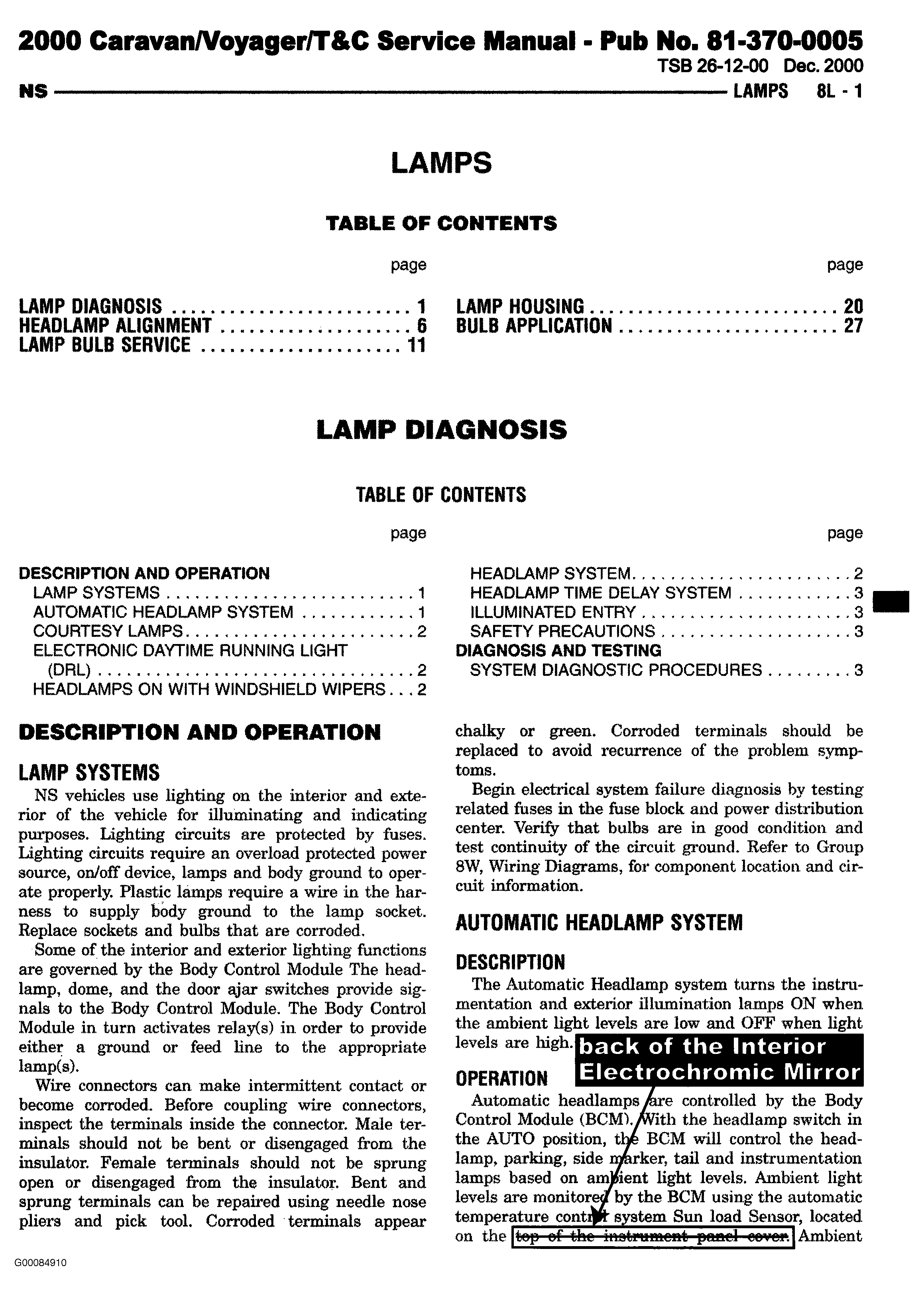

    Fig 9: 2000 NS Service Manual Revision - Page 8L-1
    G00084910

  3. PAGES
    8W-31-3, 8W-80-37, 8W-80-66, 8W-90-6

  4. DESCRIPTION OF UPDATE
    Updates to the wiring section.

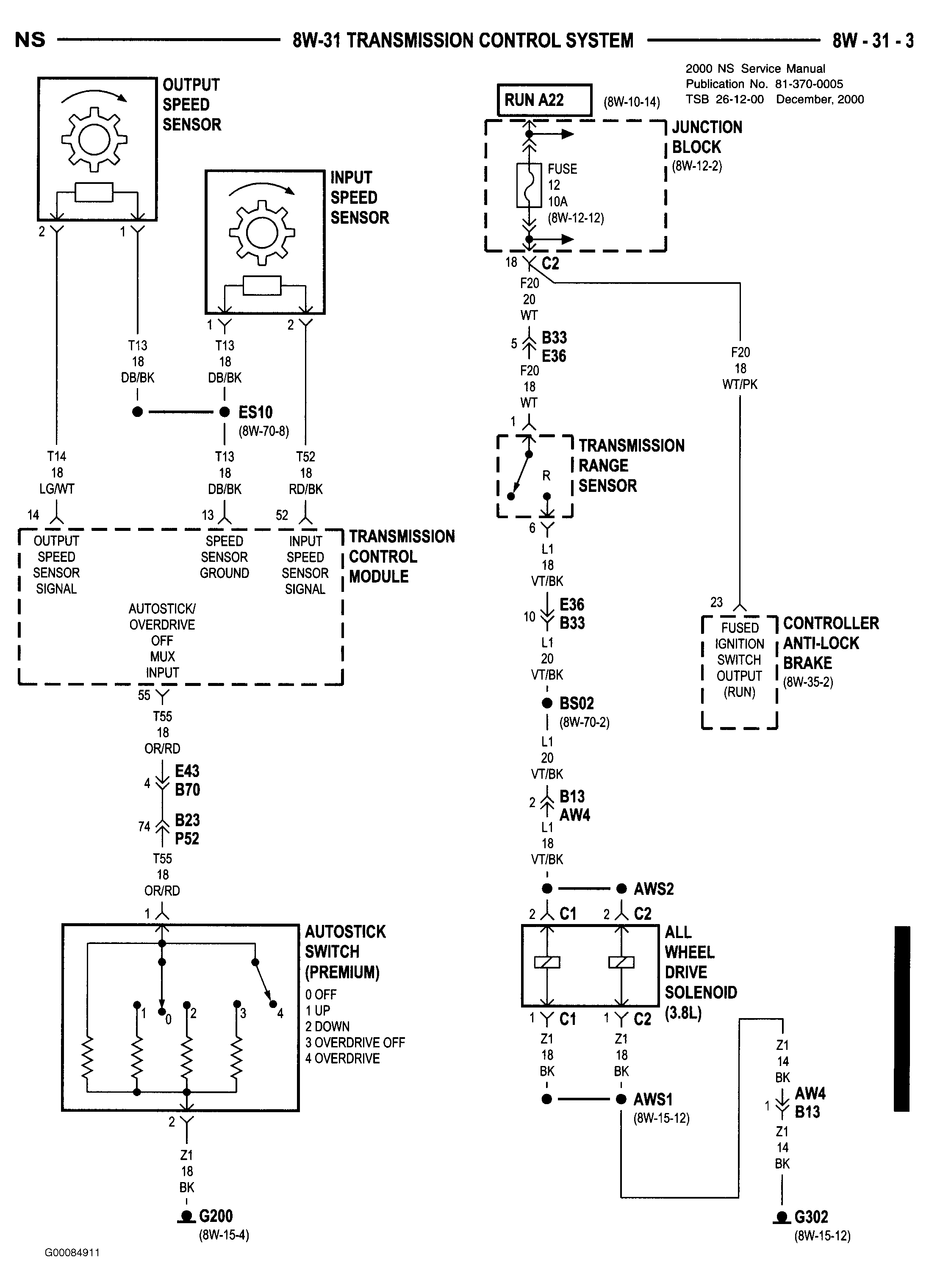

    Fig 10: 2000 NS Service Manual Revision - Page 8W-31-3
    G00084911

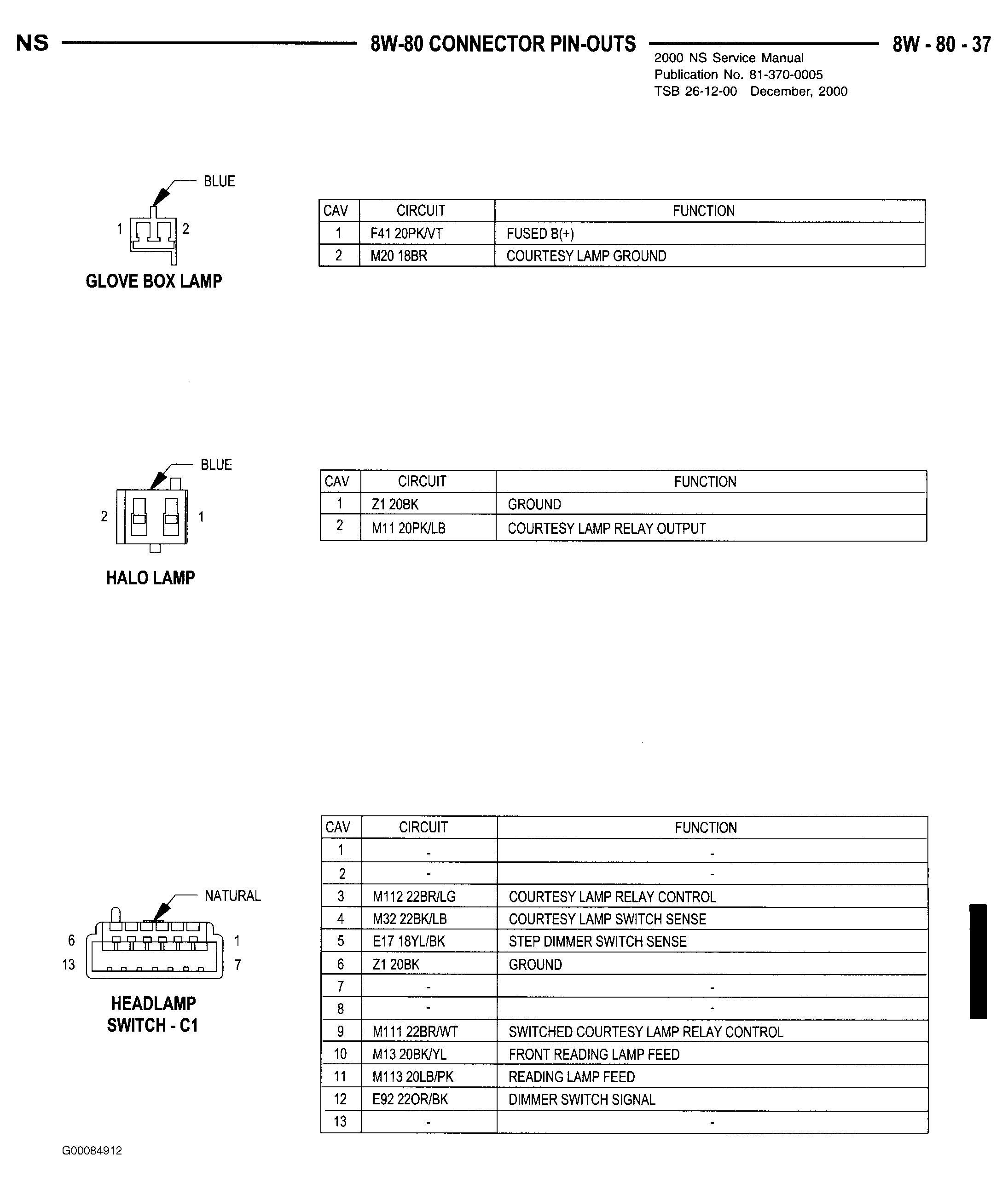

    Fig 11: 2000 NS Service Manual Revision - Page 8W-80-37
    G00084912

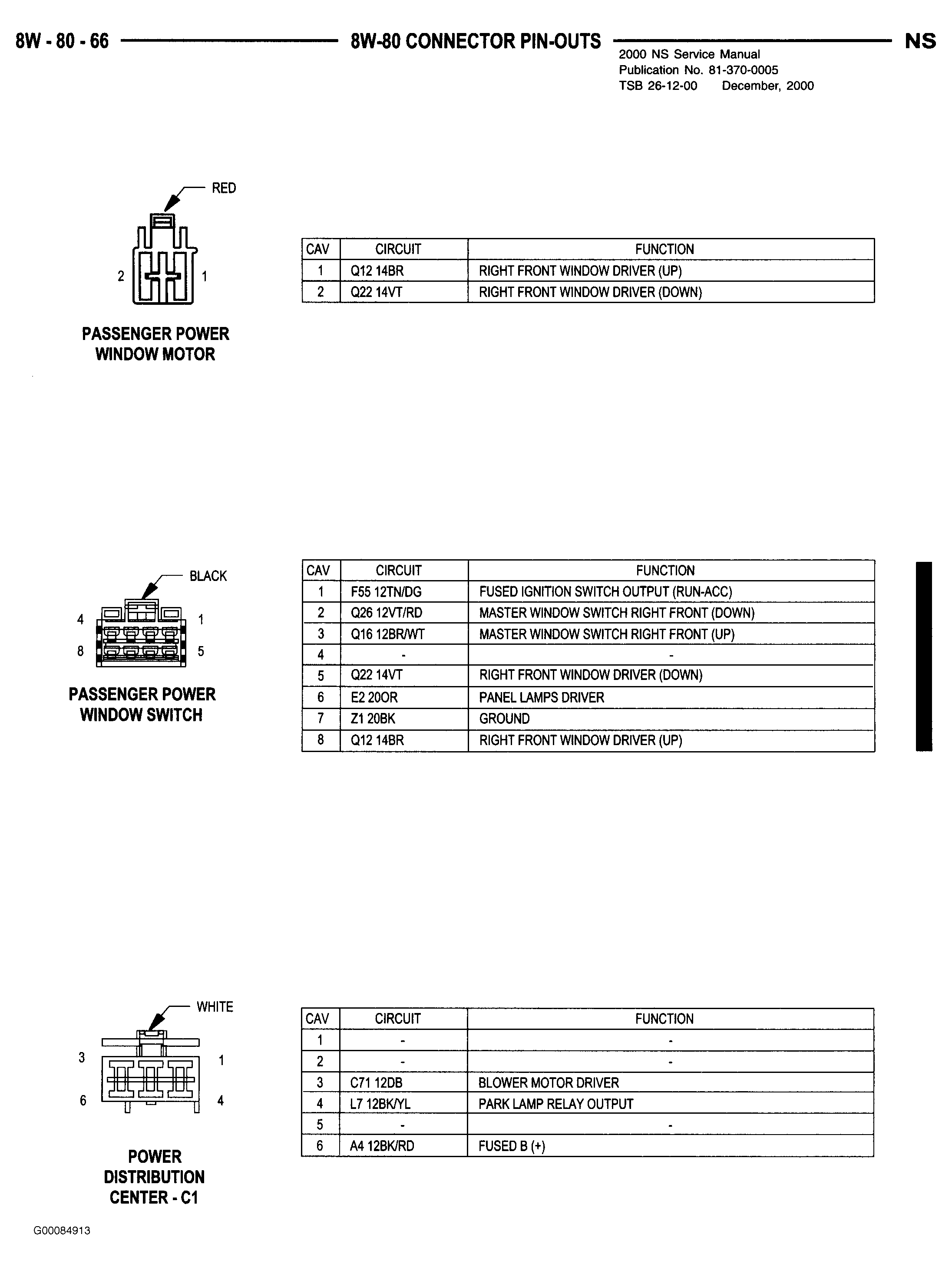

    Fig 12: 2000 NS Service Manual Revision - Page 8W-80-66
    G00084913

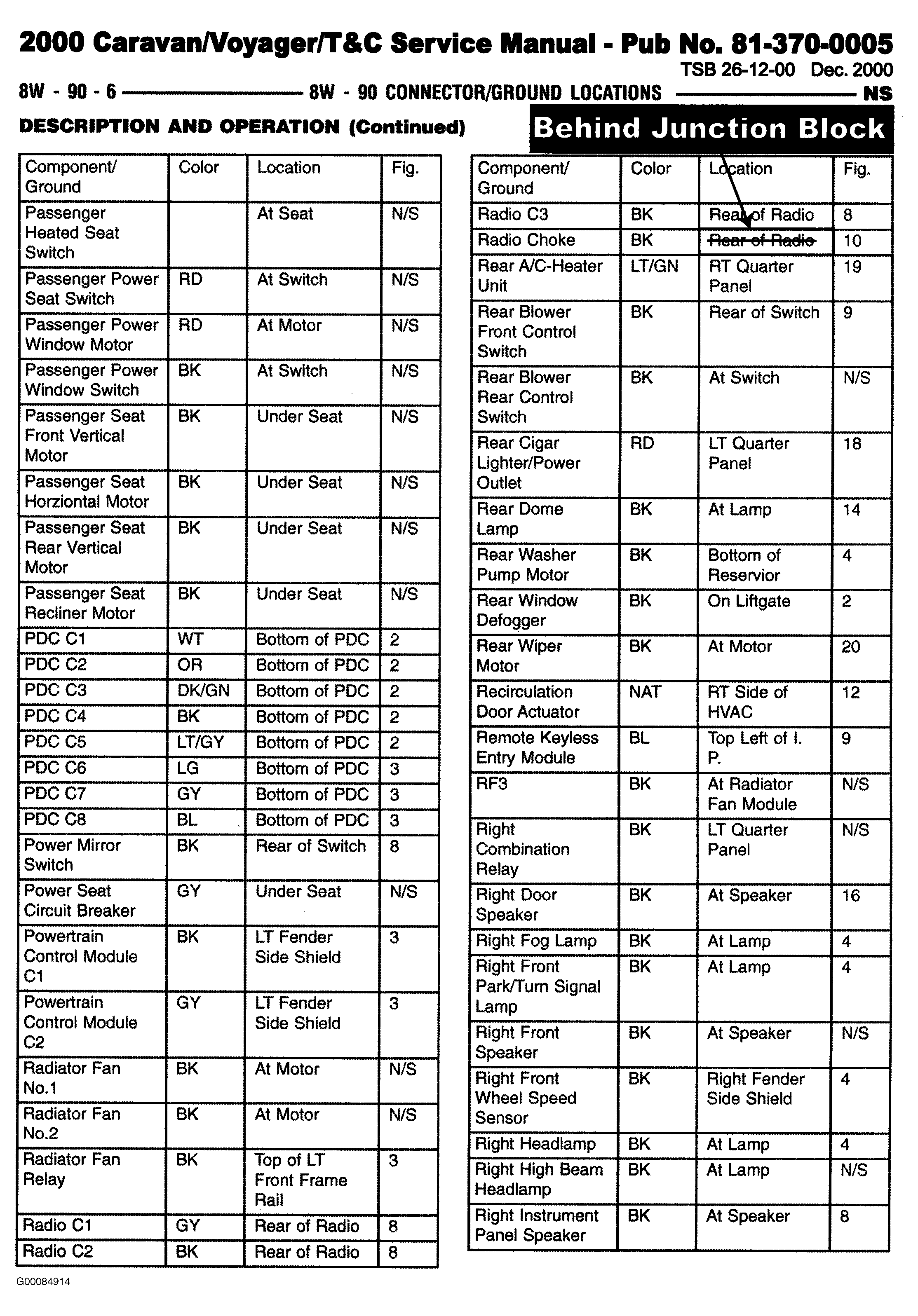

    Fig 13: 2000 NS Service Manual Revision - Page 8W-90-6
    G00084914

2000 Sebring Convertible Service Manual - Publication Number 81-270-0022

  1. PAGES
    24-11

  2. DESCRIPTION OF UPDATE
    Updates to the air conditioning charge procedure.

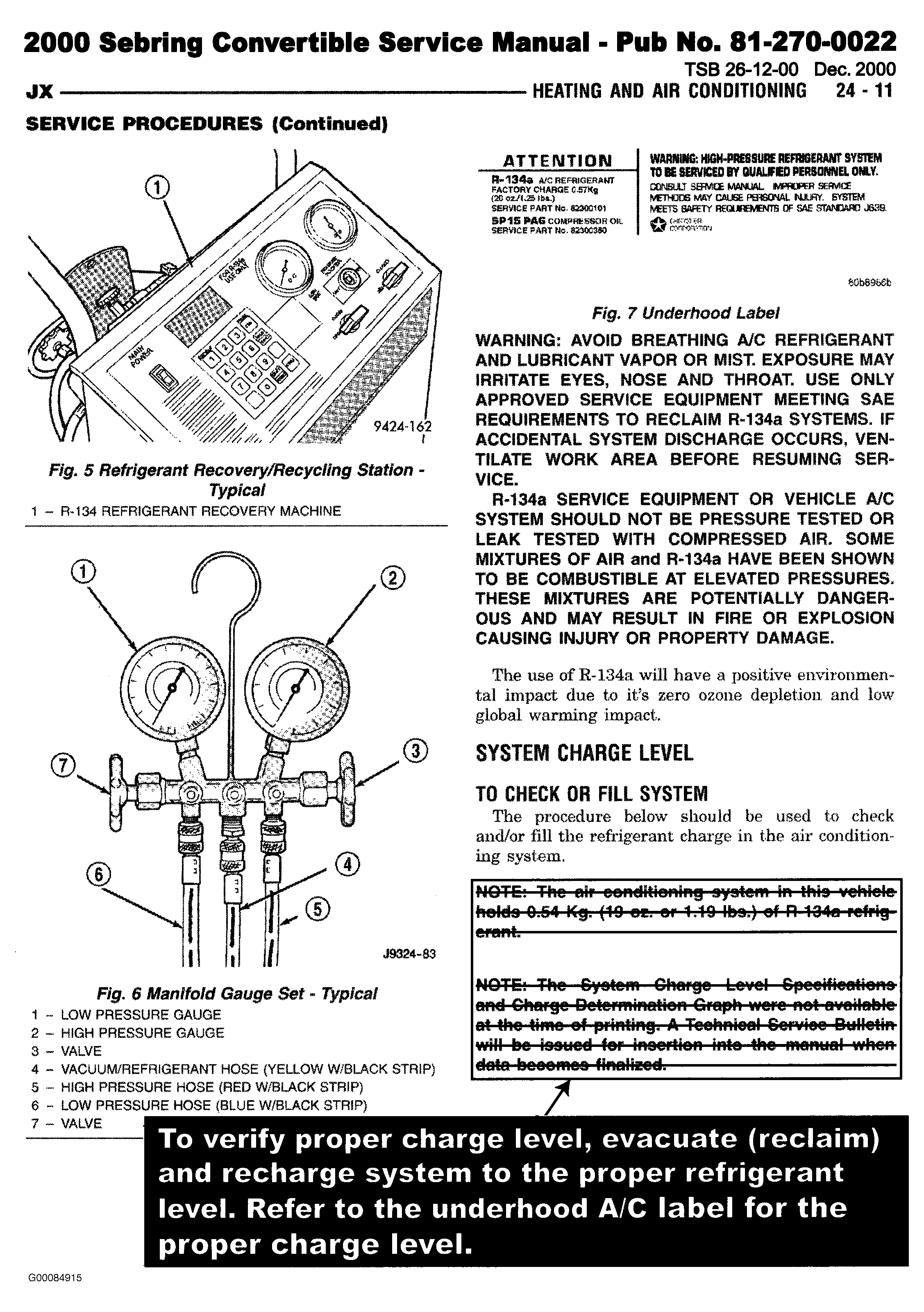

    Fig 14: 2000 JX Service Manual Revision - Page 24-11
    G00084915

2000 Cirrus/Stratus Service Manual - Publication Number 81-270-0021

  1. PAGES
    24-12

  2. DESCRIPTION OF UPDATE
    Updates to the air conditioning charge procedure.

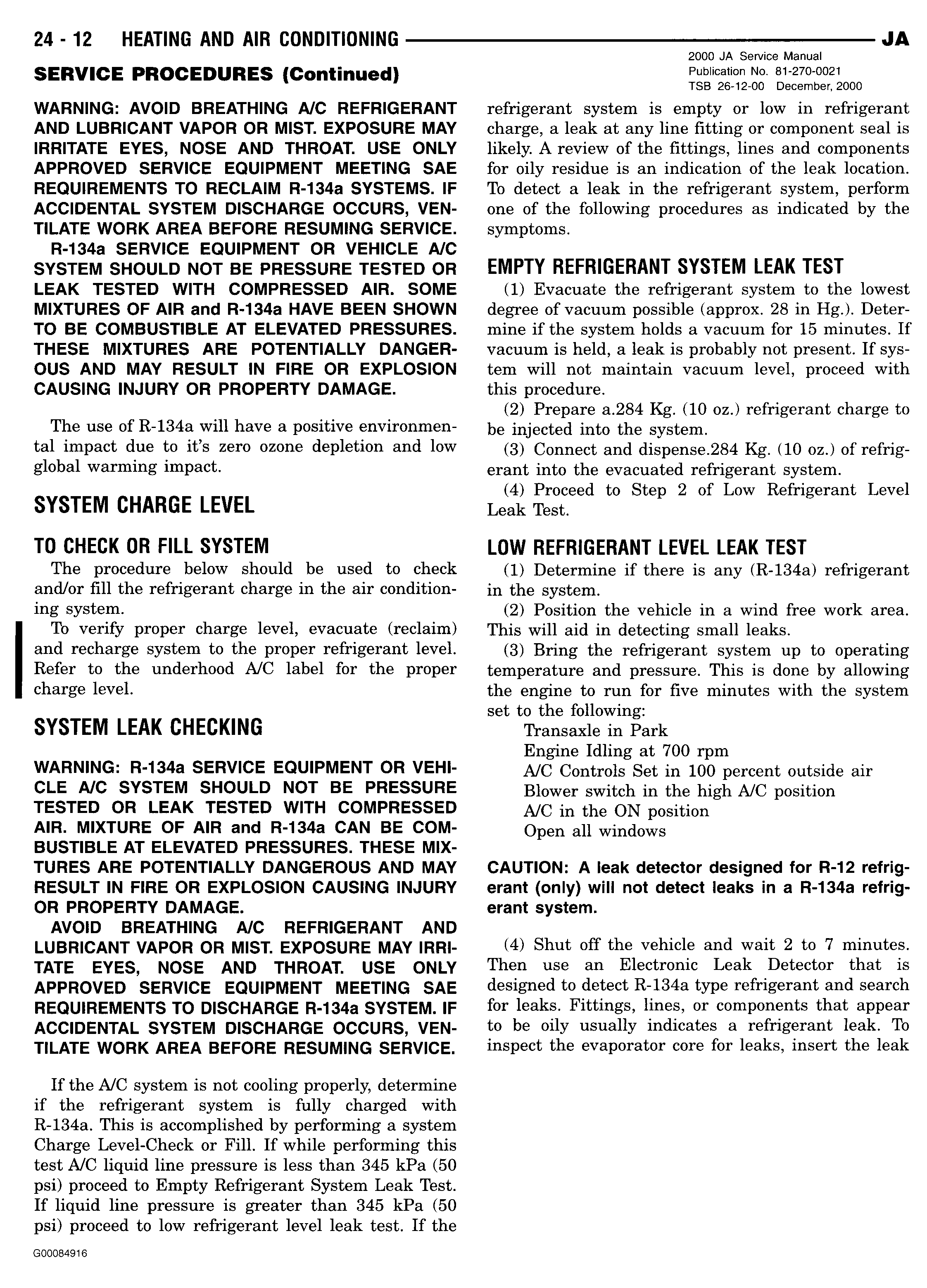

    Fig 15: 2000 JA Service Manual Revision - Page 24-12
    G00084916

2000 LHS/300M/Concorde/Intrepid Service Manual - Publication Number 81-270-0040

  1. PAGES
    14-2

  2. DESCRIPTION OF UPDATE
    Updates to the fuel pressure specification.

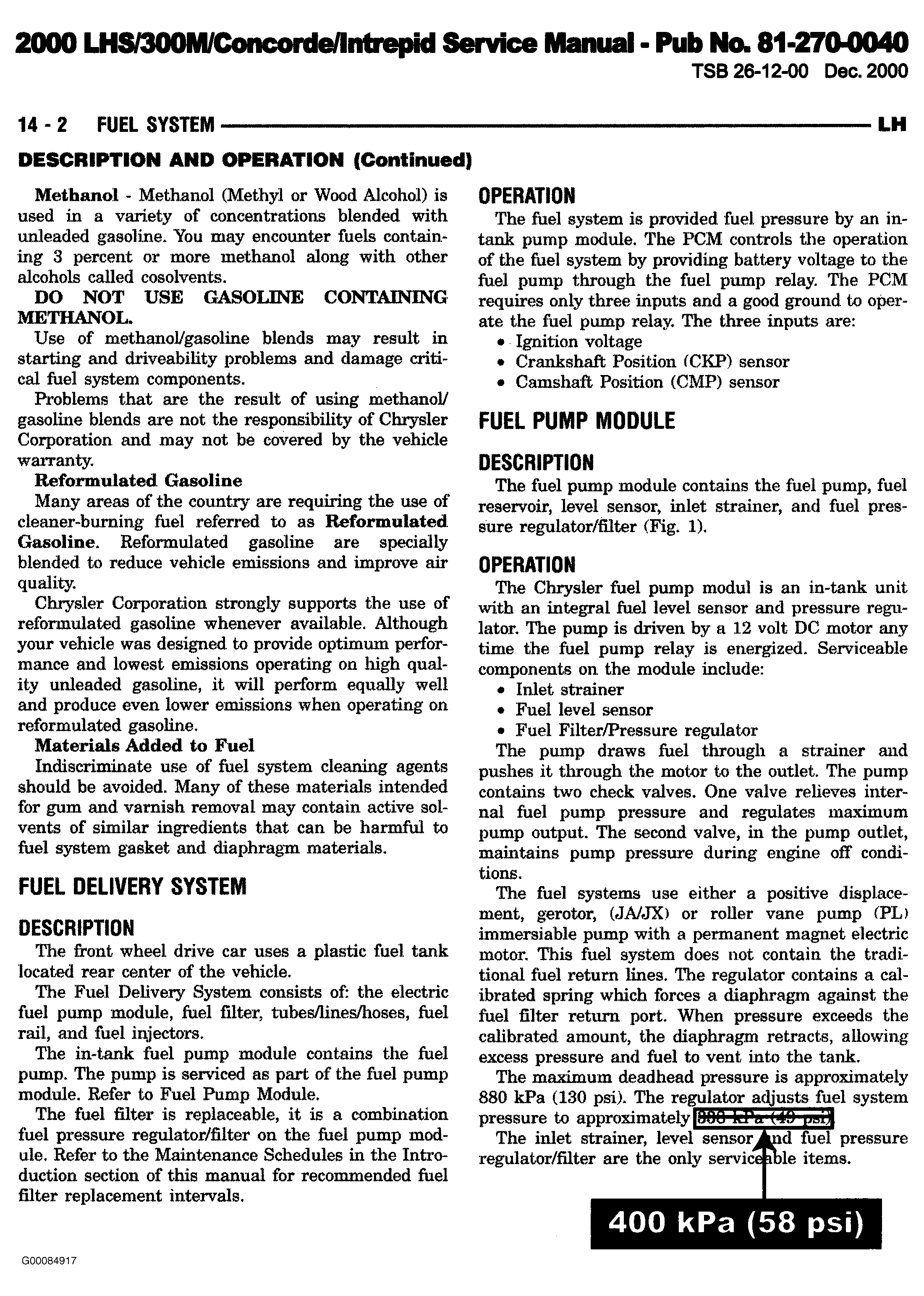

    Fig 16: 2000 LH Service Manual Revision - Page 14-2
    G00084917

  3. PAGES
    8T-2, 8V-3, 8W-53-2

  4. DESCRIPTION OF UPDATE
    Updates to the Electrical/Wiring section.

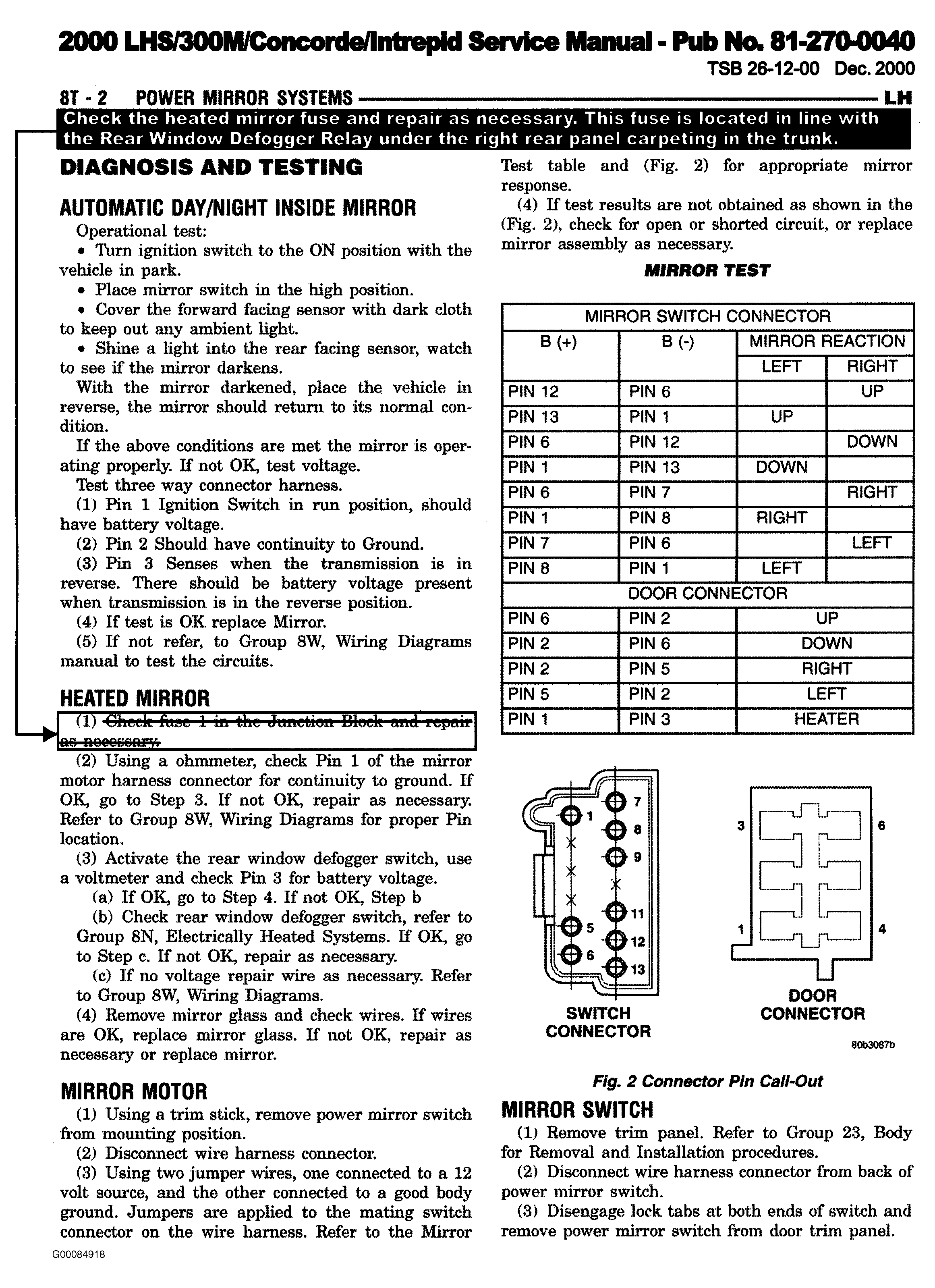

    Fig 17: 2000 LH Service Manual Revision - Page 8T-2
    G00084918

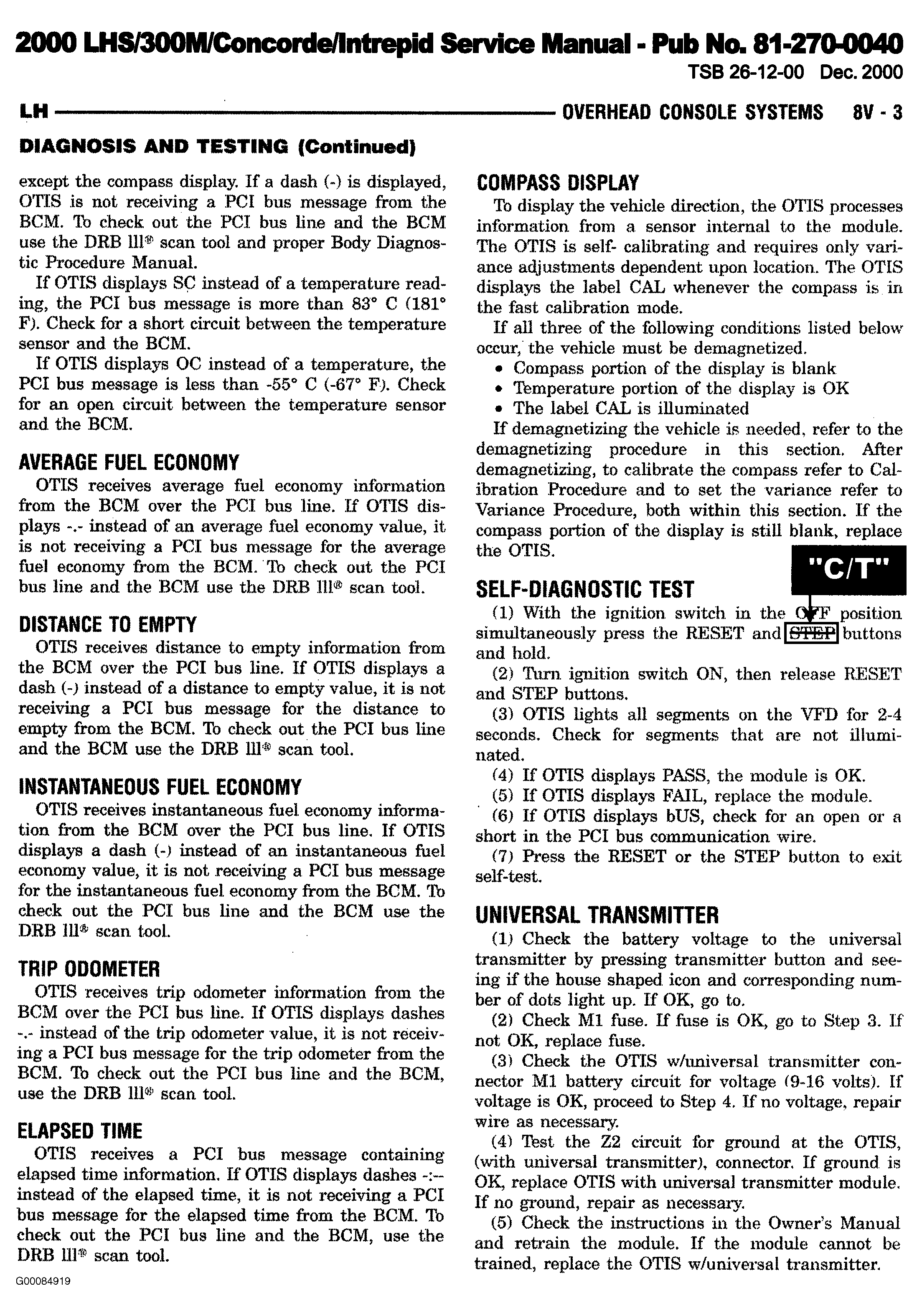

    Fig 18: 2000 LH Service Manual Revision - Page 8V-3
    G00084919

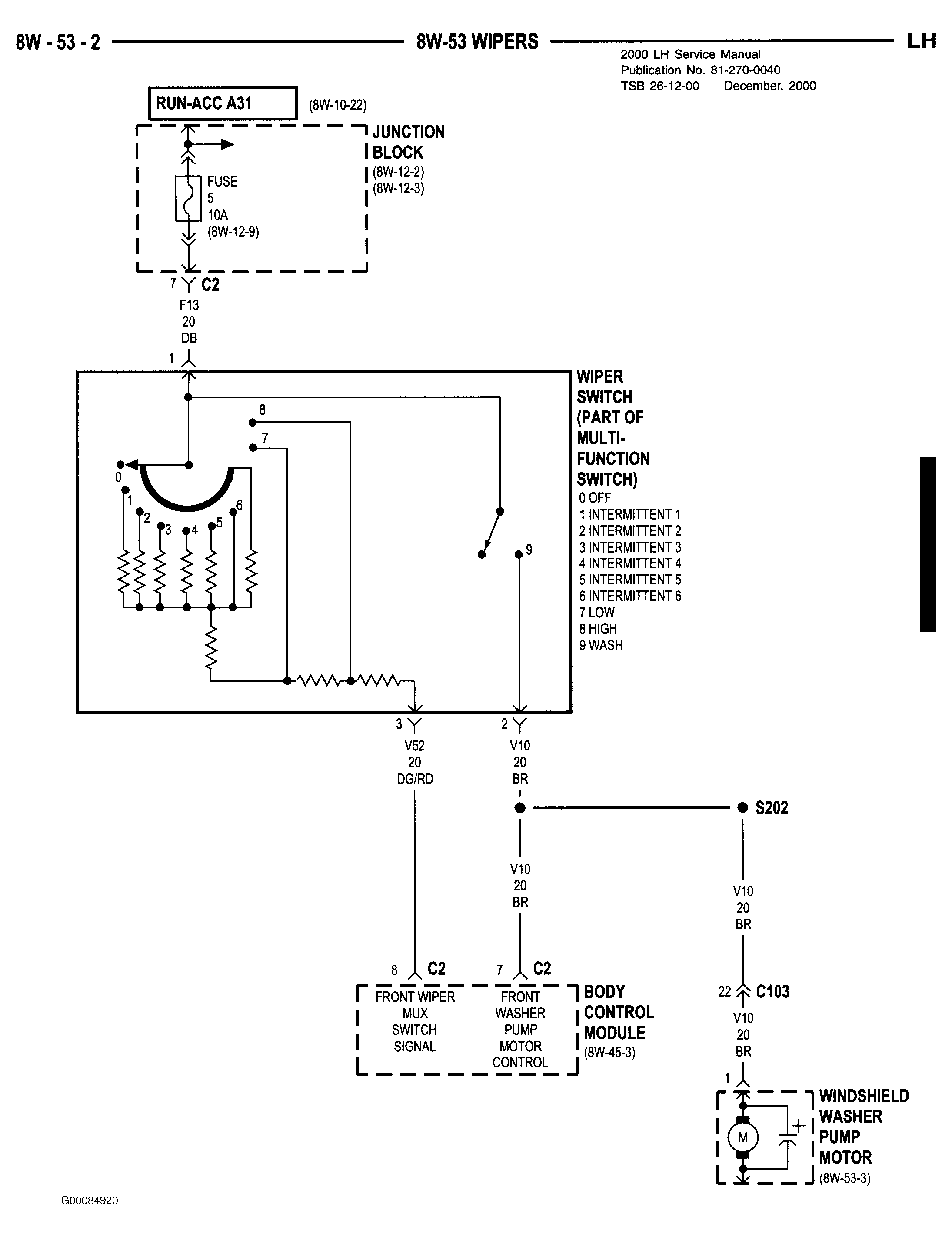

    Fig 19: 2000 LH Service Manual Revision - Page 8W-53-2
    G00084920

2000 Grand Cherokee Service Manual - Publication Number 81-370-0047

  1. PAGES
    24-28, 24-50

  2. DESCRIPTION OF UPDATE
    Updates to the heating and Air Conditioning section.

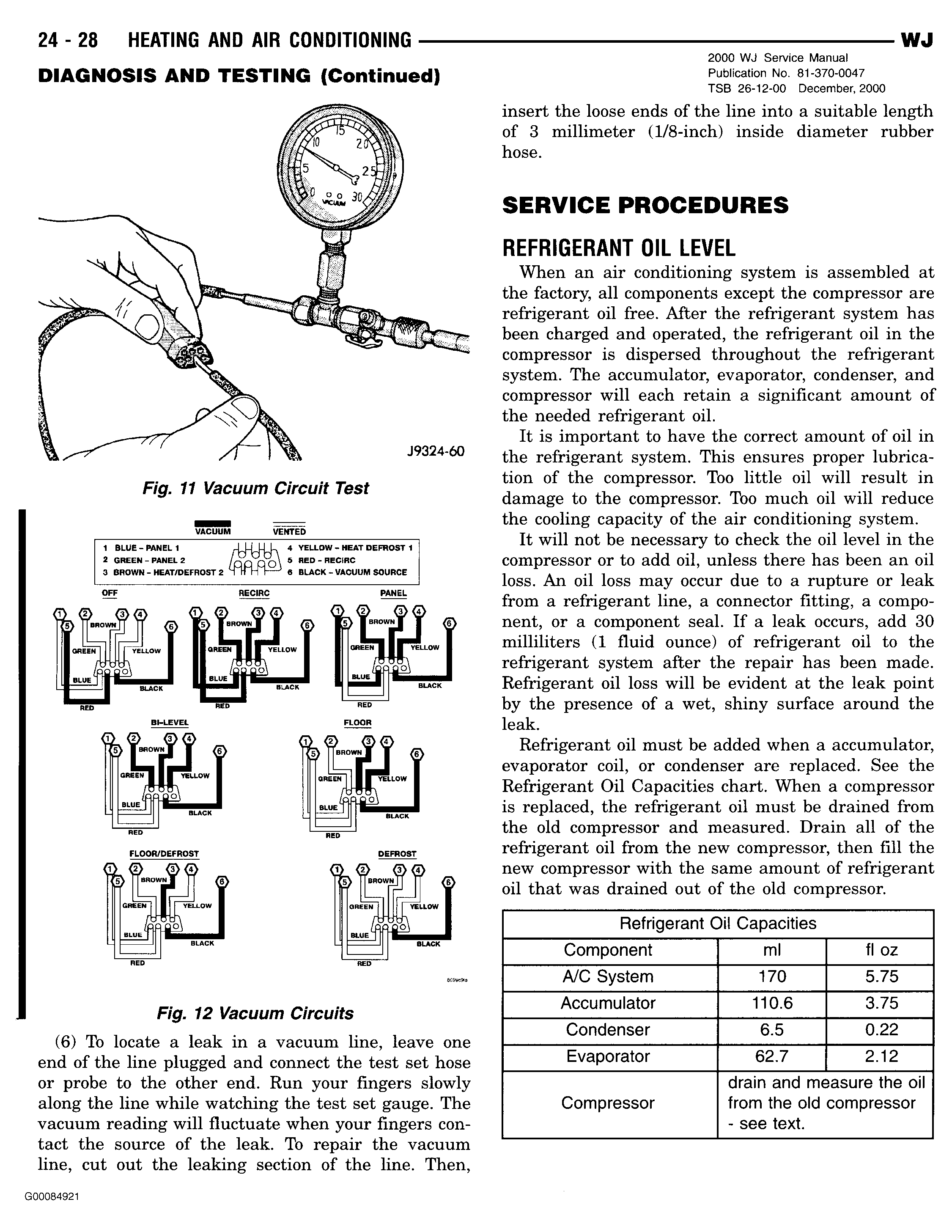

    Fig 20: 2000 WJ Service Manual Revision - Page 24-28
    G00084921

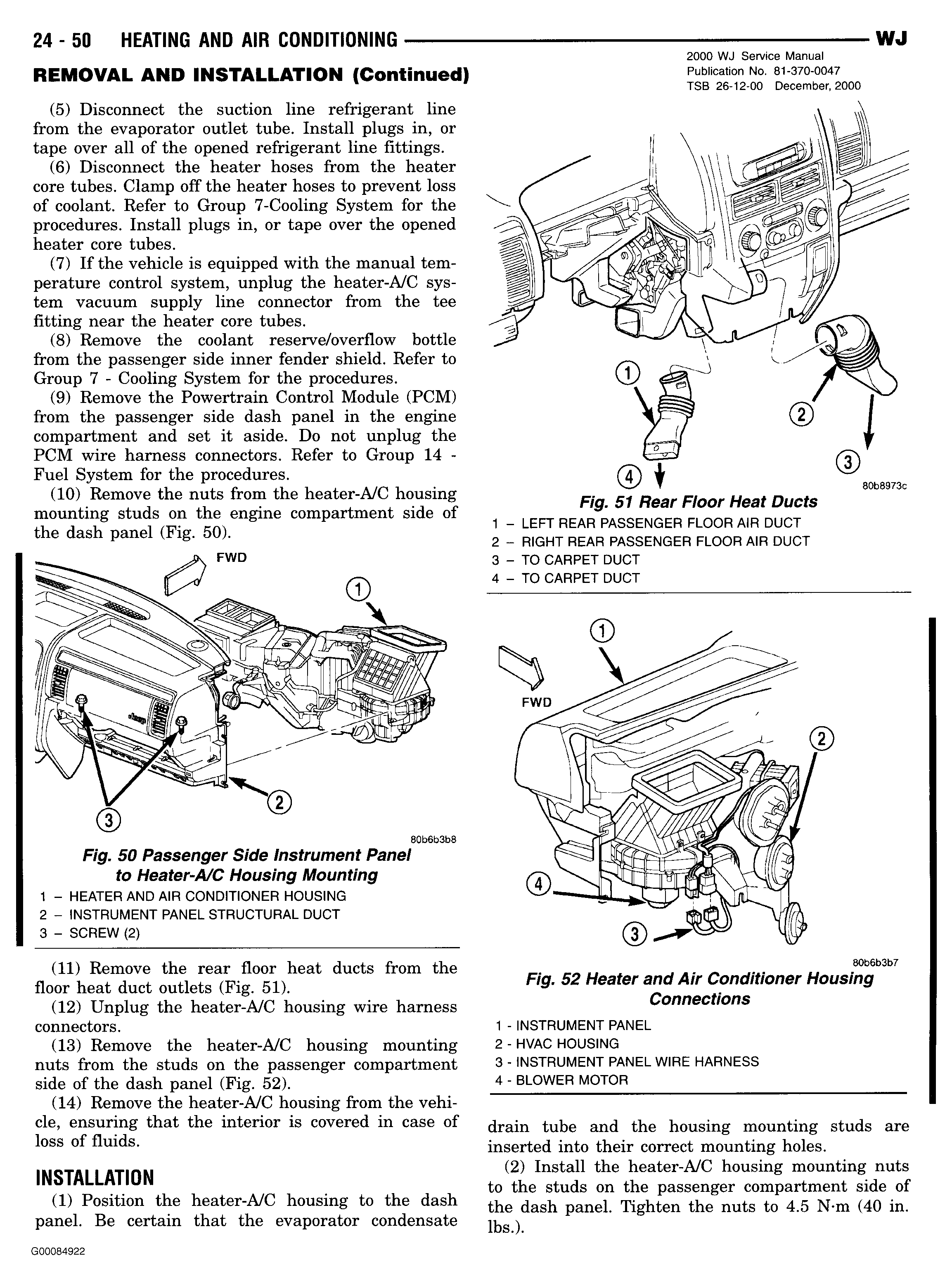

    Fig 21: 2000 WJ Service Manual Revision - Page 24-50
    G00084922

2000 Neon Service Manual - Publication Number 81-270-0025

  1. PAGES
    8W-10-4, 8W-10-7, 8W-10-14, 8W-42-2

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

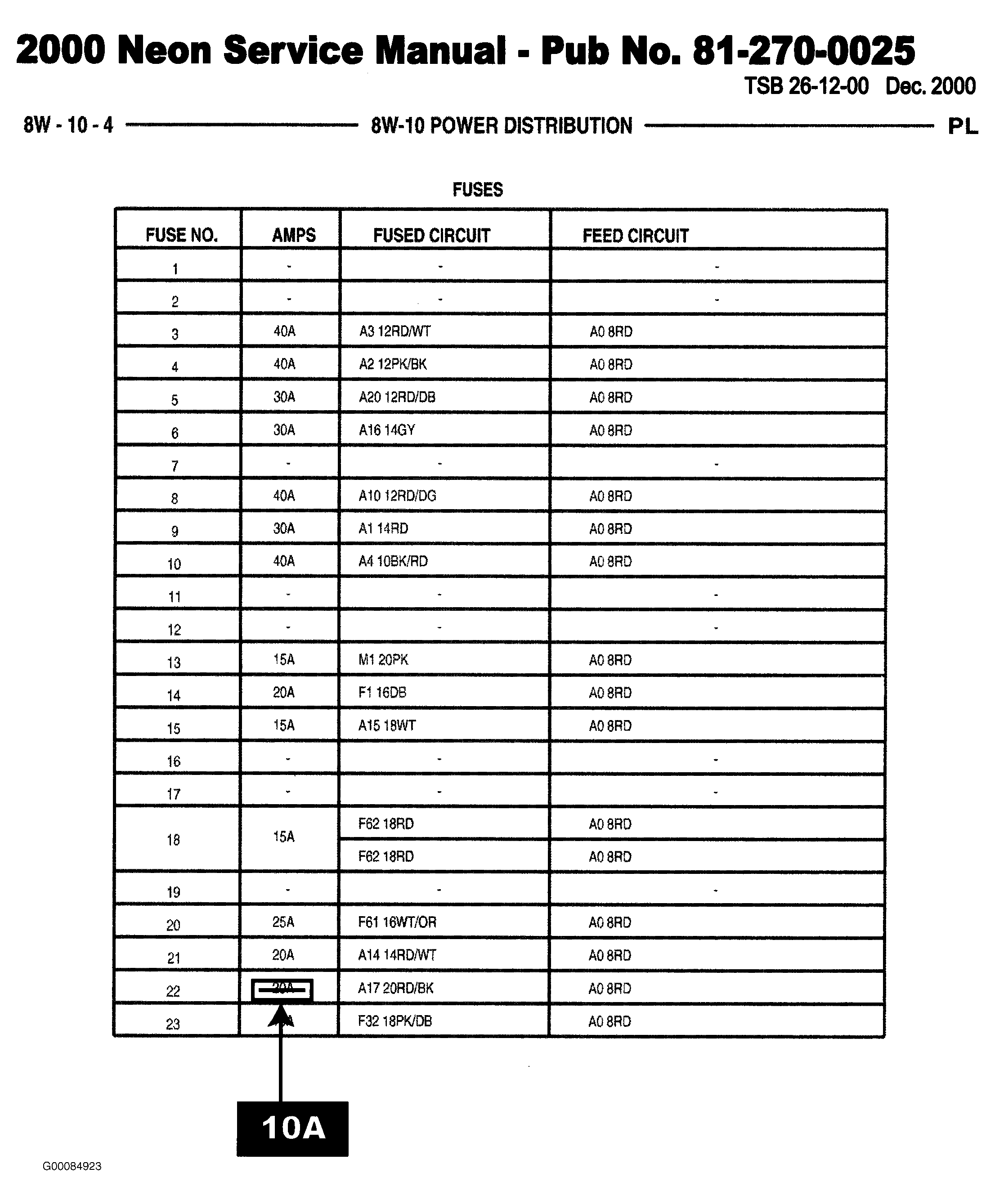

    Fig 22: 2000 PL Service Manual Revision - Page 8W-10-4
    G00084923

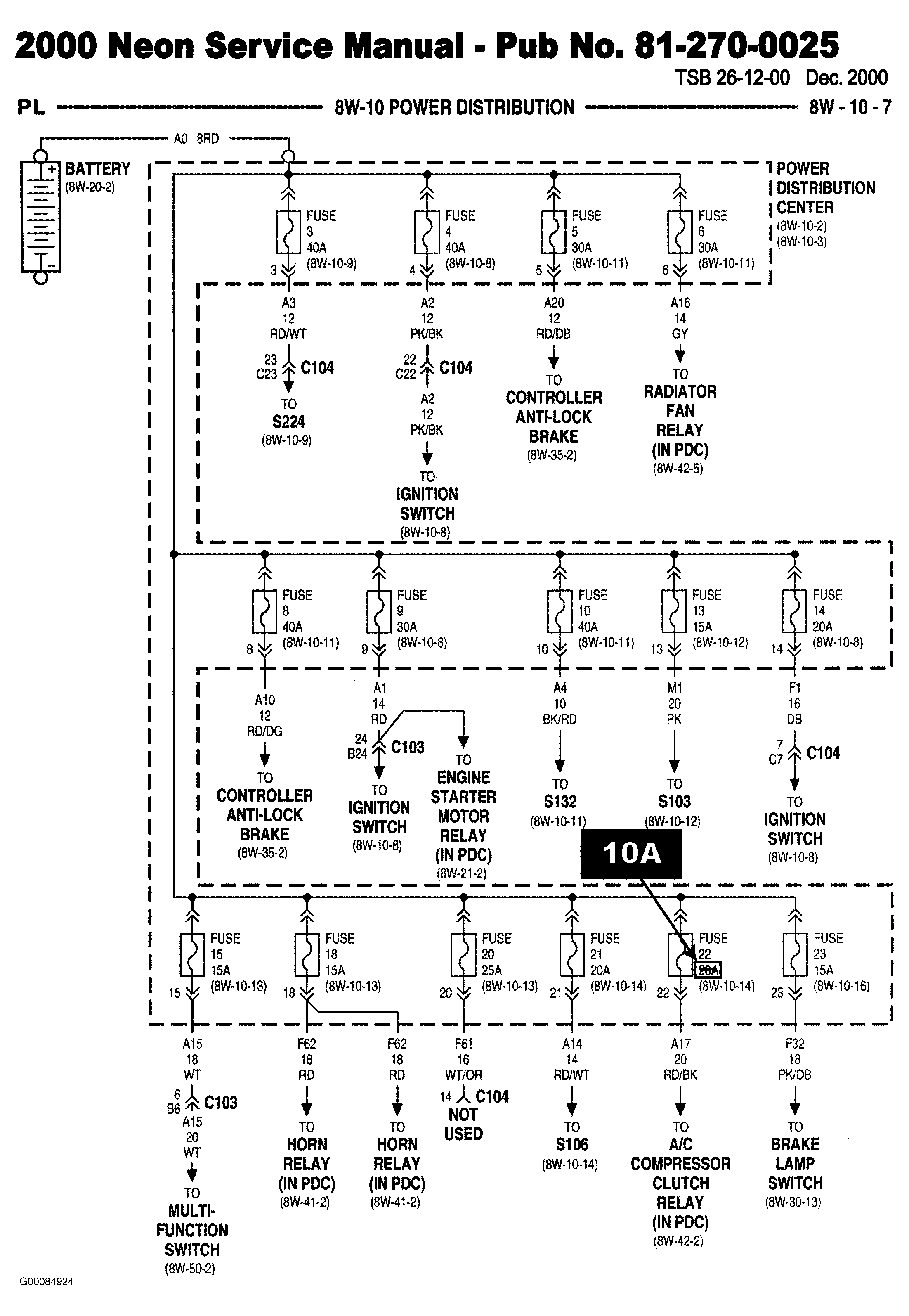

    Fig 23: 2000 PL Service Manual Revision - Page 8W-10-7
    G00084924

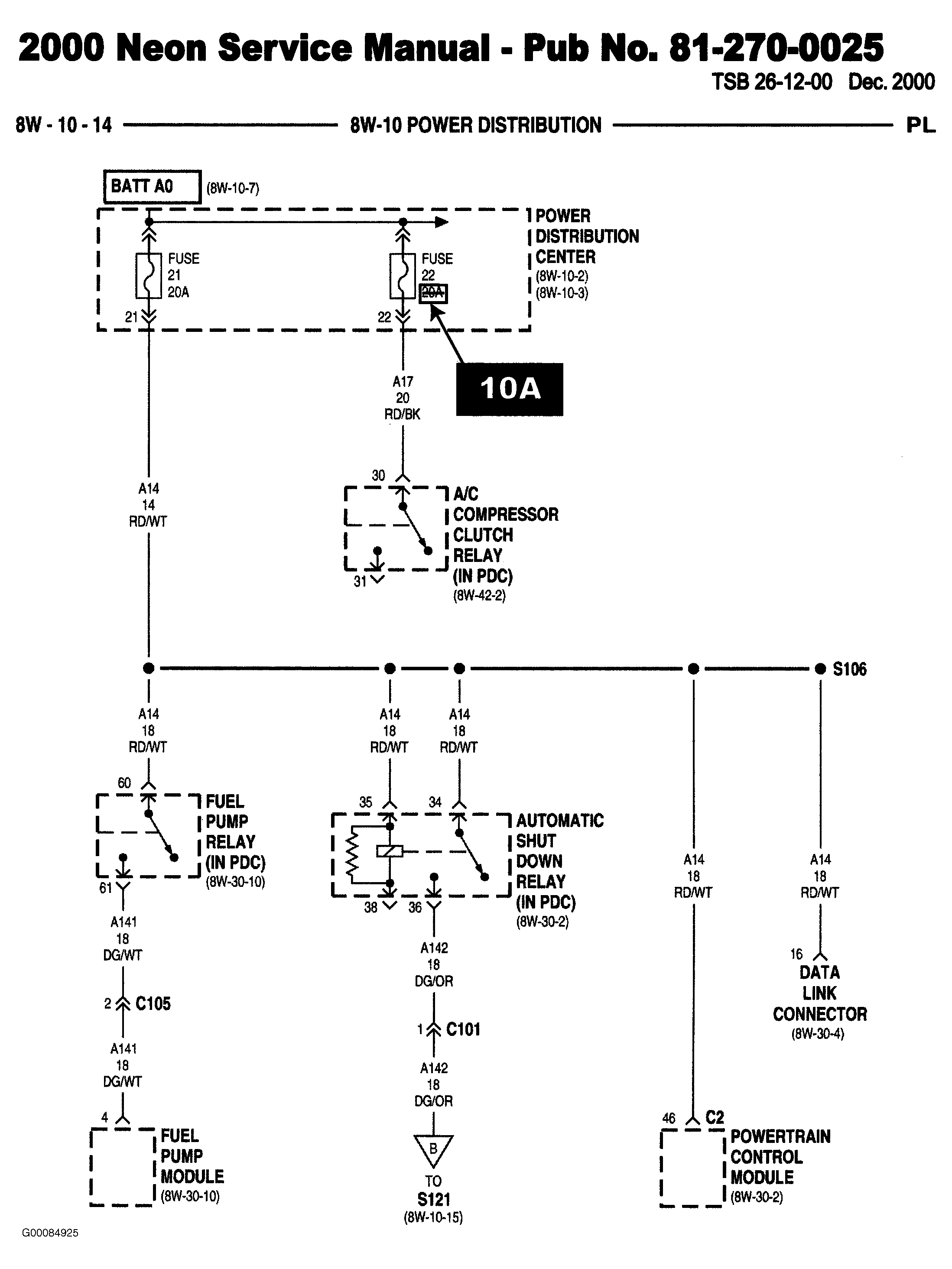

    Fig 24: 2000 PL Service Manual Revision - Page 8W-10-14
    G00084925

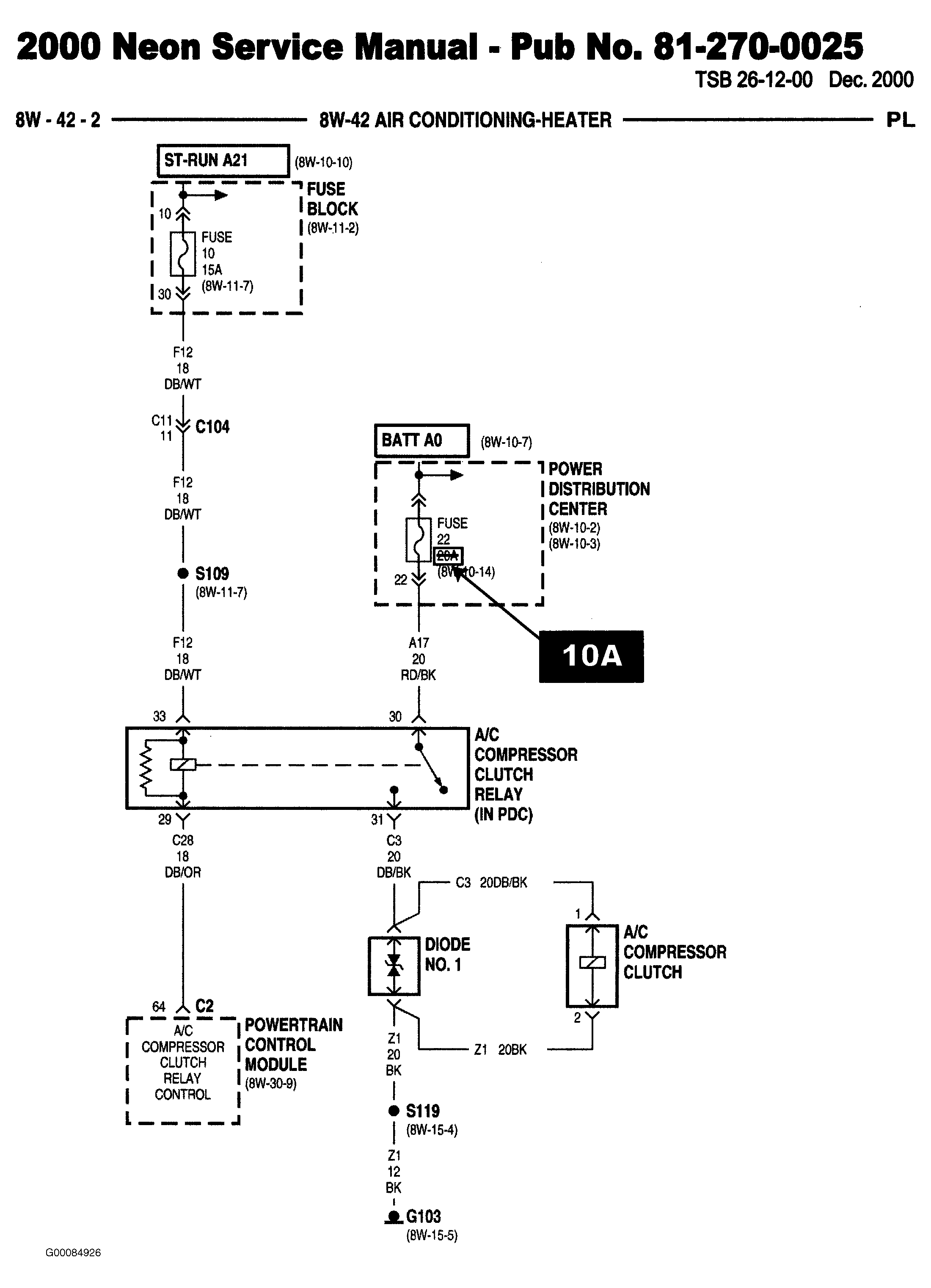

    Fig 25: 2000 PL Service Manual Revision - Page 8W-42-2
    G00084926

2000 Ram Truck Service Manual - Publication Number 81-370-0008

  1. PAGES
    8W-20-2, 8W-20-3, 8W-80-67, 8W-80-68, 8W-80-69, 8W-80-70

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

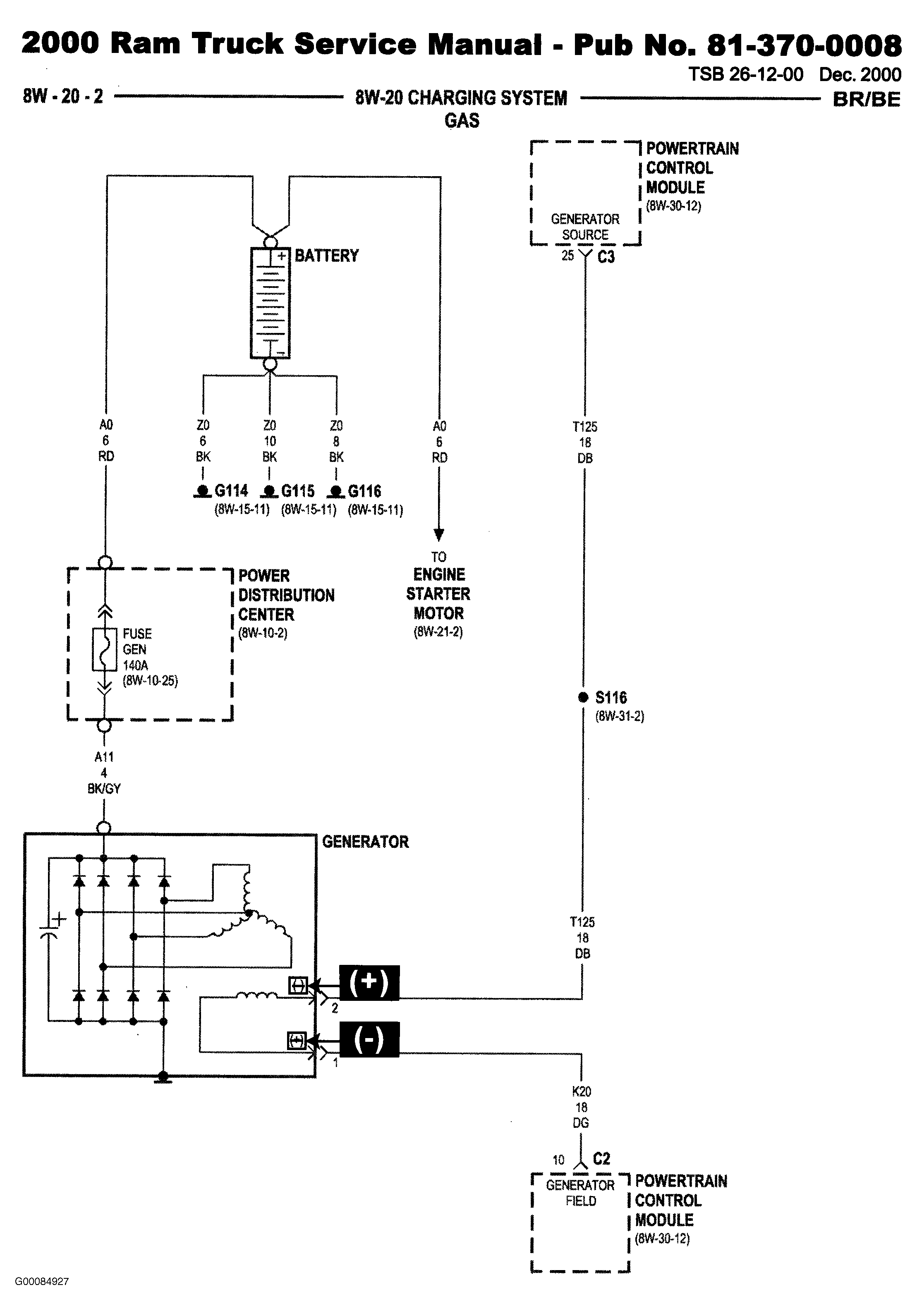

    Fig 26: 2000 BR/BE Service Manual Revision - Page 8W-20-2
    G00084927

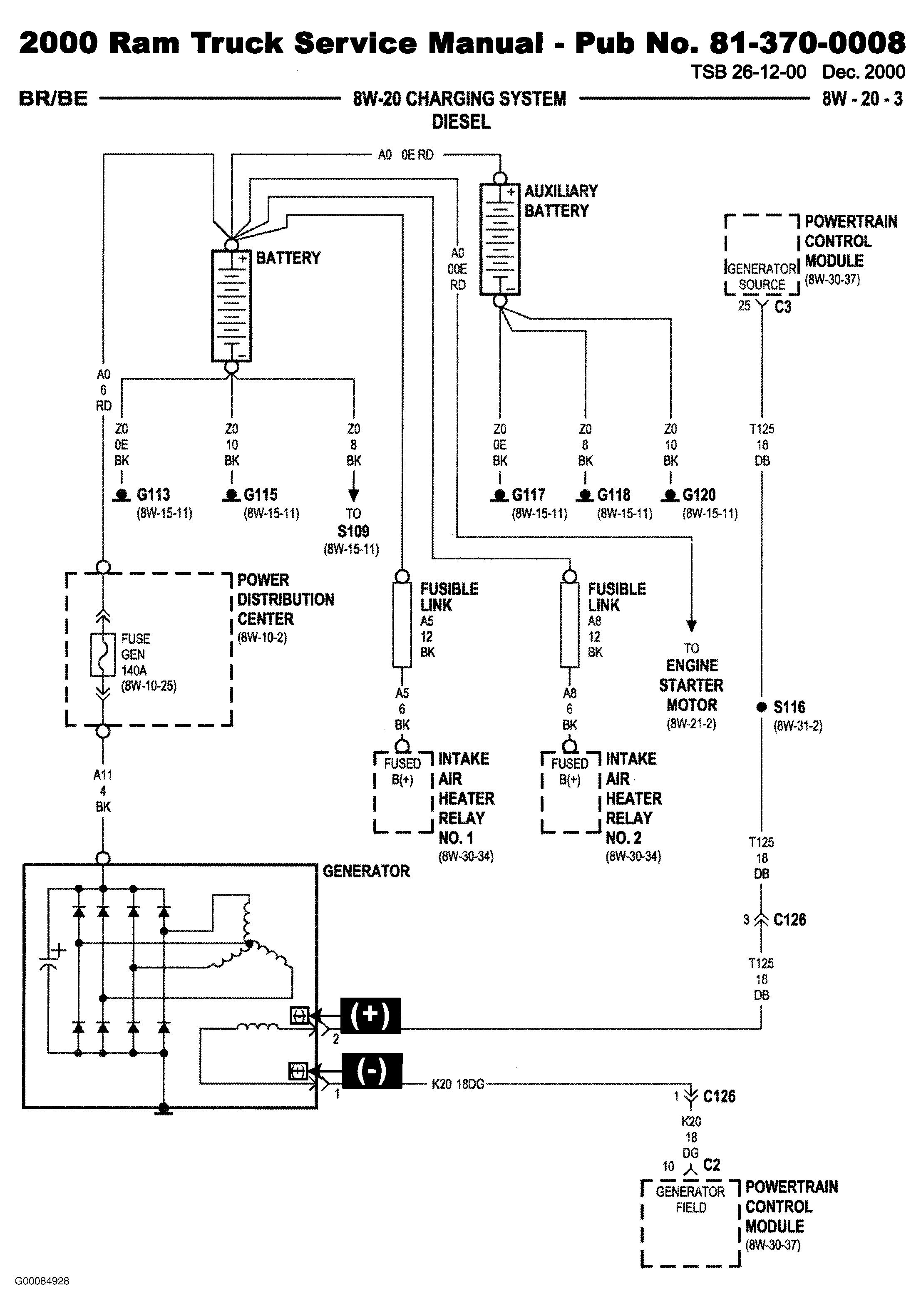

    Fig 27: 2000 BR/BE Service Manual Revision - Page 8W-20-3
    G00084928

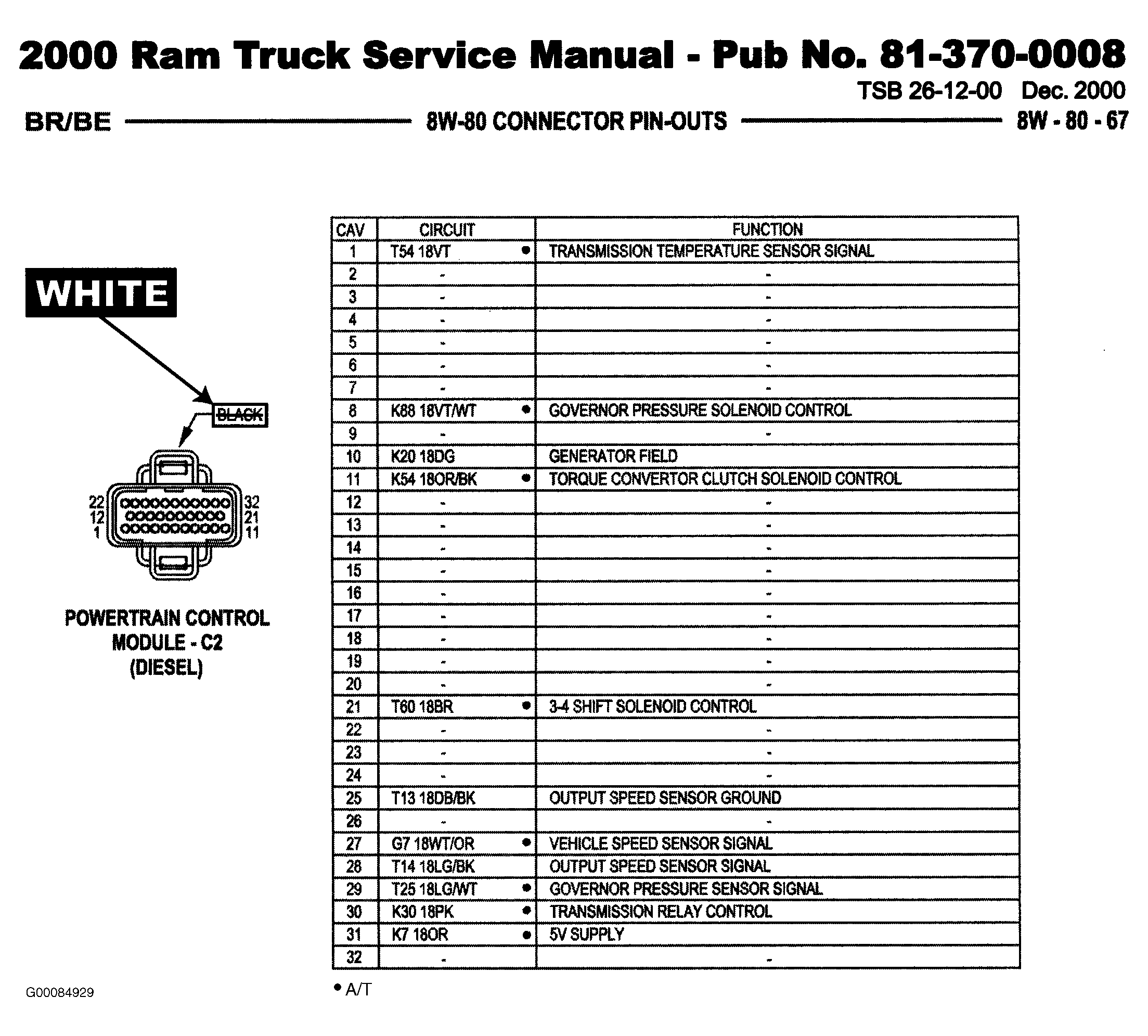

    Fig 28: 2000 BR/BE Service Manual Revision - Page 8W-80-67
    G00084929

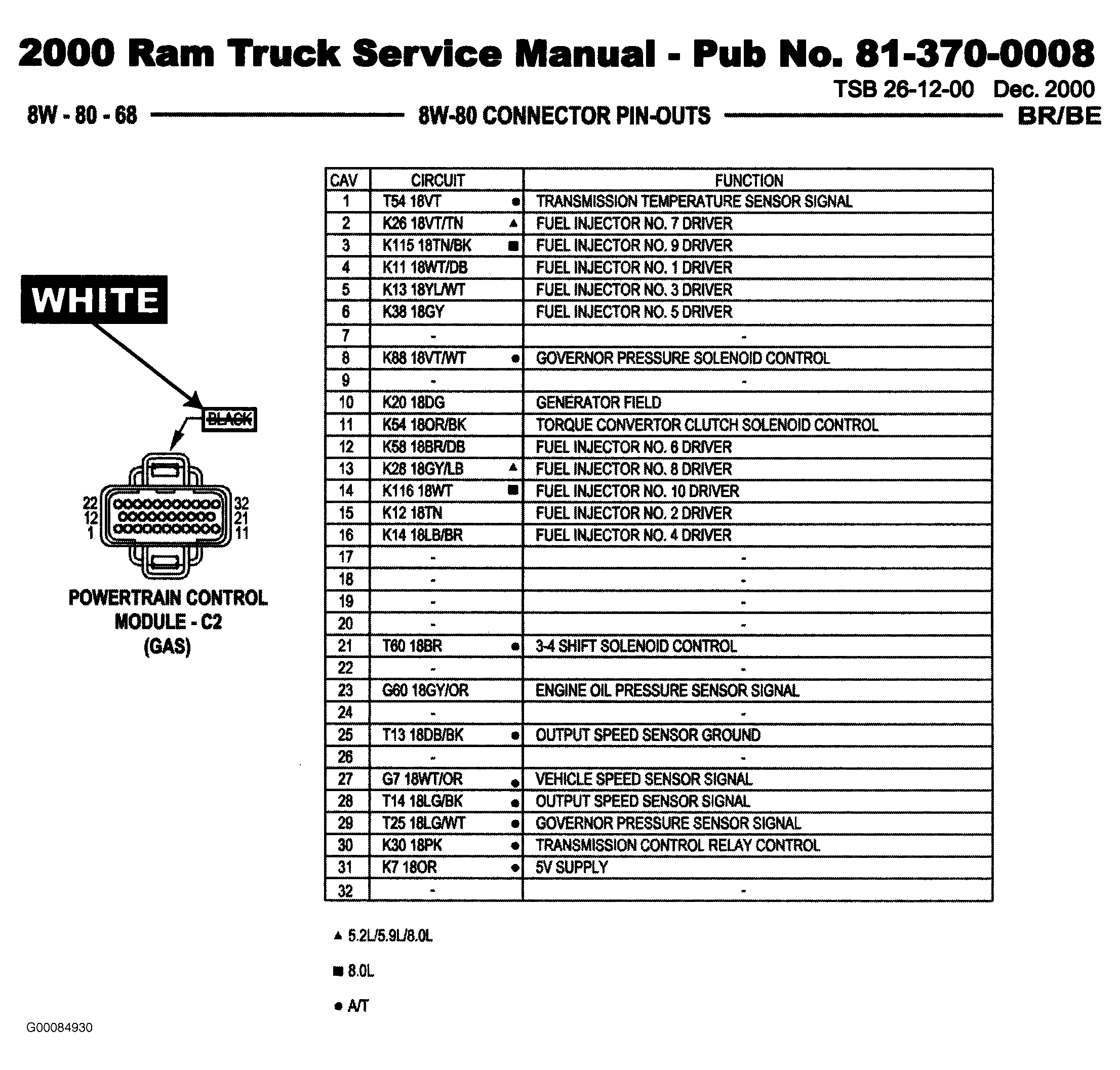

    Fig 29: 2000 BR/BE Service Manual Revision - Page 8W-80-68
    G00084930

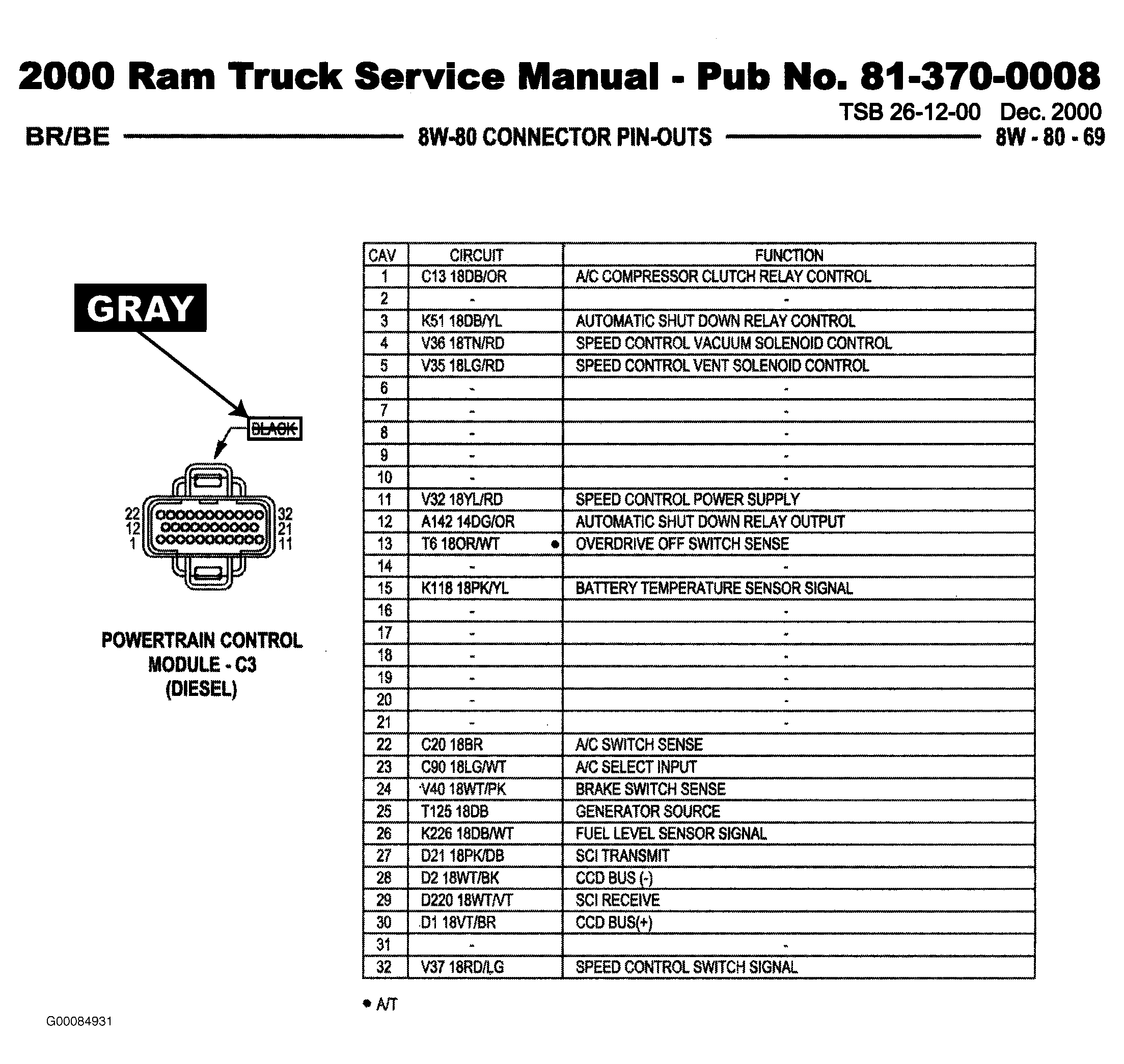

    Fig 30: 2000 BR/BE Service Manual Revision - Page 8W-80-69
    G00084931

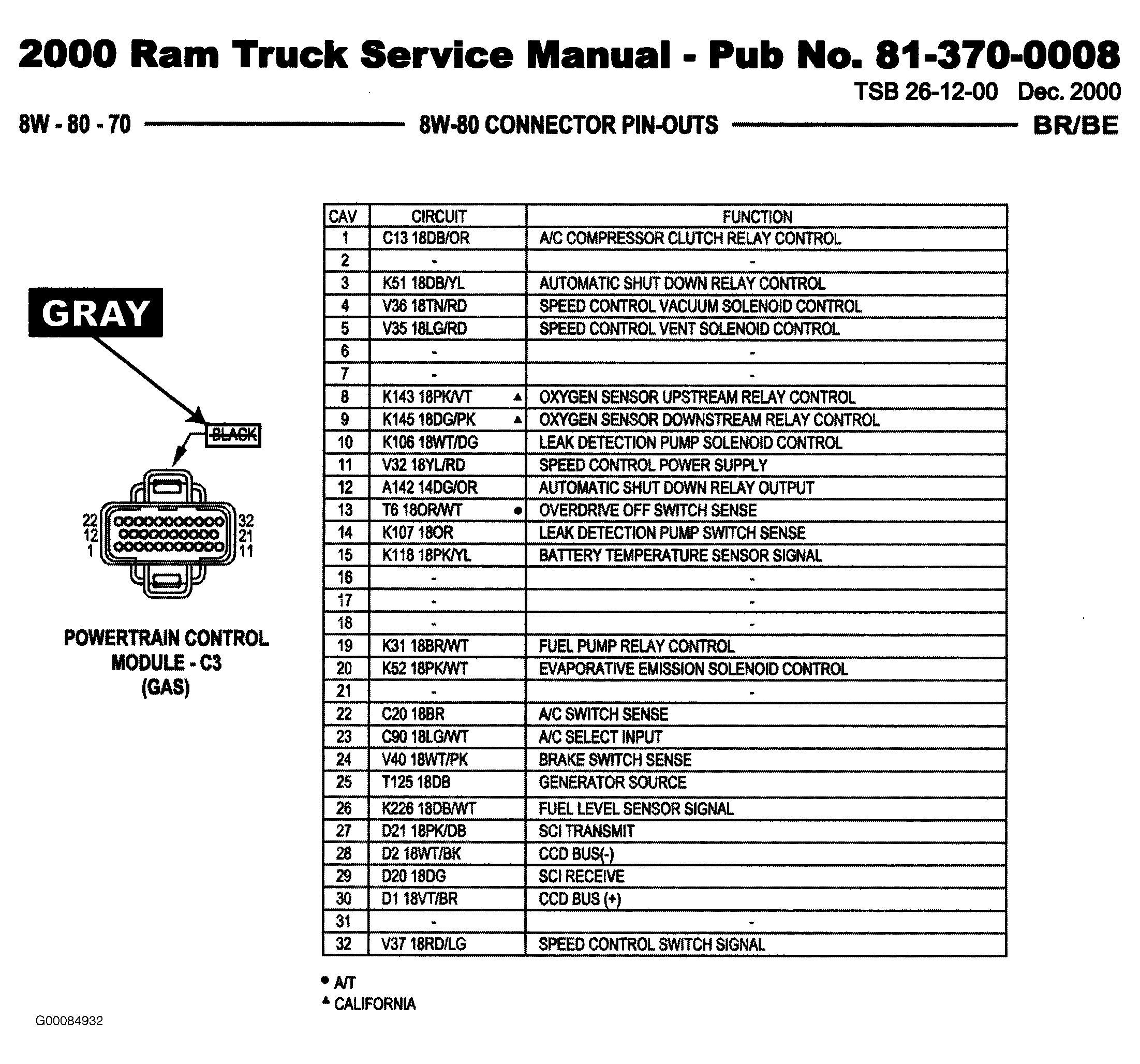

    Fig 31: 2000 BR/BE Service Manual Revision - Page 8W-80-70
    G00084932

  3. PAGES
    24-42

  4. DESCRIPTION OF UPDATE
    Updates to the A/C compressor service procedure.

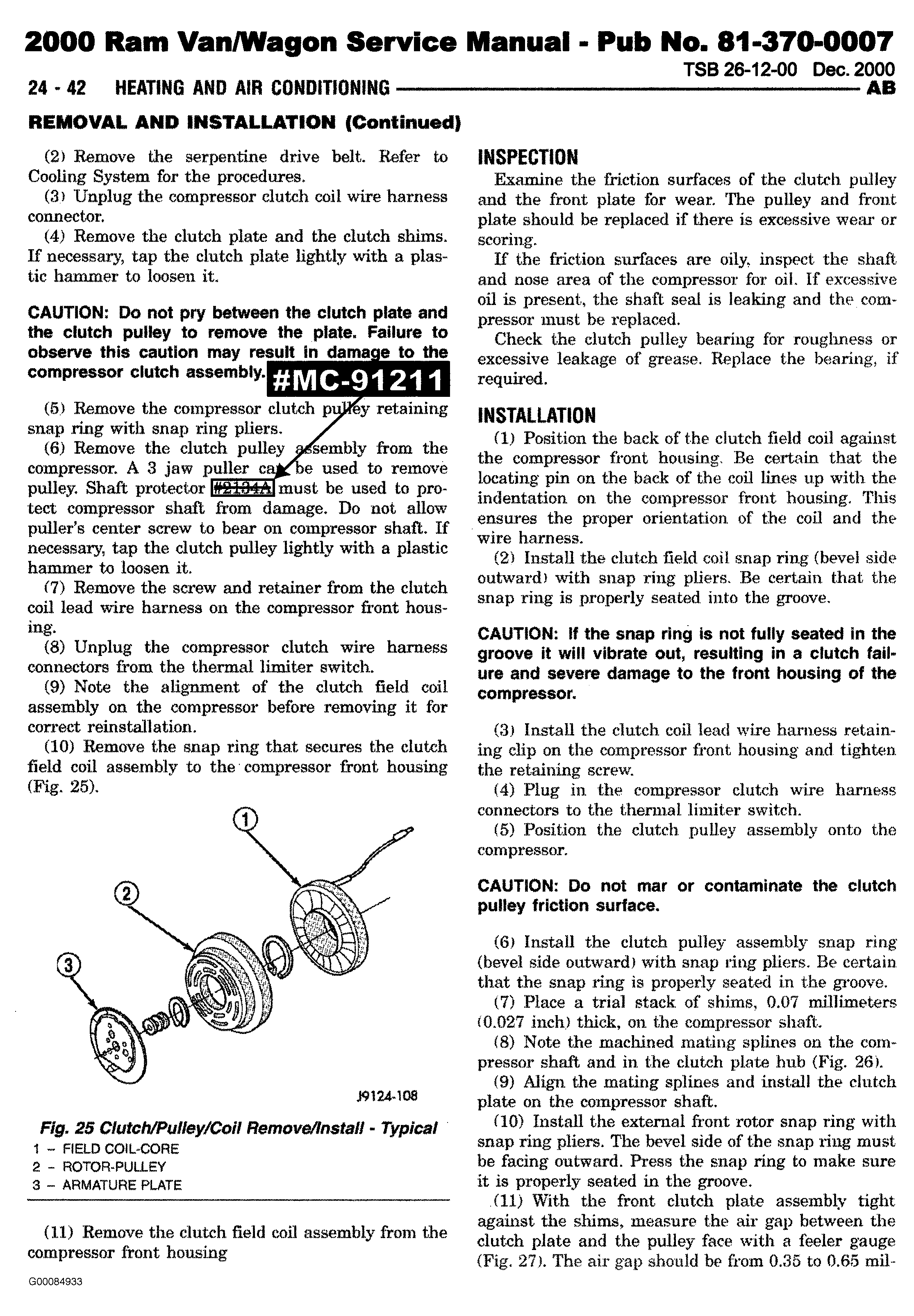

    Fig 32: 2000 AB Service Manual Revision - Page 24-42
    G00084933

1999 Sebring Convertible Service Manual - Publication Number 81-270-9121

  1. PAGES
    24-10

  2. DESCRIPTION OF UPDATE
    Updates to the A/C charge procedure.

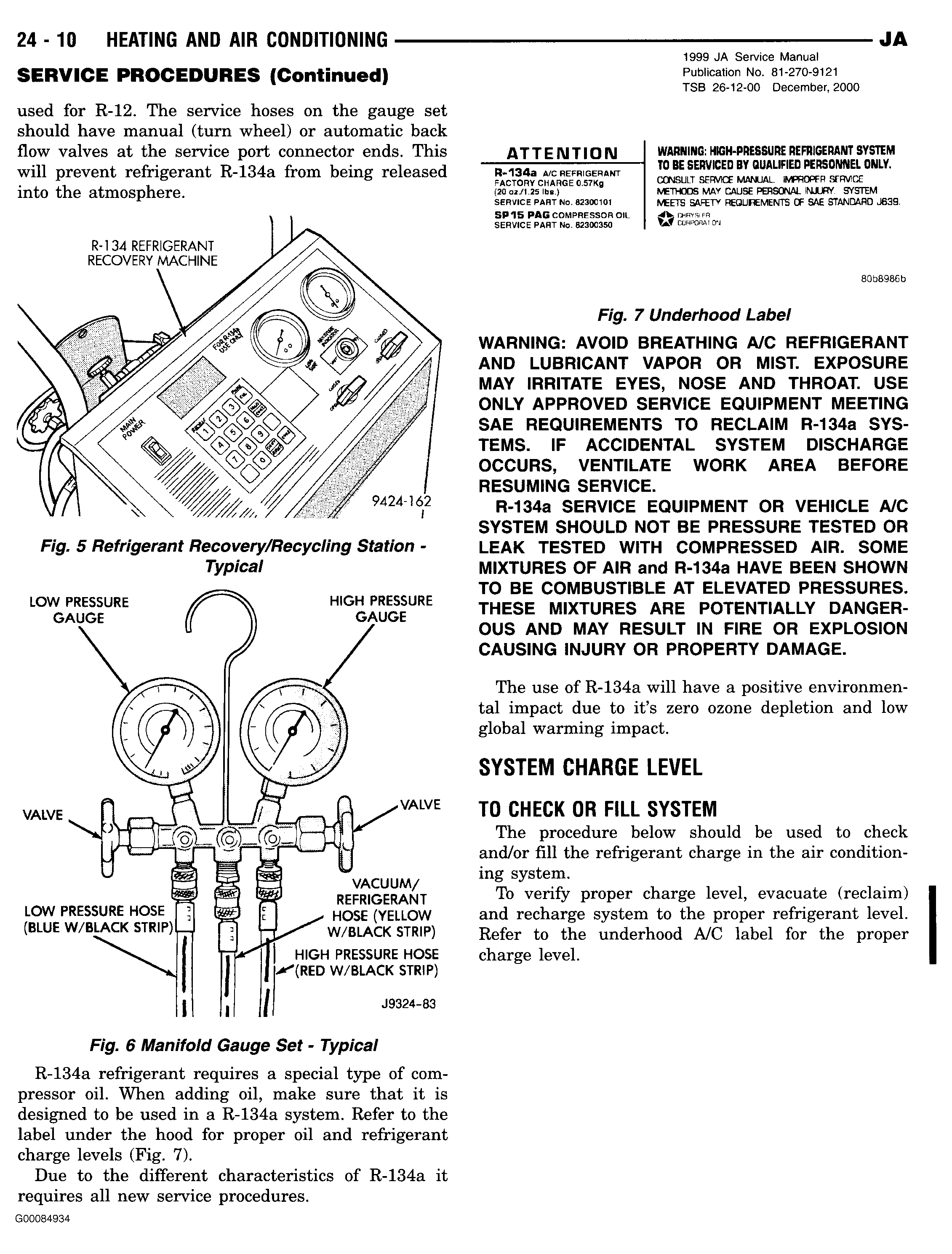

    Fig 33: 1999 JA Service Manual Revision - Page 24-10
    G00084934

1999 Cirrus/Stratus Service Manual - Publication Number 81-270-9122

  1. PAGES
    24-10

  2. DESCRIPTION OF UPDATE
    Updates to the A/C charge procedure.

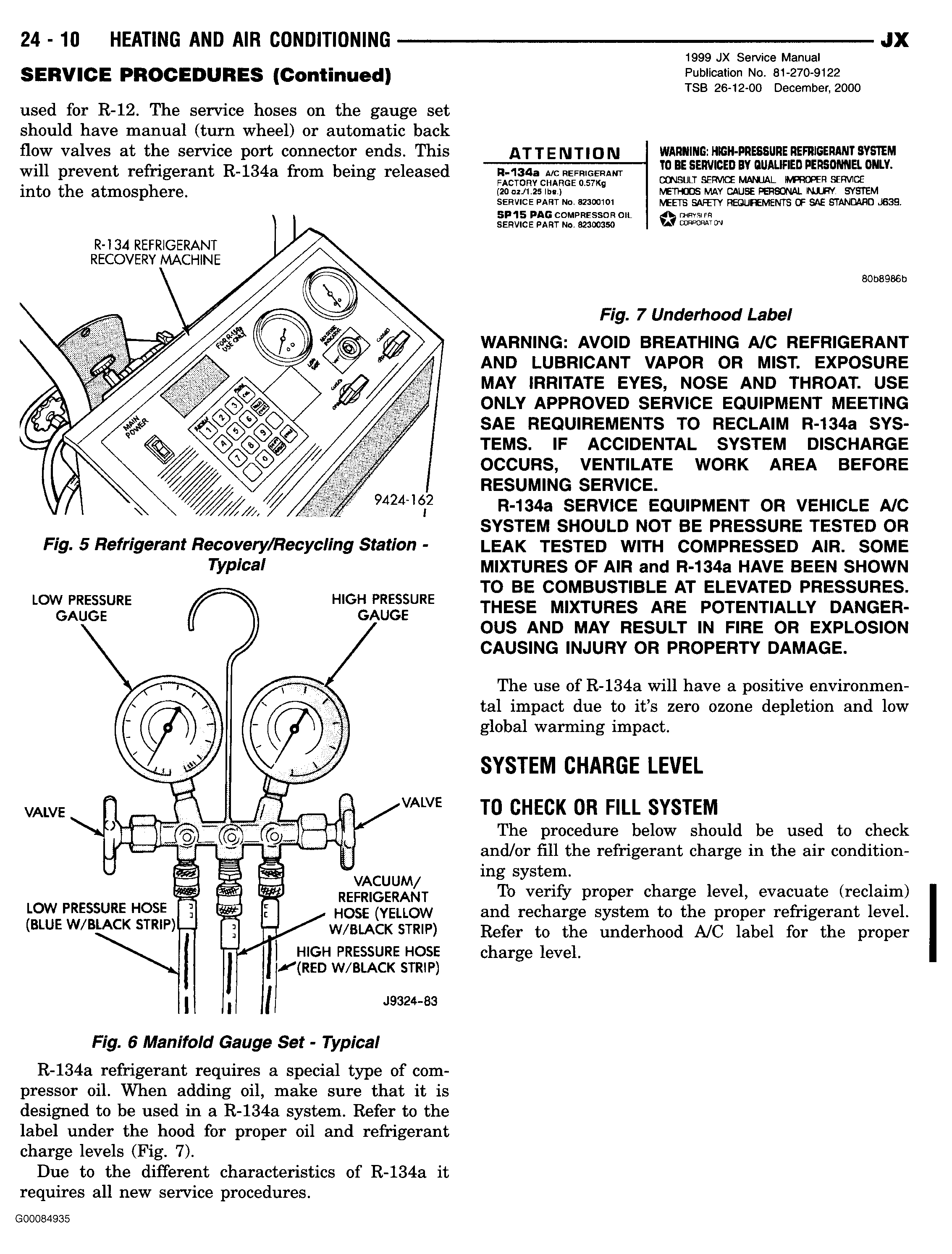

    Fig 34: 1999 JX Service Manual Revision - Page 24-10
    G00084935

1999 Caravan/Voyager Service Manual - Publication Number 81-370-9105

  1. PAGES
    8W-31-3

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

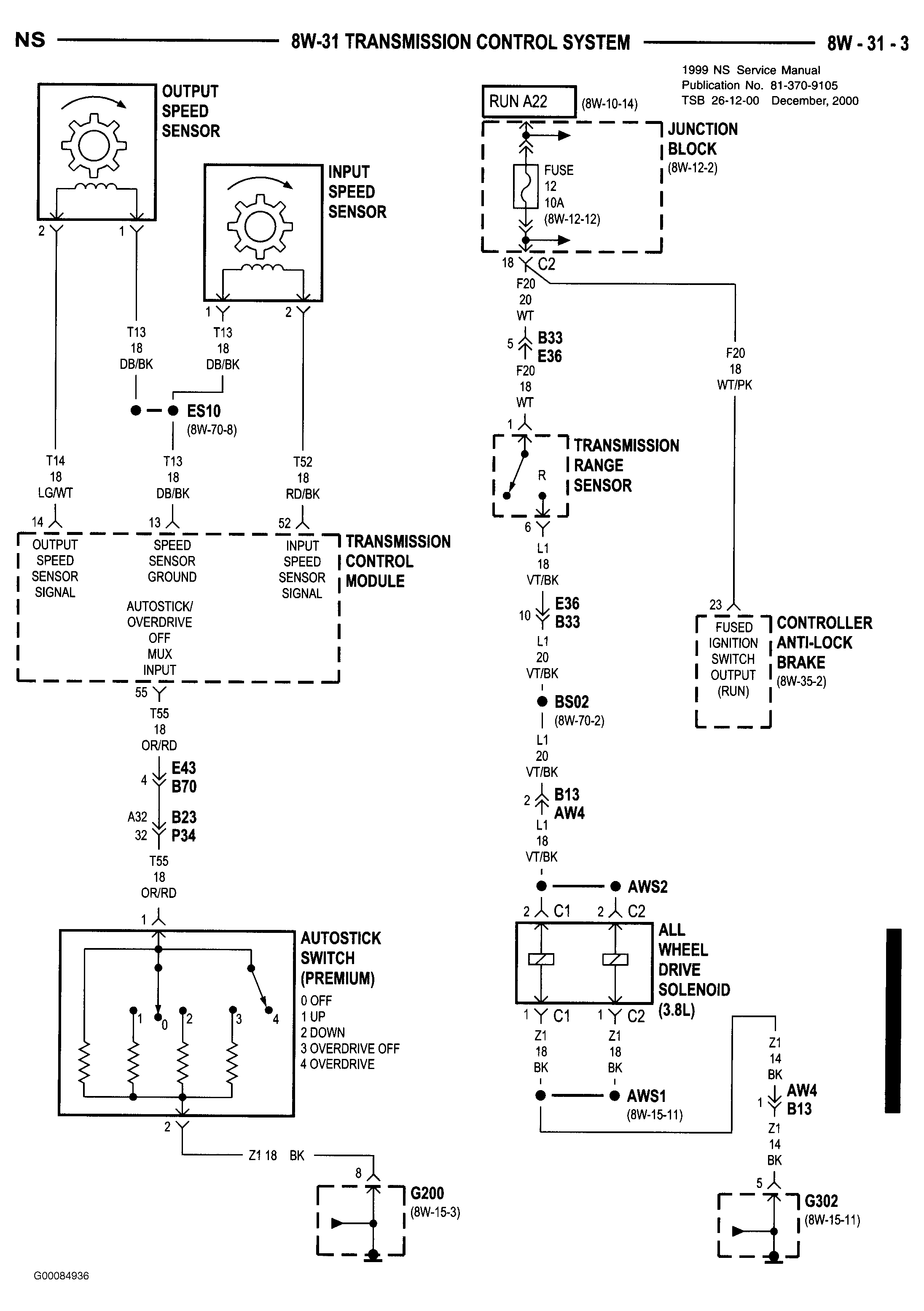

    Fig 35: 1999 NS Service Manual Revision - Page 8W-31-3
    G00084936

1999 LHS/300M/Concorde/Intrepid Service Manual - Publication Number 81-270-9140

  1. PAGES
    8W-53-2

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

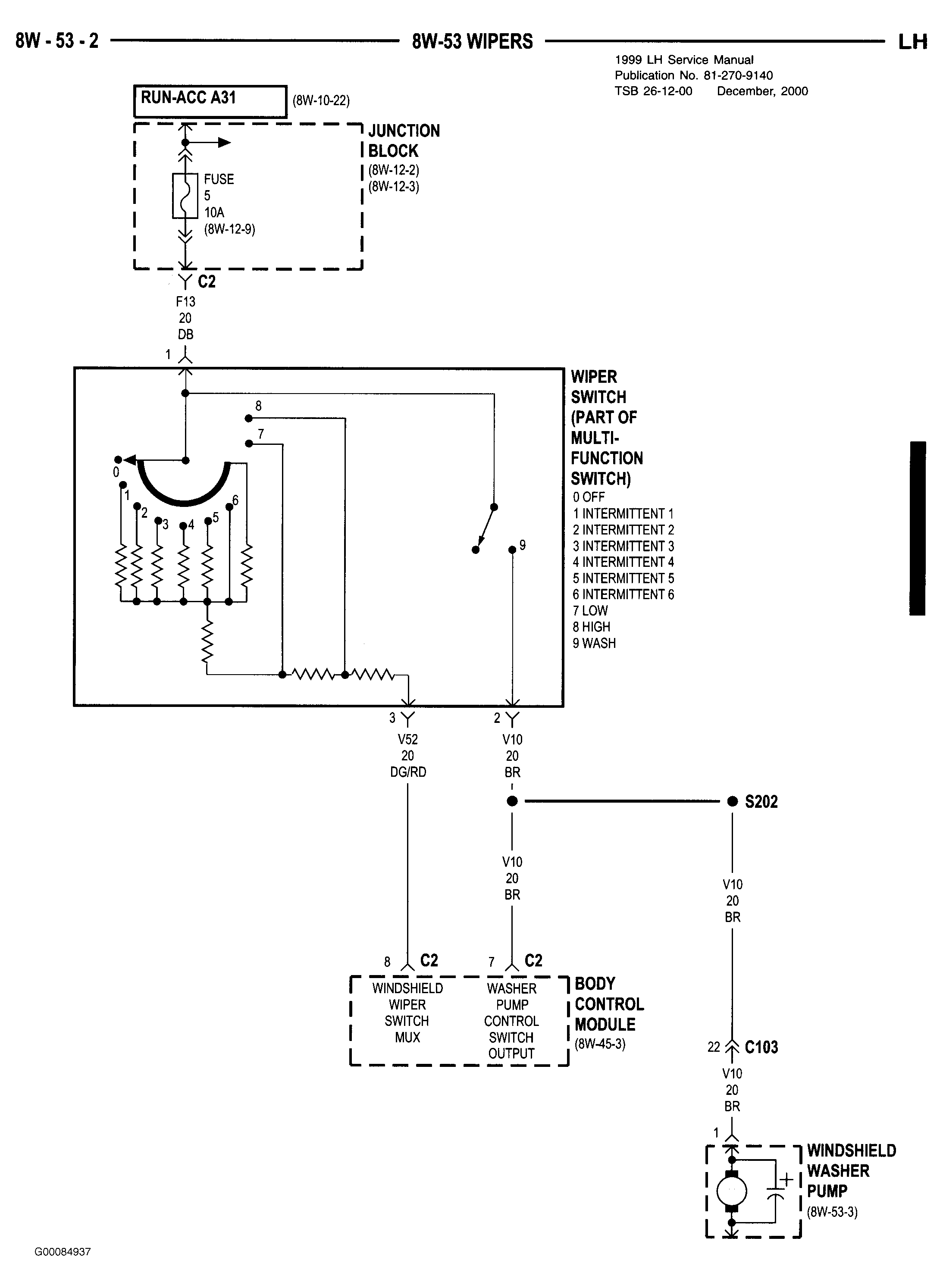

    Fig 36: 1999 LH Service Manual Revision - Page 8W-53-2
    G00084937

1999 Grand Cherokee Service Manual - Publication Number 81-370-9147

  1. PAGES
    8W-31-10, 8W-80-77

  2. DESCRIPTION OF UPDATE
    Updates to the wiring section.

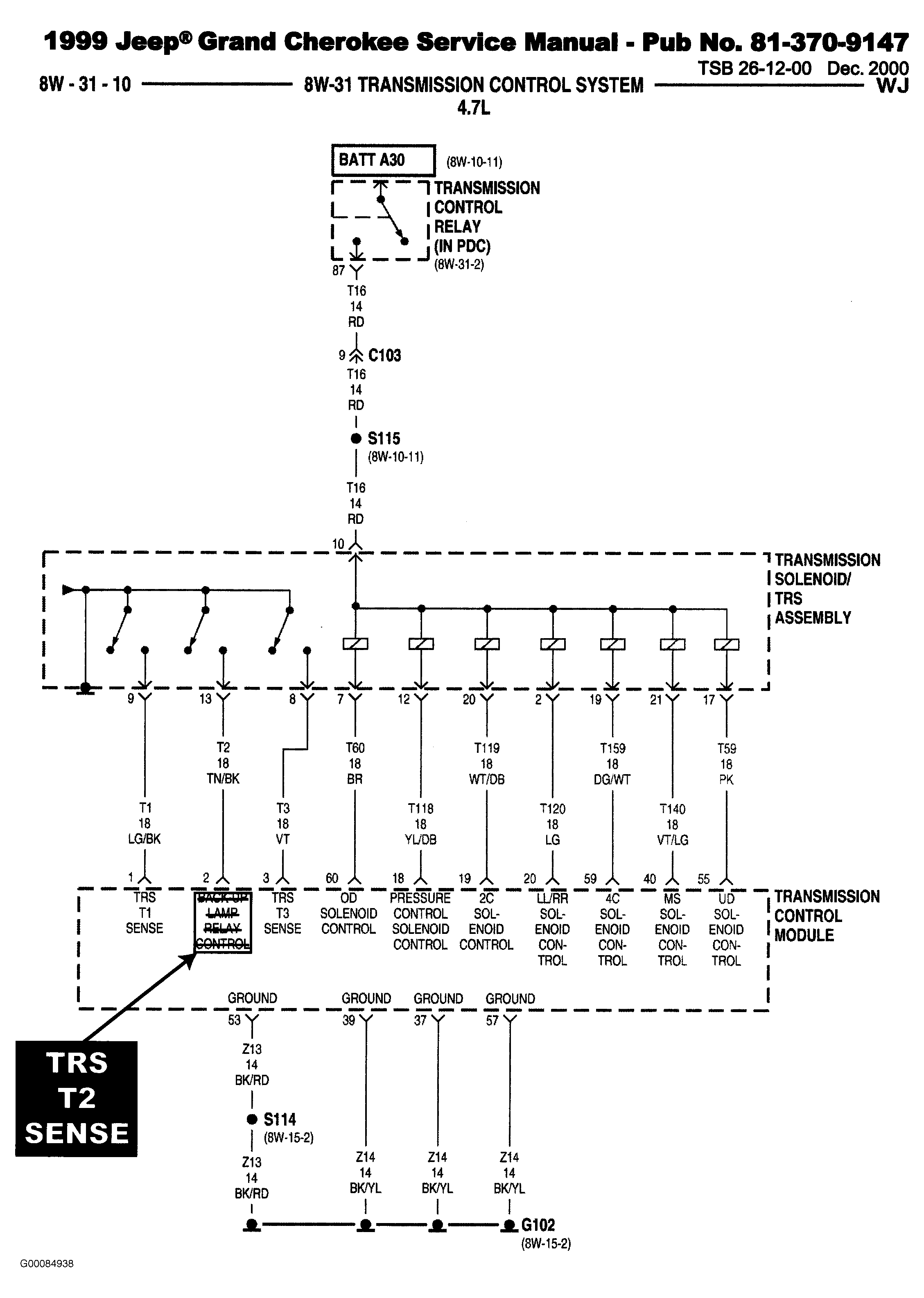

    Fig 37: 1999 WJ Service Manual Revision - Page 8W-31-10
    G00084938

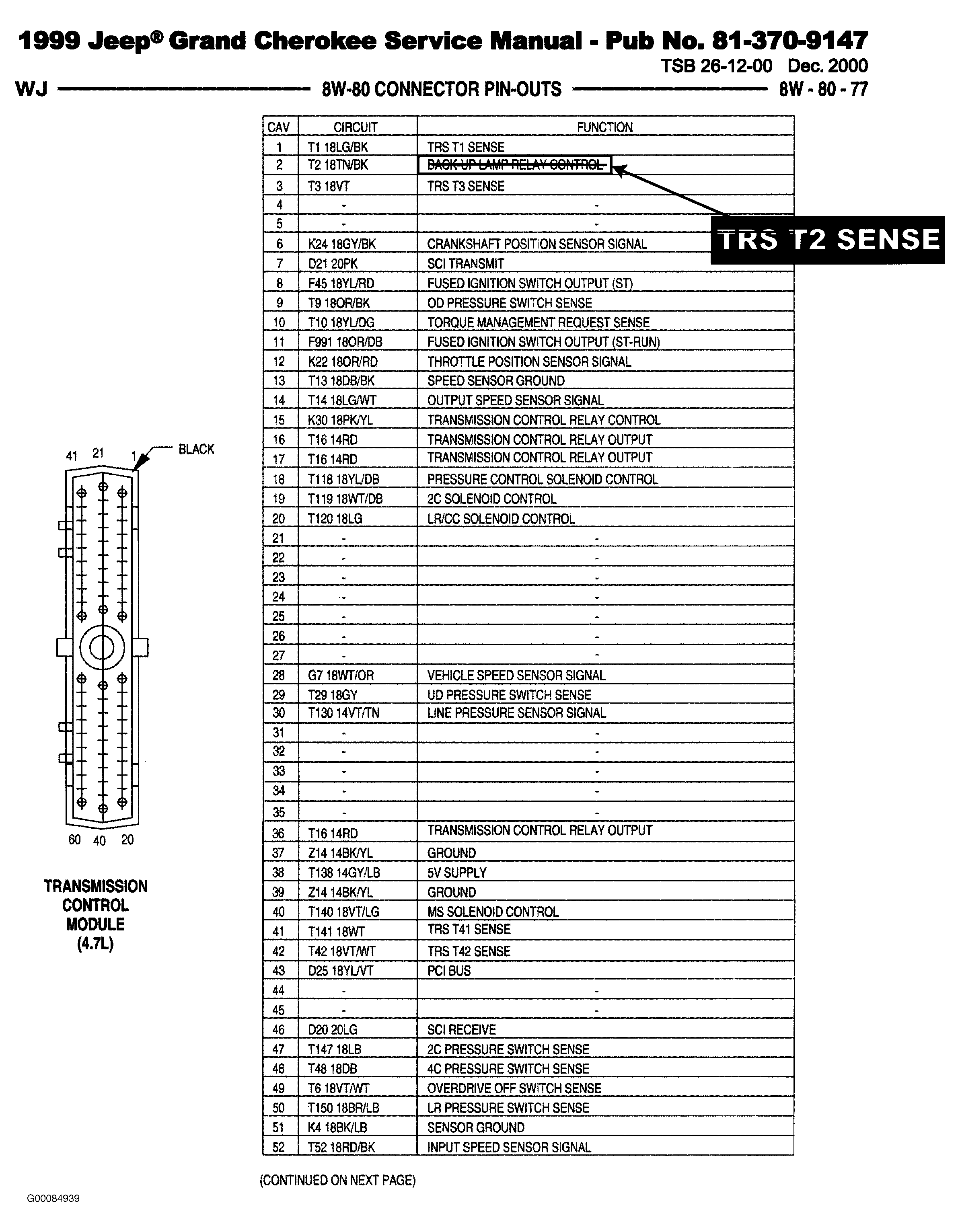

    Fig 38: 1999 WJ Service Manual Revision - Page 8W-80-77
    G00084939

1997-1999 Prowler Service Manual - Publication Number 81-270-9123

  1. PAGES
    14-61, Index-1, Index-5

  2. DESCRIPTION OF UPDATE
    Updates to the air filter element service procedure and index.

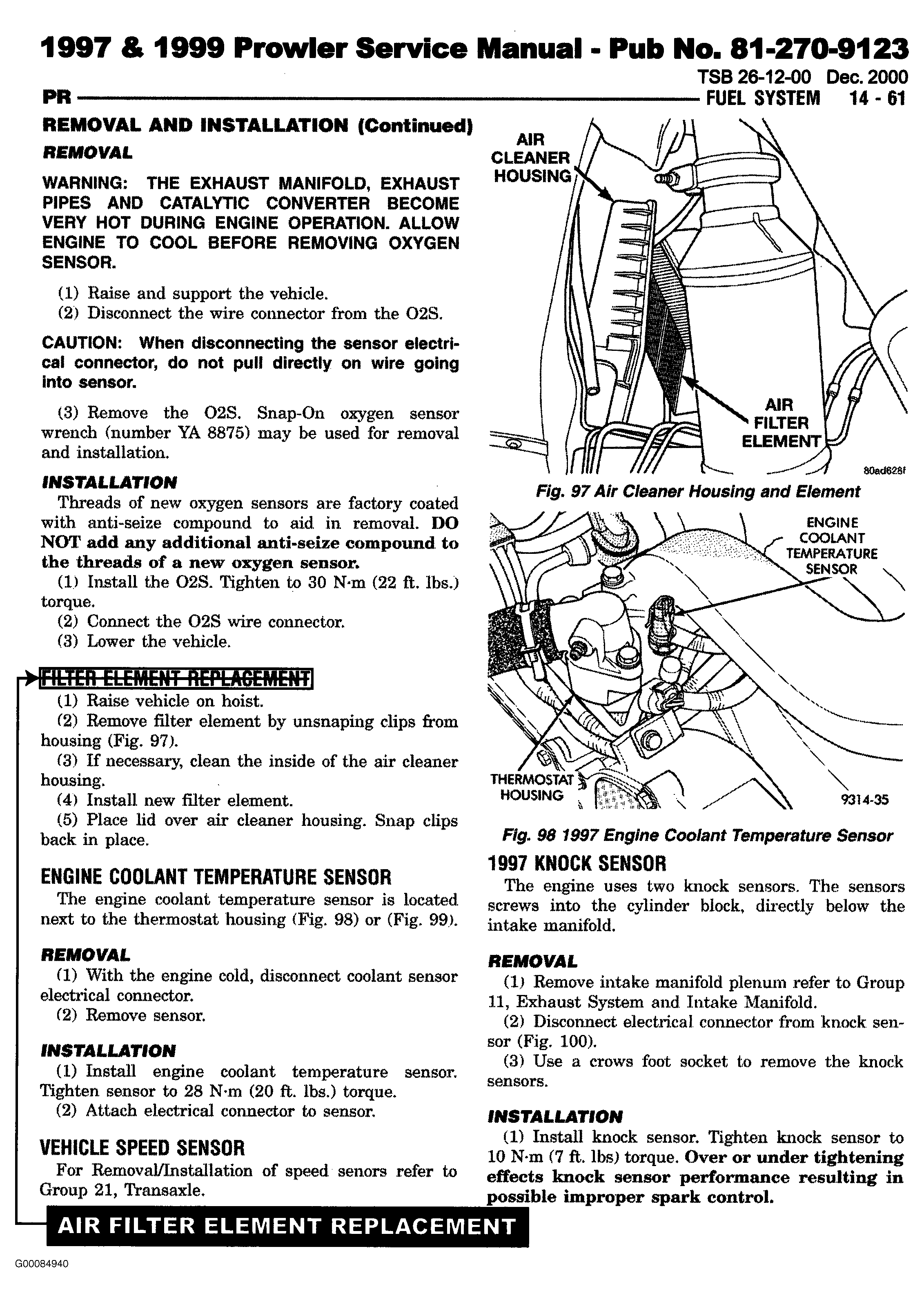

    Fig 39: 1997-1999 PR Service Manual Revision - Page 14-61
    G00084940
    Fig 40: 1997-1999 PR Service Manual Revision - Page INDEX-1
    G00084941

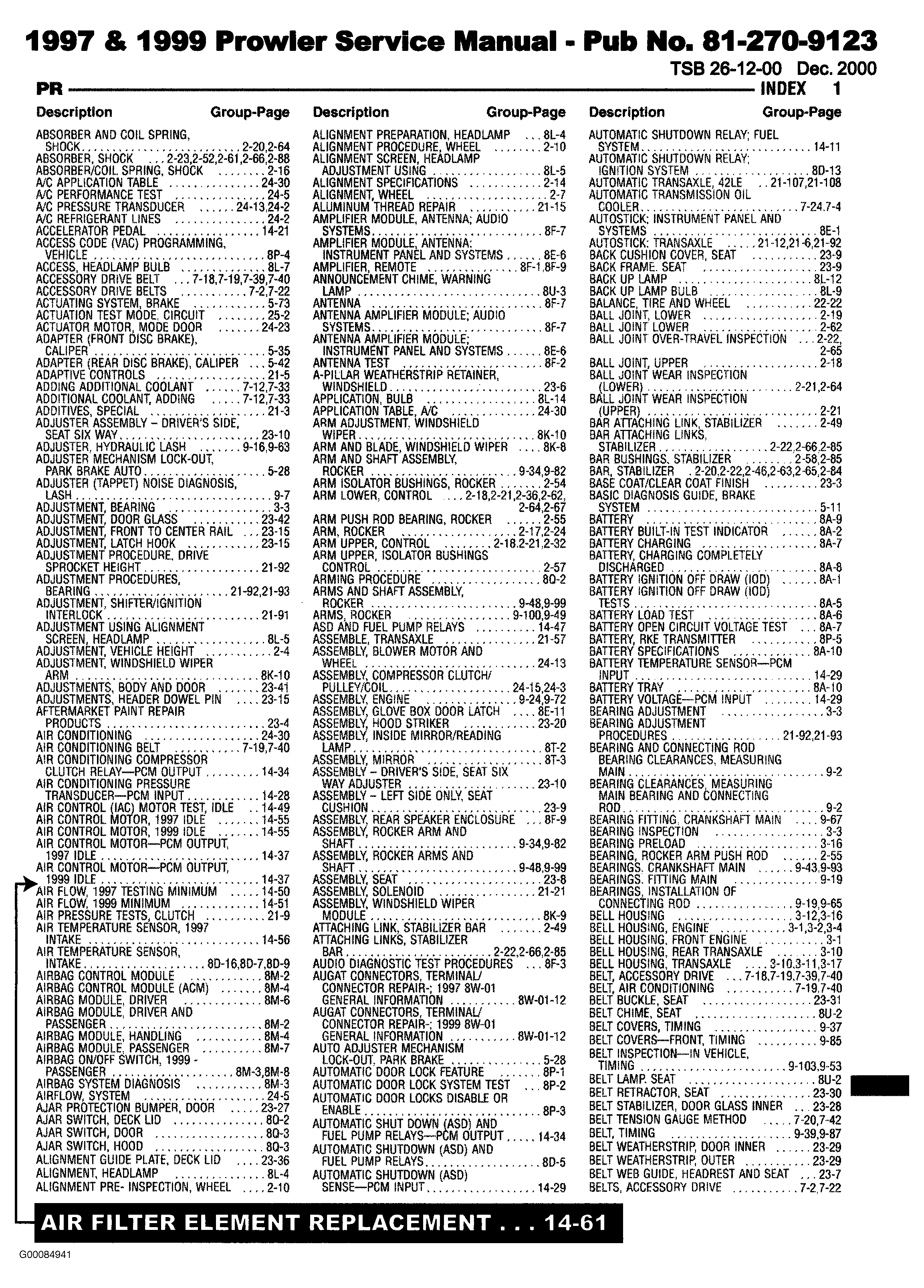

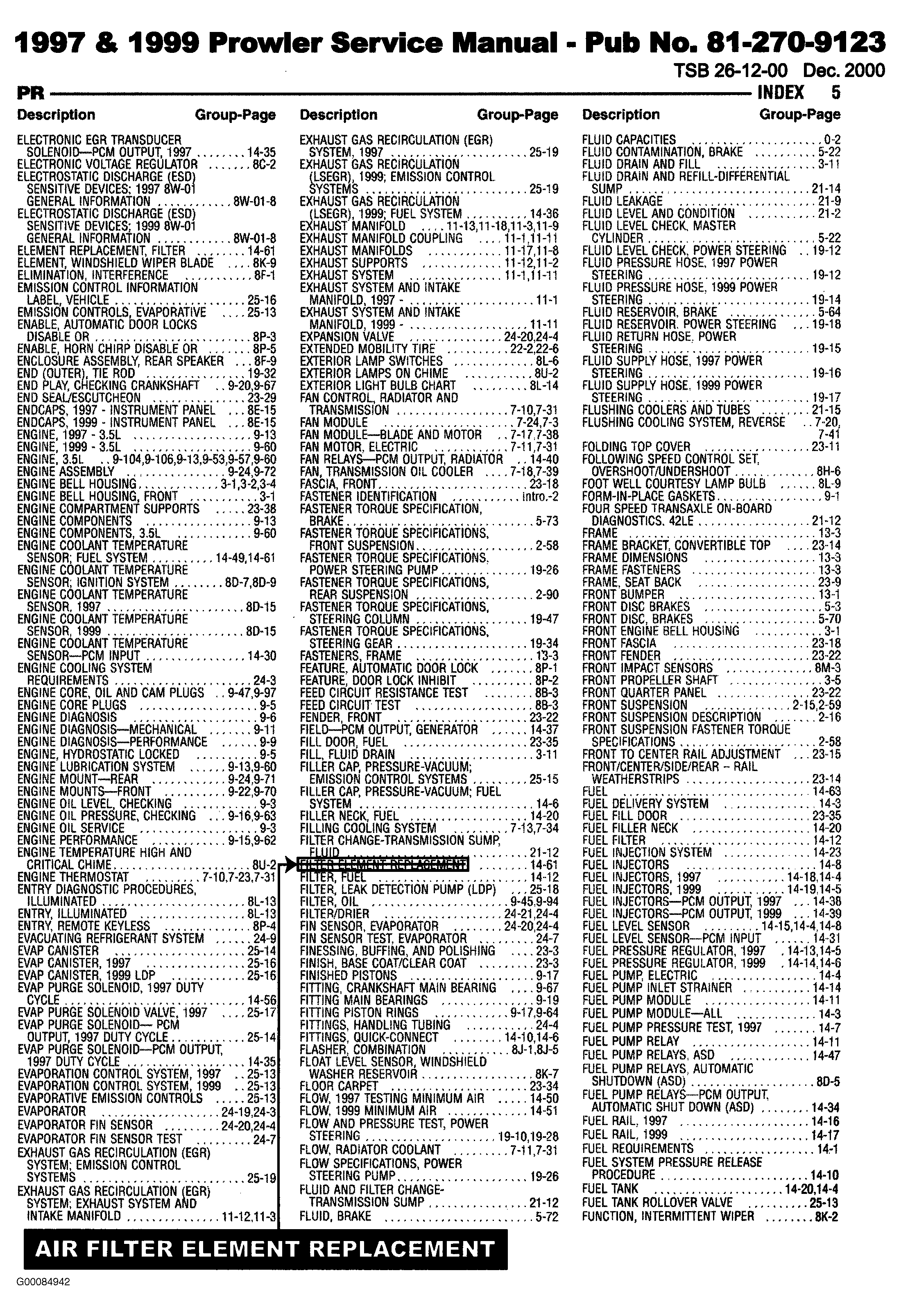

    Fig 41: 1997-1999 PR Service Manual Revision - Page INDEX-5
    G00084942

1997 Caravan/Voyager/Town & Country Service Manual - Publication Number 81-370-7105

  1. PAGES
    2-36

  2. DESCRIPTION OF UPDATE
    Updates to the suspension torque specifications.

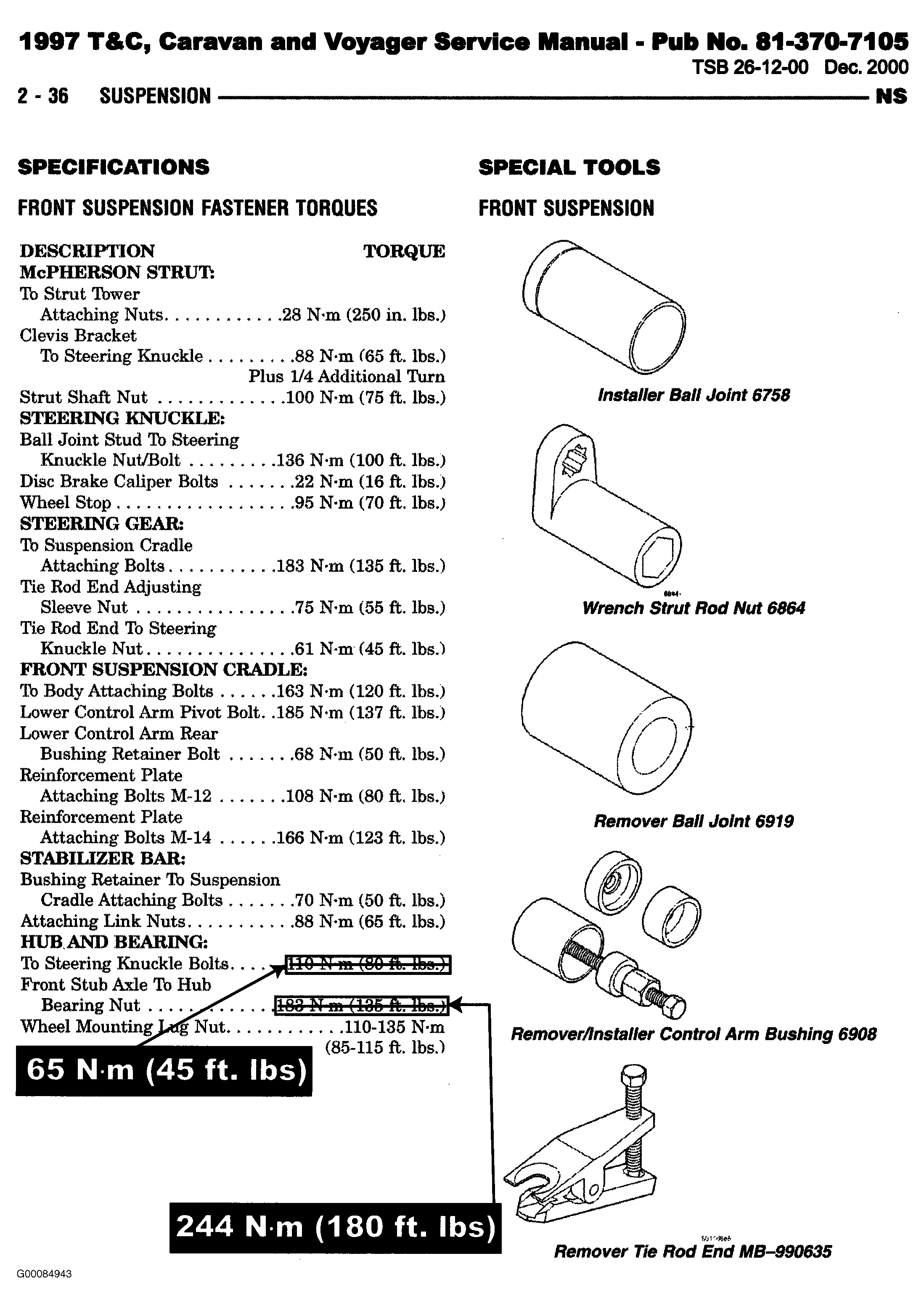

    Fig 42: 1997 NS Service Manual Revision - Page 2-36
    G00084943

  3. PAGES
    5-27

  4. DESCRIPTION OF UPDATE
    Updates to the brake caliper guide pin torque specification.

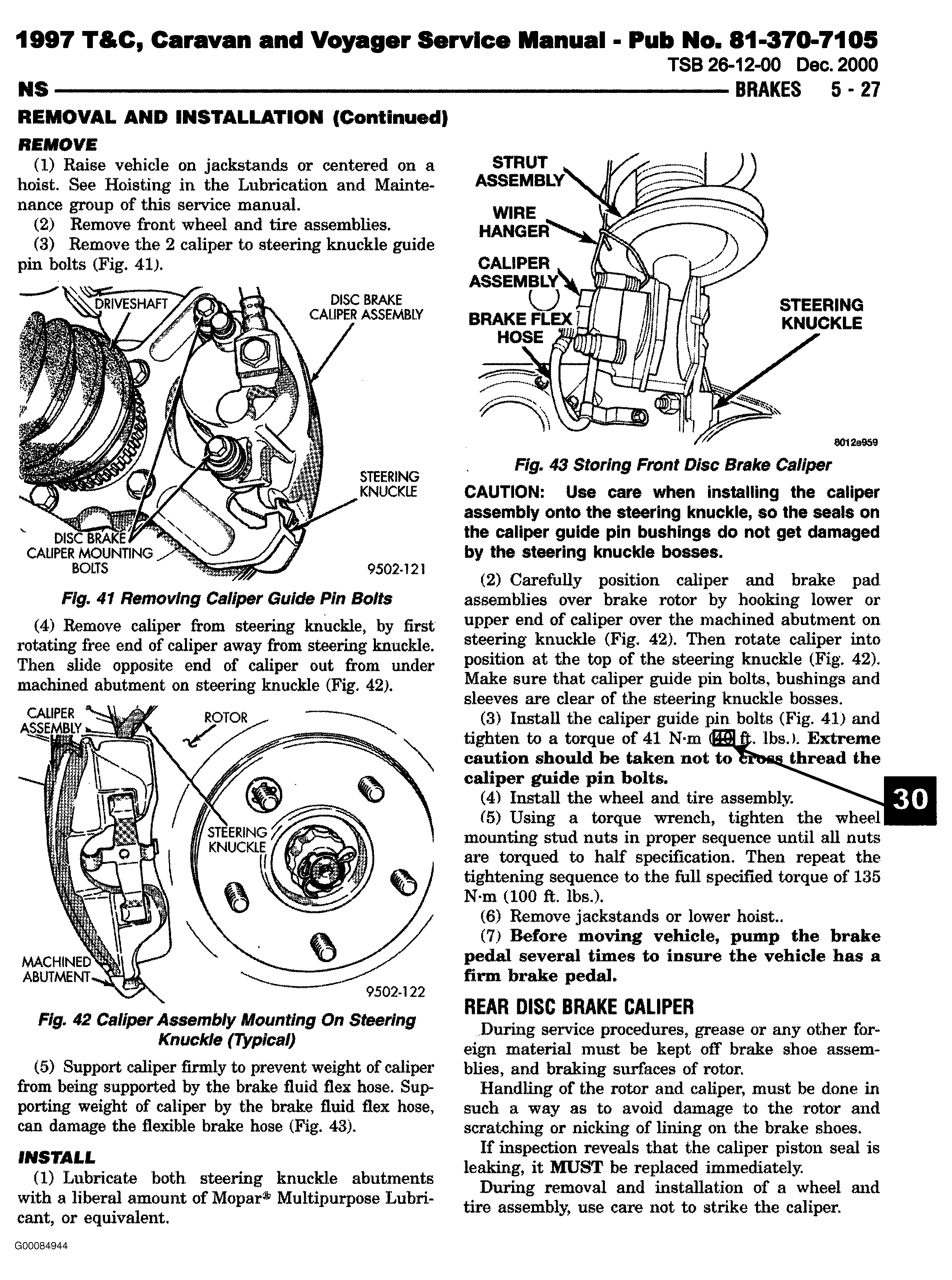

    Fig 43: 1997 NS Service Manual Revision - Page 5-27
    G00084944

1996 Caravan/Voyager/Town & Country Service Manual - Publication Number 81-370-6105

  1. PAGES
    5-39

  2. DESCRIPTION OF UPDATE
    Updates to the brake caliper guide pin torque specification.

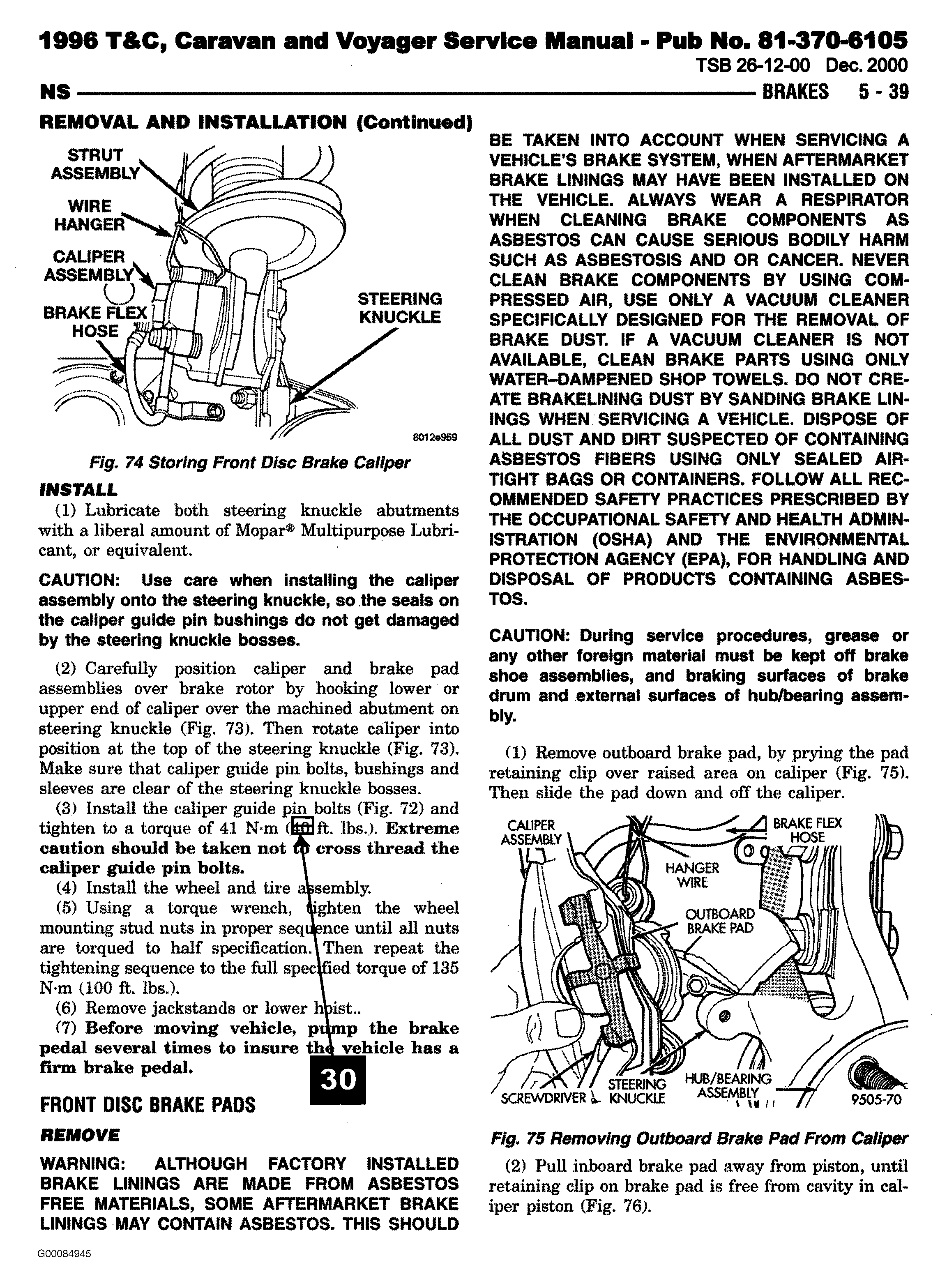

    Fig 44: 1996 NS Service Manual Revision - Page 5-39
    G00084945
