F4AC1 Transaxle

  1. Apply parking brake. Place gearshift lever in "N" position. Loosen lock nut on gearshift cable at manual control lever. See Fig 1 . Manual control lever is lever at transaxle on which gearshift cable is installed.
  2. Place manual control lever in Neutral. Lightly pull end of gearshift cable toward manual control lever and tighten lock nut on shift cable. If gearshift cable is properly adjusted, engine should start only with transaxle in Park or Neutral.

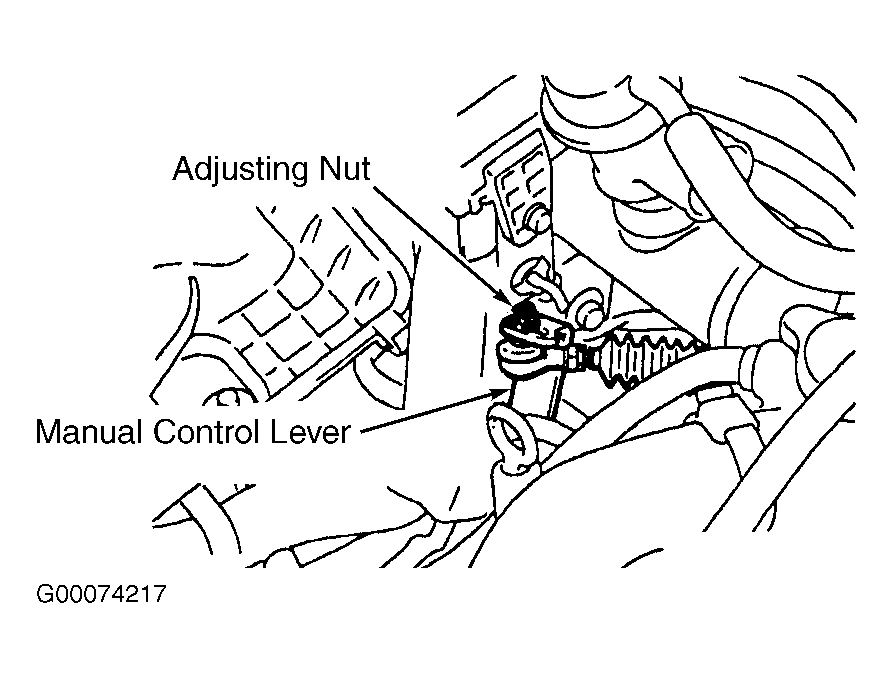

Fig 1: Adjusting Gearshift Cable (Avenger & Sebring Coupe)
G00074217Courtesy of DAIMLERCHRYSLER CORPORATION
