Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

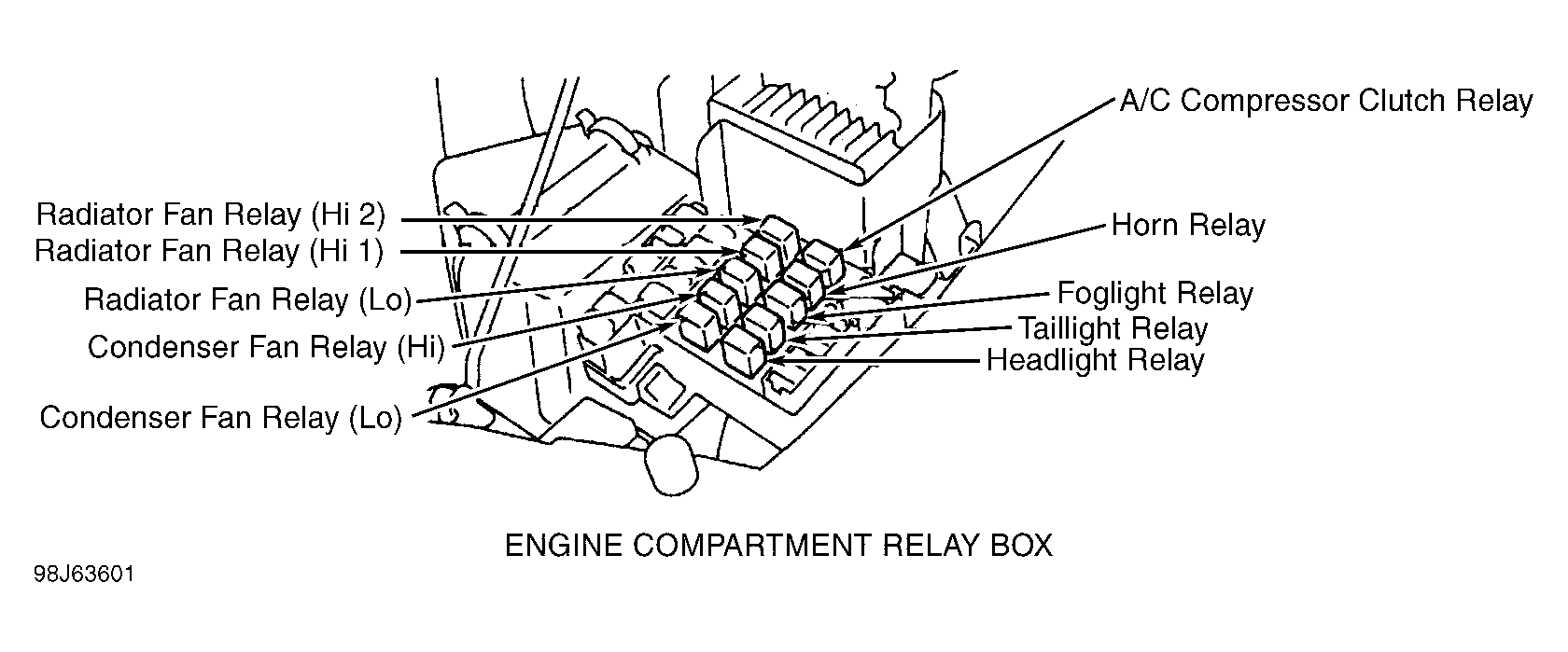

Fig 2: Engine Compartment Relay Box

Fig 3: Dash

Fig 4: Dash & Center Console

Fig 5: Vehicle Overview
