Component Location Graphics

NOTE: res may show multiple component locations. Refer to appropriate table for proper figure references.

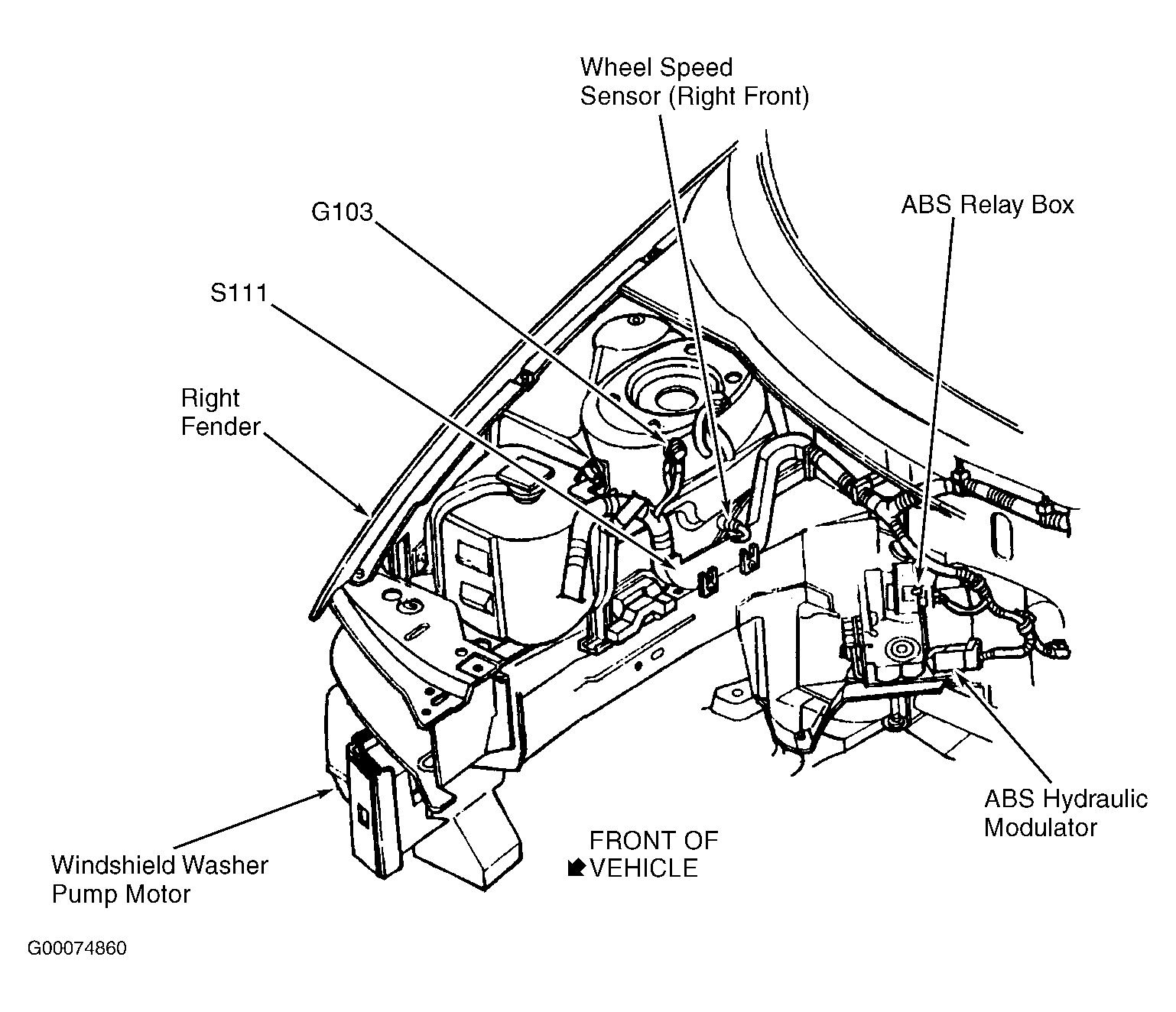

Fig 1: Right Side Of Engine Compartment

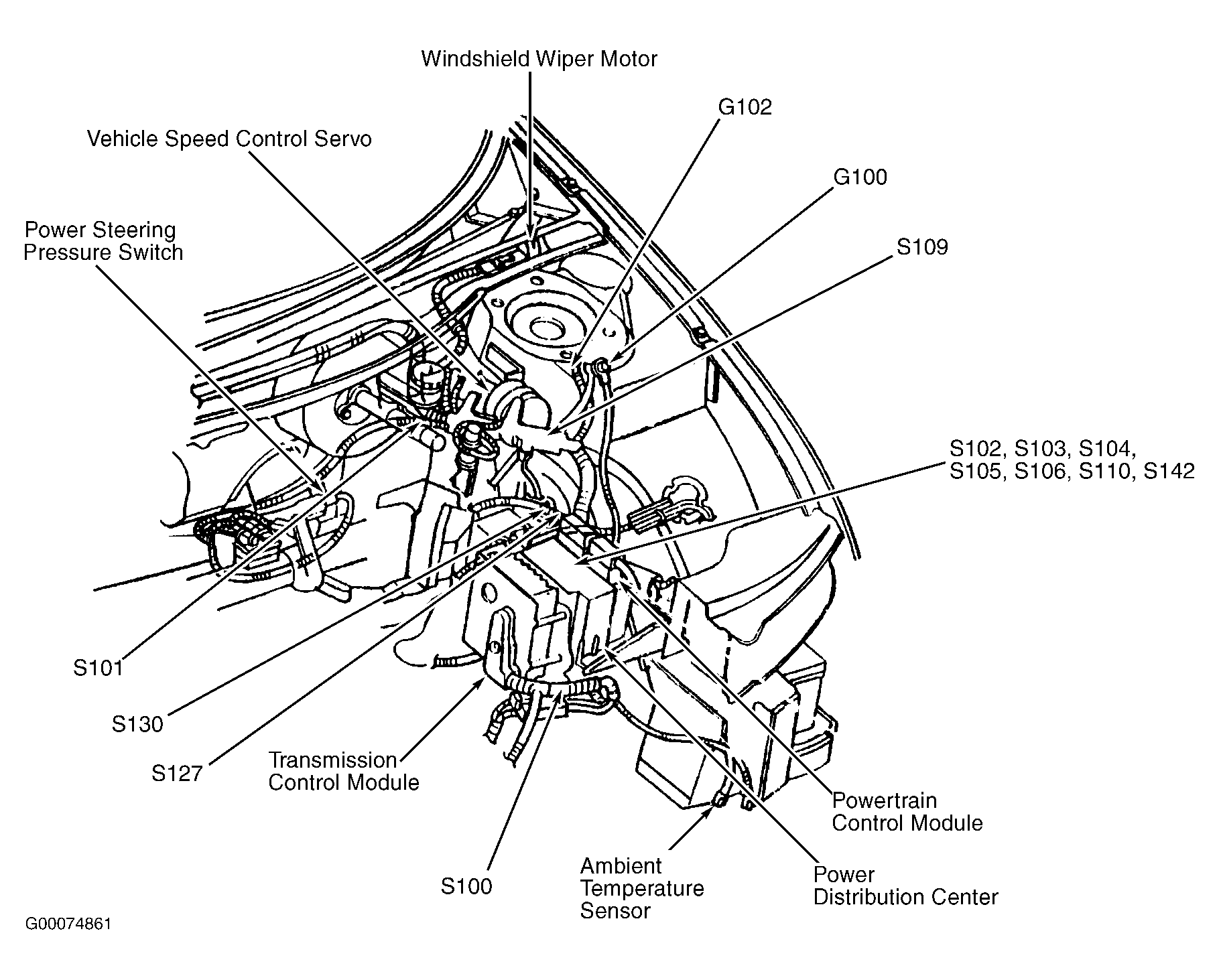

Fig 2: Left Side Of Engine Compartment

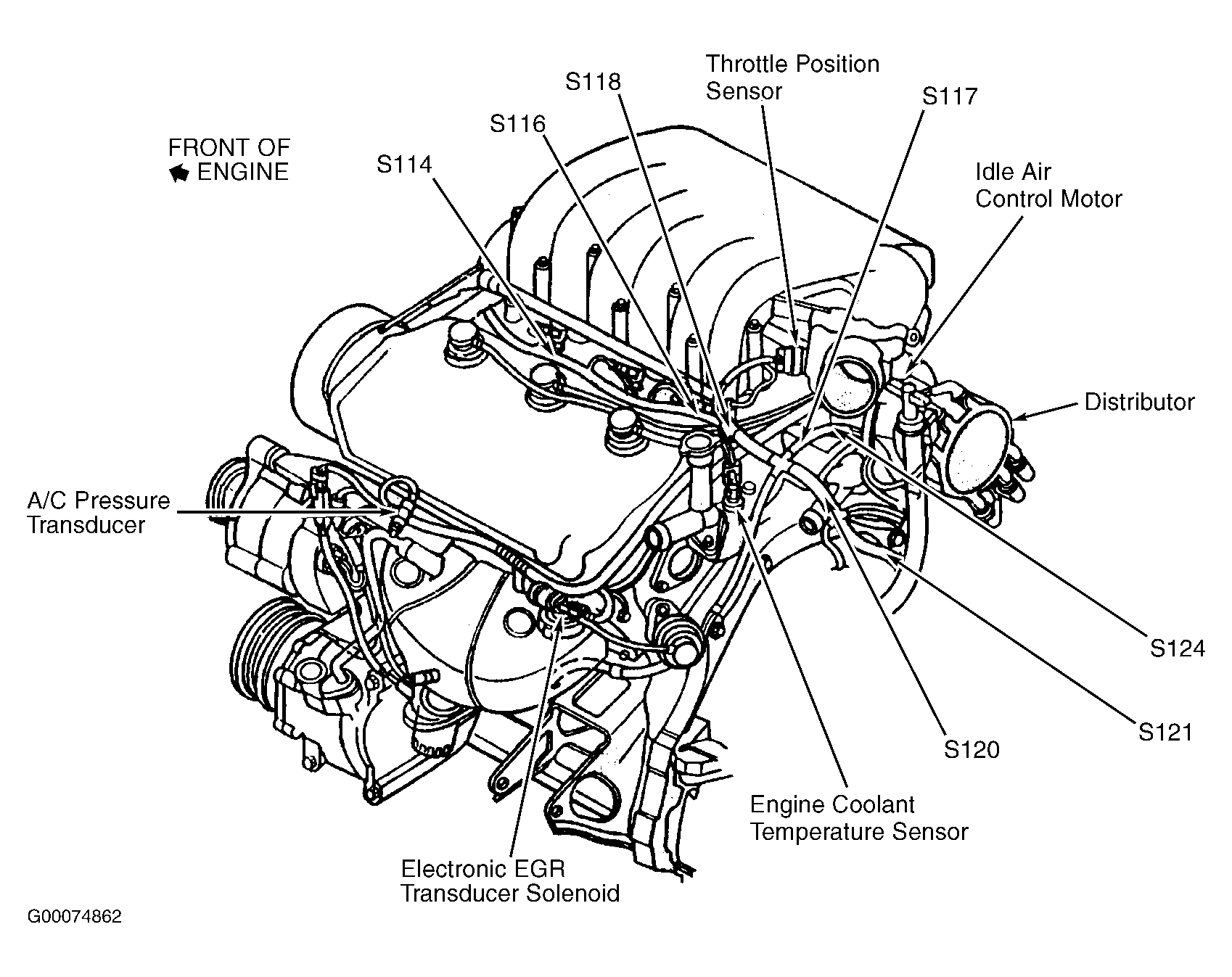

Fig 3: Top Of Engine

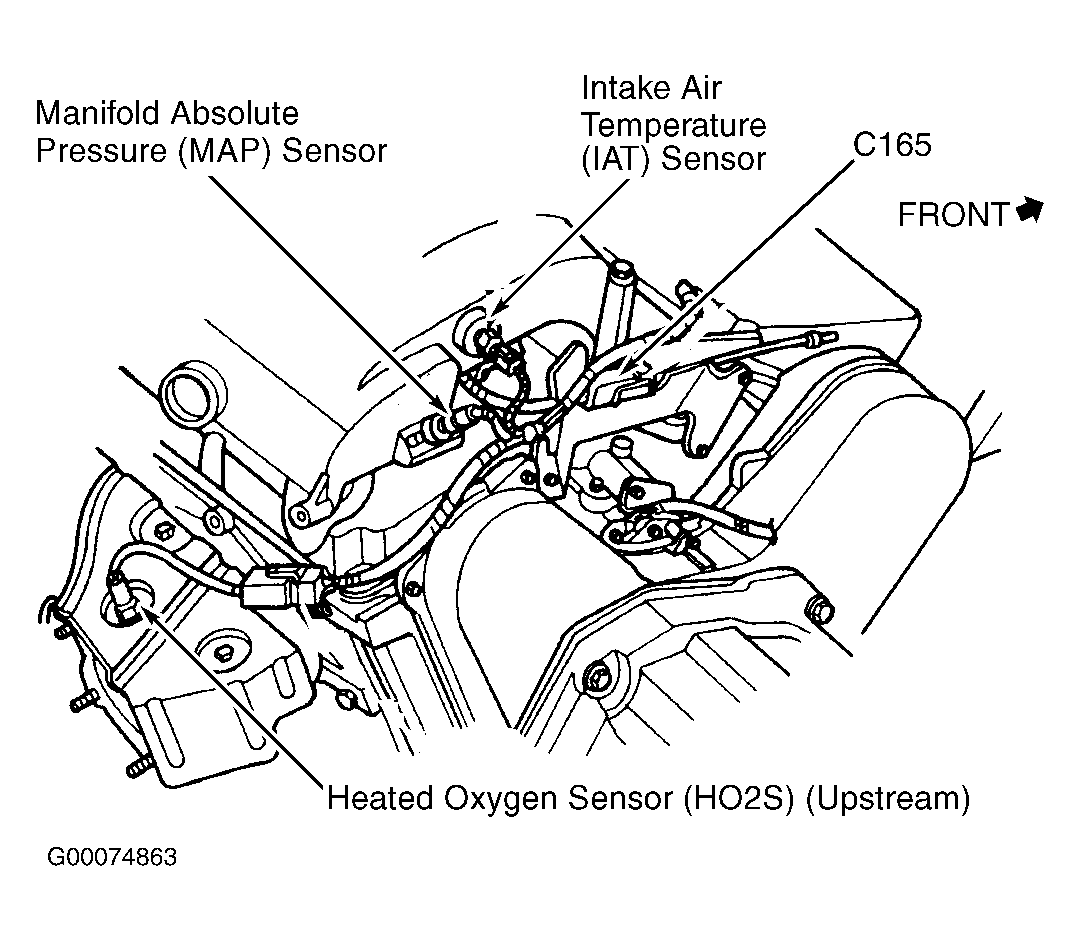

Fig 4: Front Of Engine

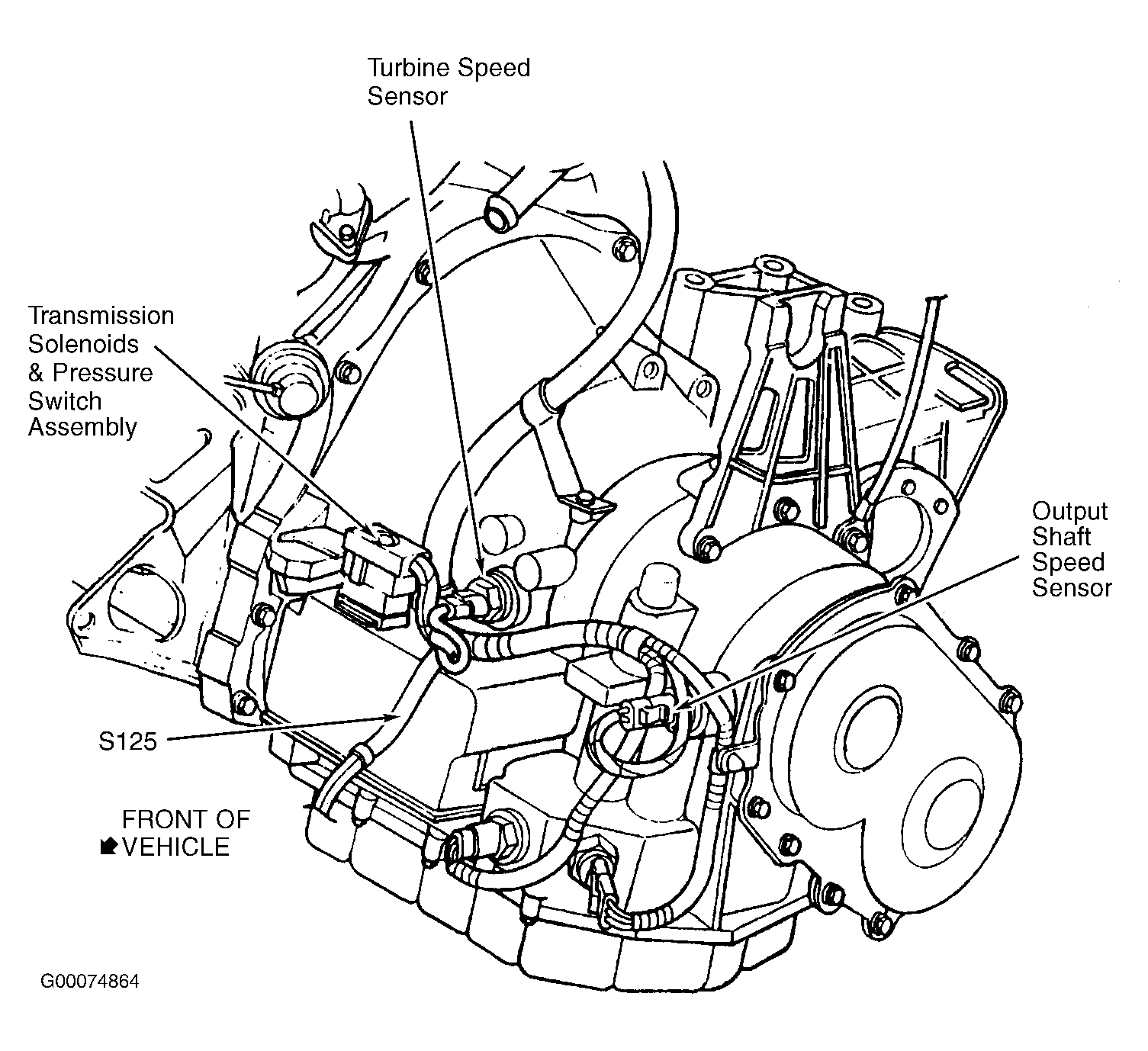

Fig 5: Left Side Of Transaxle
