Section 47 (Cruise Control Systems - Coupe)
›
Auto-Cruise Control System Diagnosis
›
Diagnostic Trouble Code Procedures
›
DTC 14 : Stoplight Switch System
›
Notes
DTC 14 : Stoplight Switch System: Notes
WARNING:
This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

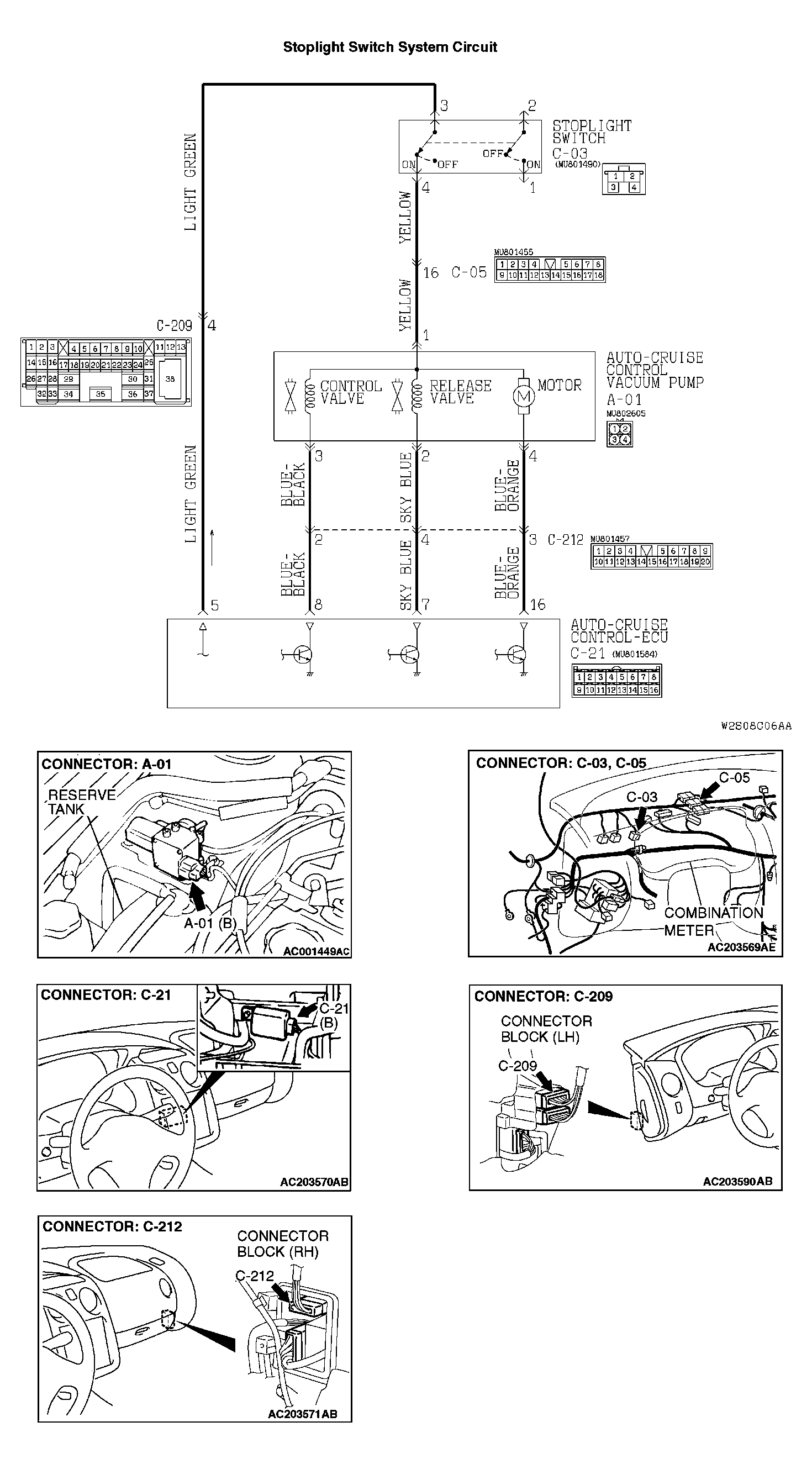

Fig 1: Stoplight Switch System Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORPORATION
