JB Relay Terminal Identification
›
Combination Flasher/DRL Module
Combination Flasher/DRL Module

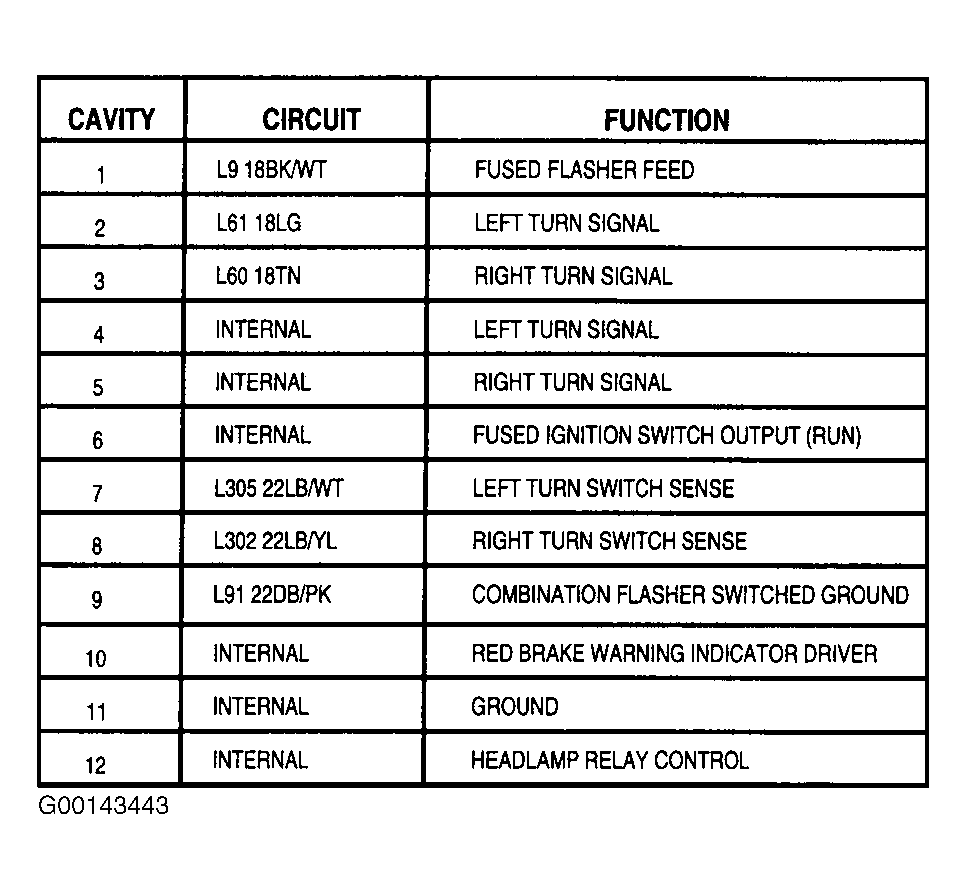

Fig 1: Identifying Combination Flasher/DRL Module Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
