Power Mirror Switch

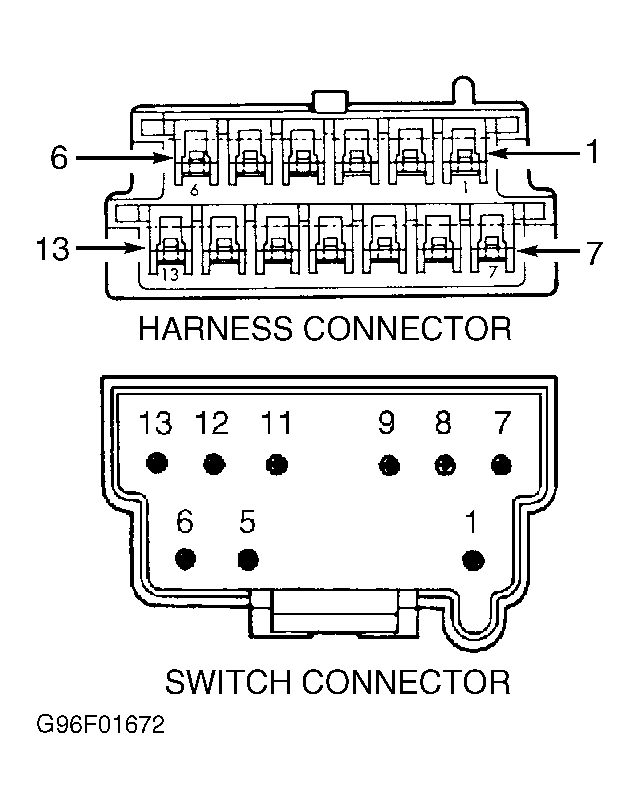

Remove power mirror switch and disconnect wiring connector. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between power mirror switch terminals with switch in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Figure . If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Continuity Between Terminals No. | |
|---|---|---|
| "L" (Left) | ||
| Up | 9 & 12; 6 & 11; 9 & 13 | |
| Down | 9 & 6; 12 & 11; 13 & 11 | |
| Left | 9 & 7; 6 & 11; 9 & 8 | |
| Right | 9 & 6; 7 & 11; 8 & 11 | |
| "R" (Right) | ||
| Up | 9 & 13; 1 & 11; 9 & 12 | |
| Down | 9 & 1; 13 & 11; 12 & 11 | |
| Left | 9 & 8; 1 & 11; 9 & 7 | |
| Right | 9 & 1; 8 & 11; 7 & 11 | |
| Illumination | 5 & 11 | |
