Front Wiper High/Low Relay
Front Wiper High/Low Relay

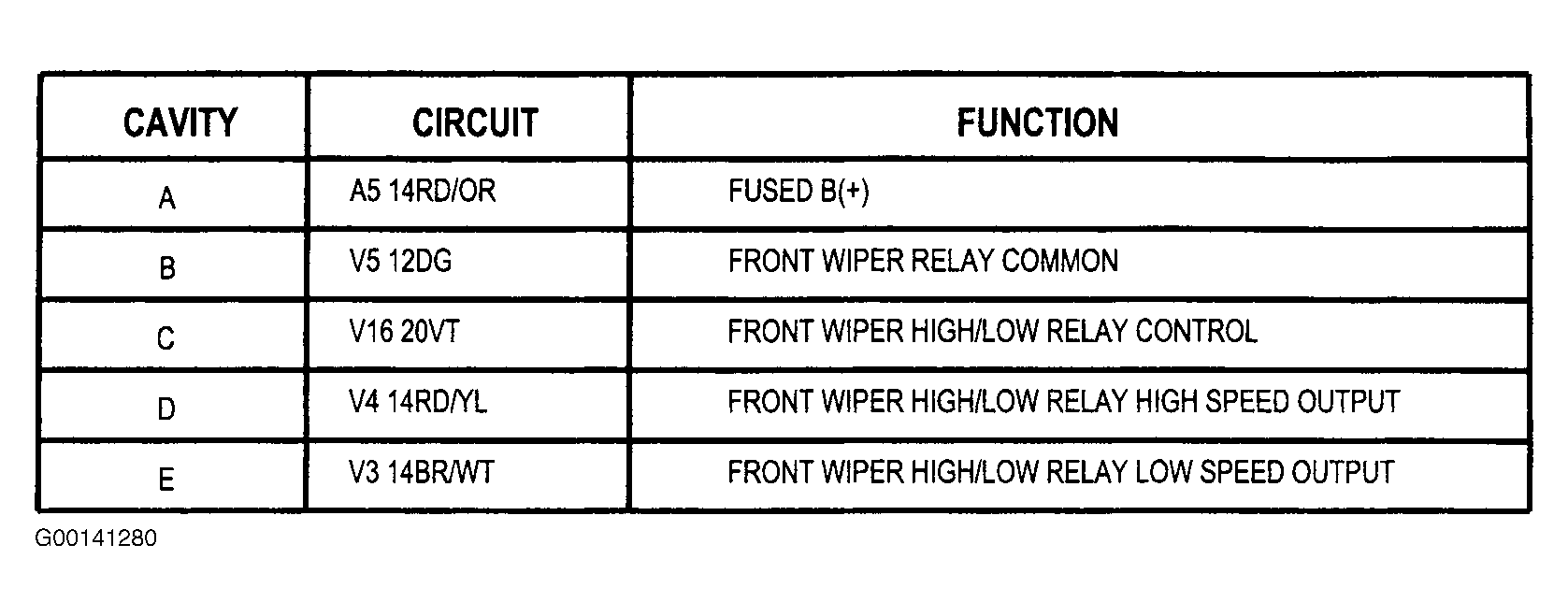

Fig 1: Identifying Front Wiper High/Low Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
