Connector Identification

NOTE: For identification of connectors and terminals, refer to appropriate illustration. See Fig 1-Fig 6

CONNECTOR IDENTIFICATION DIRECTORY

Connector	Illustration
Autostick Switch	Fig 1
Data Link Connector	Fig 2
Powertrain Control Module	Fig 3
Solenoid Pack	Fig 4
Transmission Control Module	Fig 5
Transmission Range Sensor	Fig 6

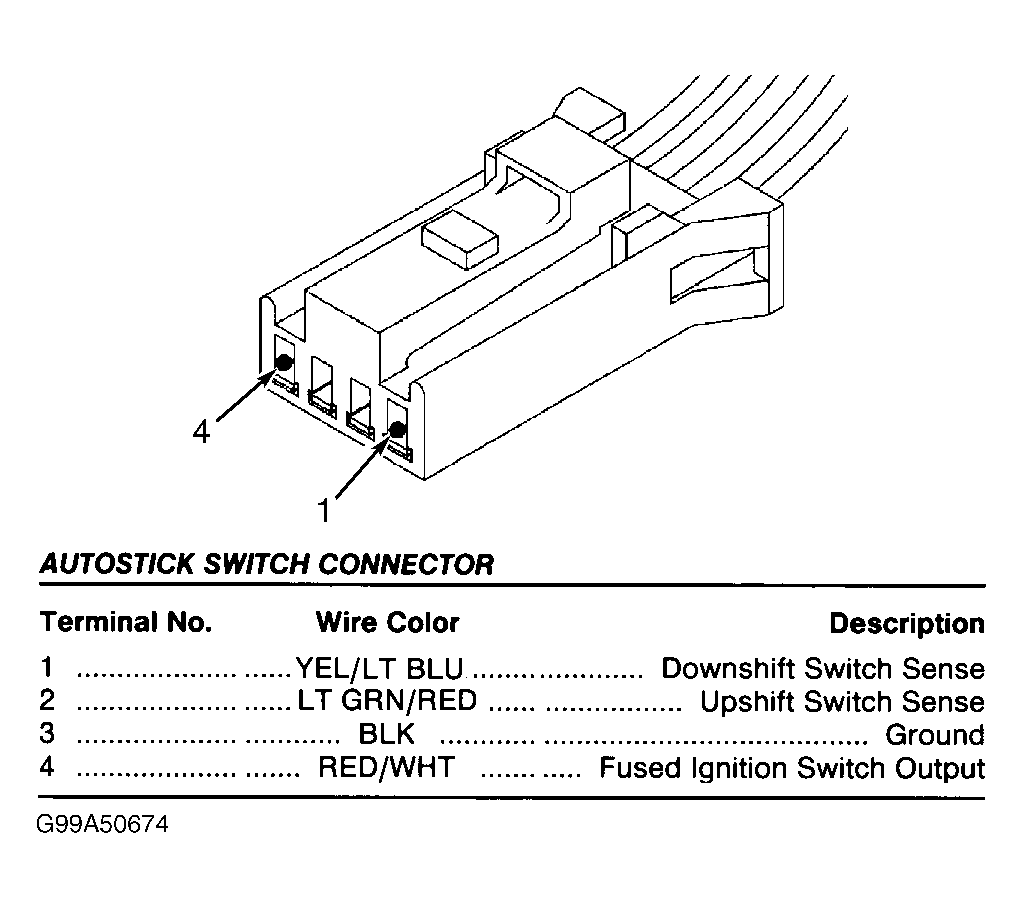

Fig 1: Identifying Autostick Switch Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Data Link Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Powertrain Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Solenoid Pack Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Transmission Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

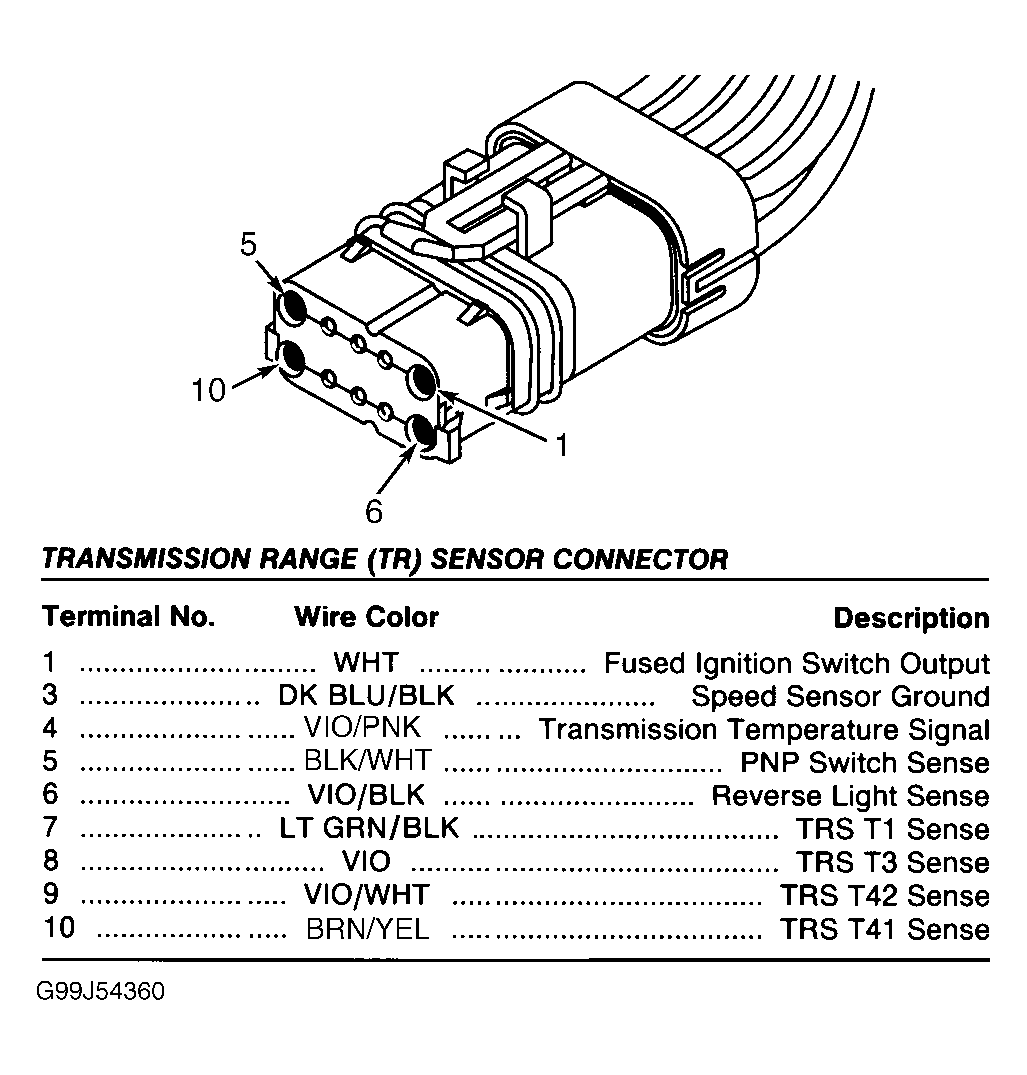

Fig 6: Identifying Transmission Range Sensor Connector Terminals

Courtesy of CHRYSLER CORP.
