A/C Compressor Clutch
A/C Compressor Clutch

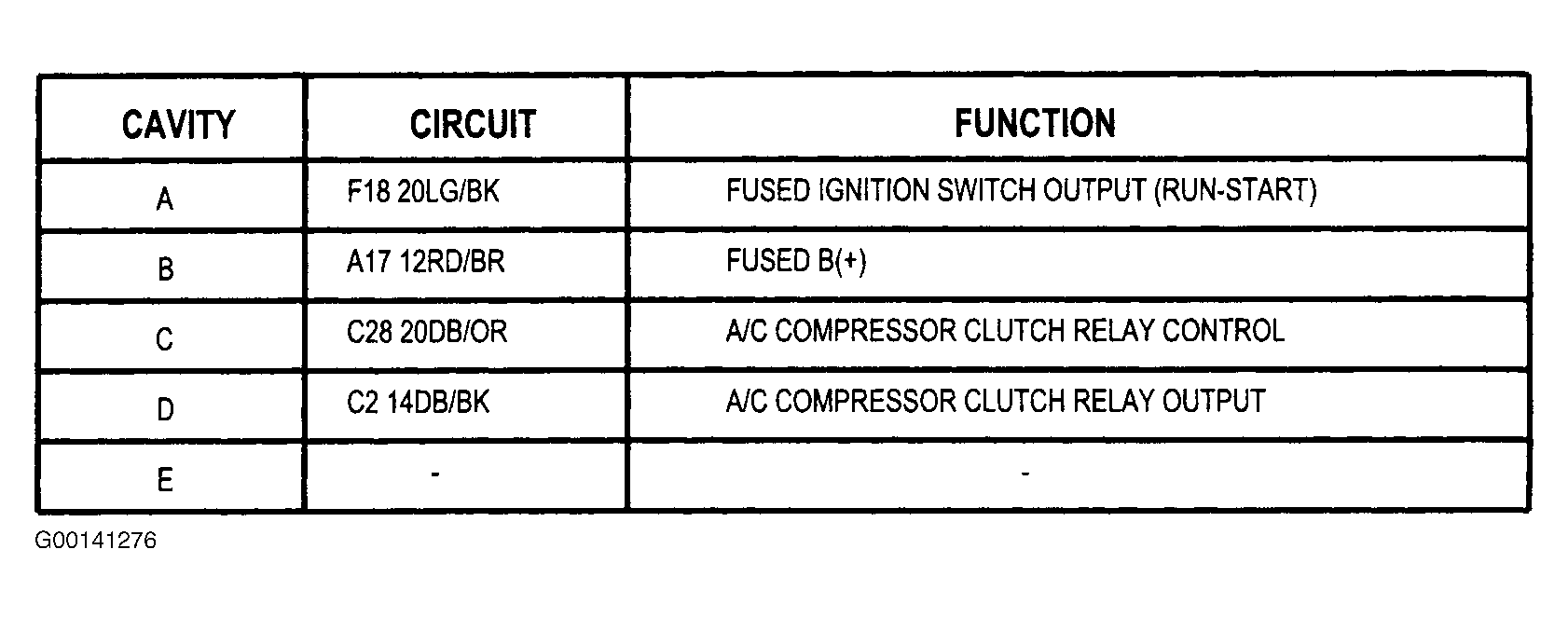

Fig 1: Identifying A/C Compressor Clutch Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
