Front Wiper On/Off Relay
Front Wiper On/Off Relay

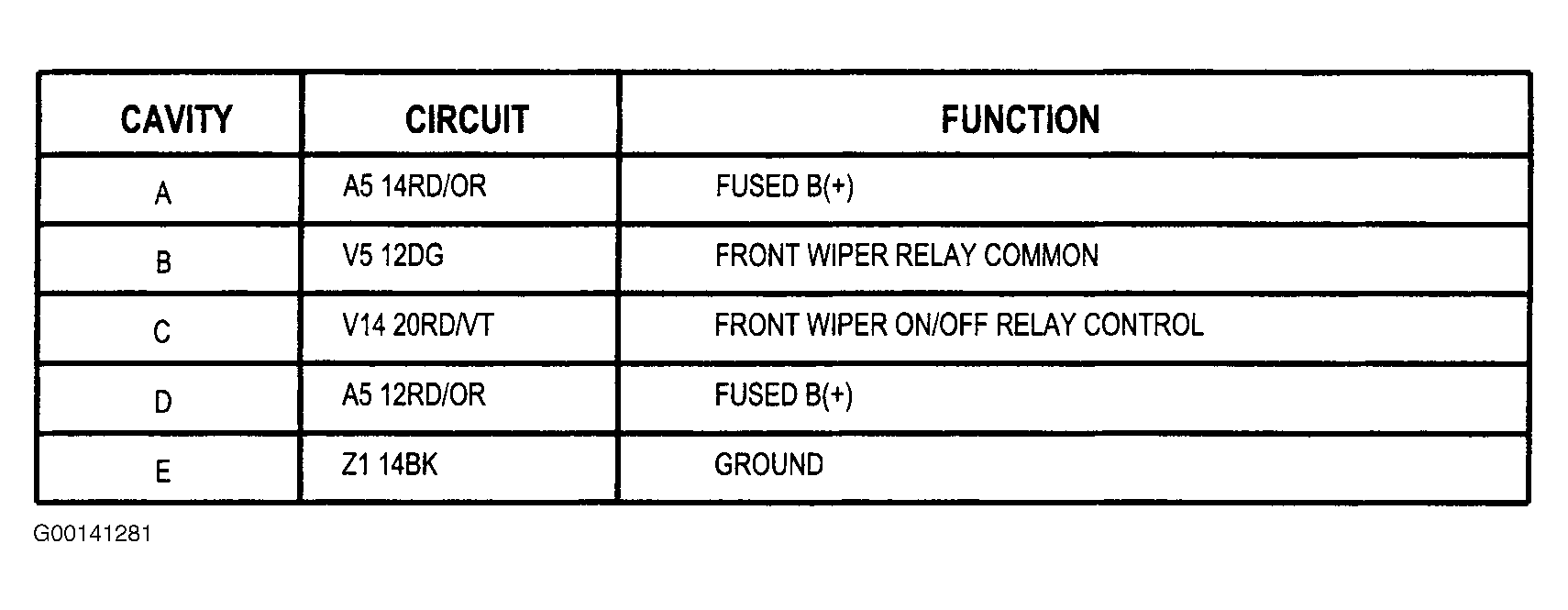

Fig 1: Identifying Front Wiper On/Off Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
