Vehicle Speed Sensor: Installation

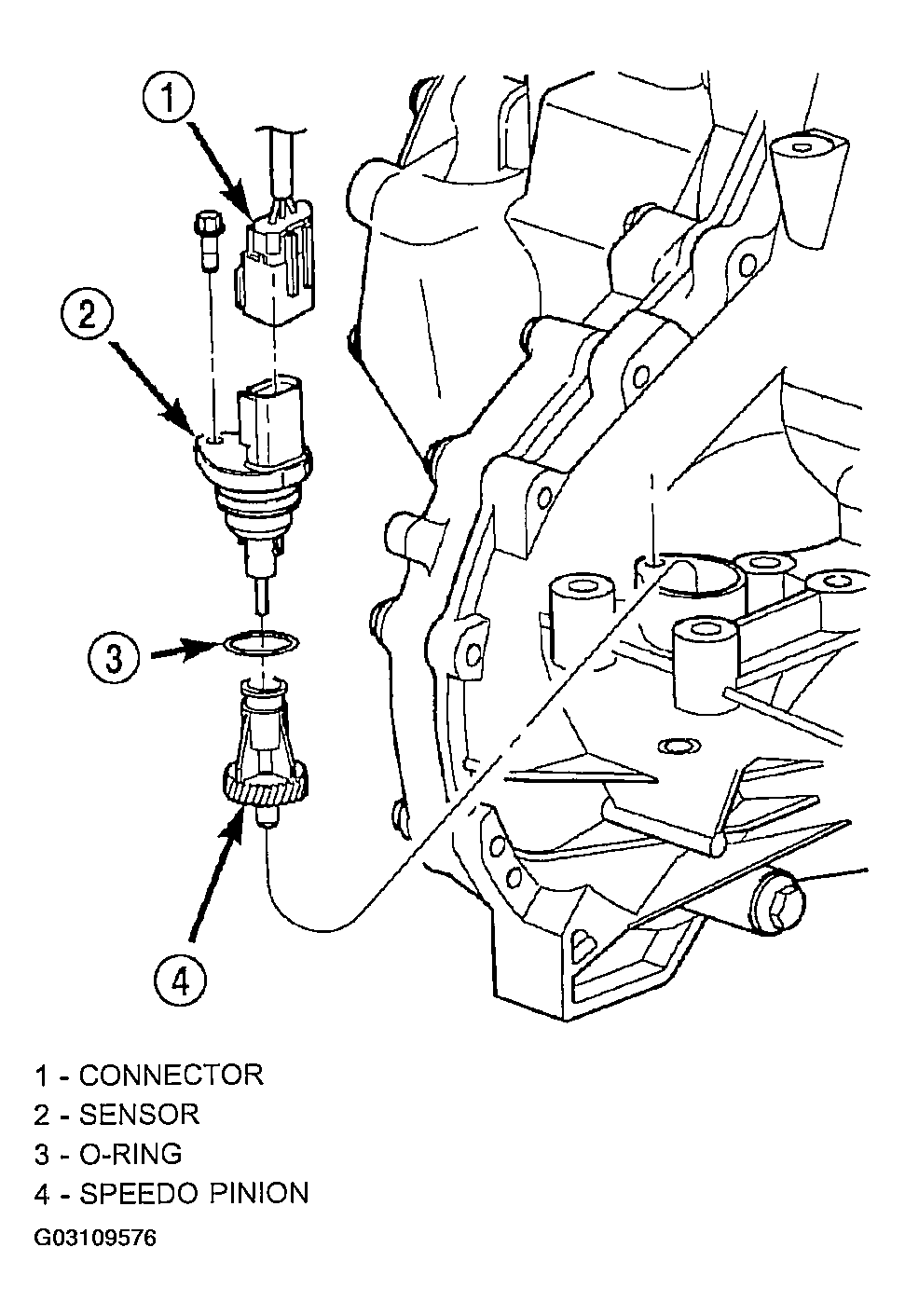

- Install pinion gear to speed sensor (see Figure
).
- Using a NEW o-ring, install the speed sensor to the transaxle (see Figure
).
- Install the bolt and torque to 7 N.m (60 INCH lbs.).
- Connect speed sensor connector (see Figure
).
- Lower vehicle and road test to verify proper speedometer operation.
