Powertrain Control Module (Pcm): Removal

  1. Remove body side panel.
  2. Remove 3 bolts from PCM bracket.

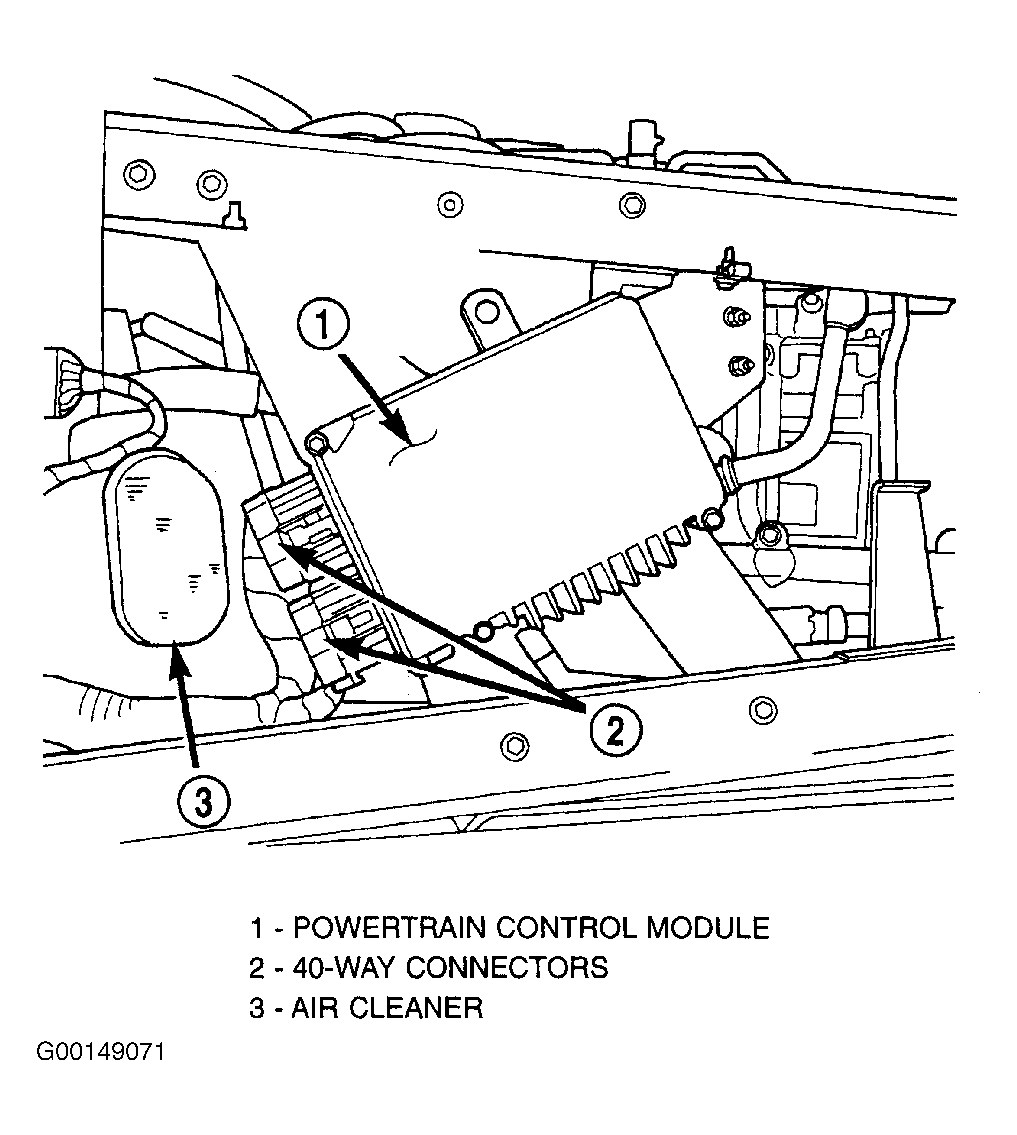

  3. Disconnect PCM 2 40-way connectors. See Figure .
  4. Remove PCM.
